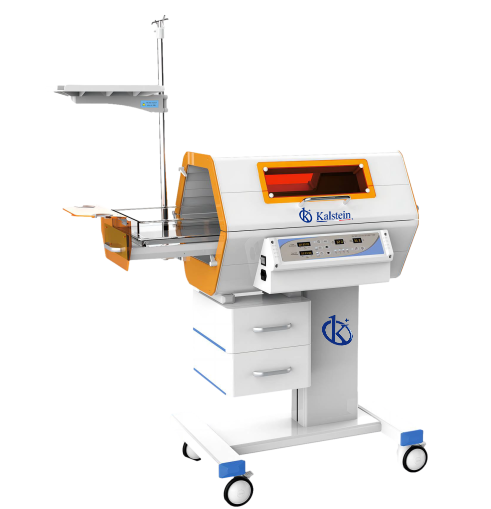

Infant Phototherapy Unit YR06223

ManufacturerKalstein

Description

  • Small size, light and high irradiation
  • LED Blue light as the radiant source is irradiating uniformly and efficient
  • Circle 360 double sides for more effective radiation
  • Two phototherapy mode: up side phototherapy and down side phototherapy, can be use separately
  • The electronic ballast makes the power supply adaptable and the power factor high
  • Therapy time of phototherapy units from up and down side are displayed separately
  • Automatically record each therapy time and total used therapy time
  • Air temperature and skin temperature separately displayed
  • Power off memory, sincere key for alarm, key-locking and self-examination function
  • Four alarm functions for safety: Power failure, probe failure, over temperature, fan failure
  • It is convenient to know the therapy of the infant through observation ports on both sides
  • Adopt air spring structure and the hood is easy to open and close
  • The aluminum-magnesium alloy is applied on the base, with two drawers and tray
Technical Specifications
Model YR06223
Power supply AC220V±10%, 50Hz±2%
Power input ≤400VA
Blue light wavelength 420nm~490nm
Circle 360 light radiation 3700μW/cm2
Up side light radiation 3300μW/cm2
Down side light radiation 2400μW/cm2
Life span of blue light tube ≥20000 hours
Air temperature display range 0-45.0°C
Skin temperature display range 0-45.0°C
Time accuracy 1min/2h
Count-up time range 0-99.9 hours
Count-down time range Imin~99.9 hours
Total cumulative time 0-999999 hours
Mattress size 613×300mm
Ambient temperature 18°C ~ 30°C
Relative humidity 30%~75%
Atmospheric pressure 700hpa~1060hpa

Additional information

Weight 80 kg
