Precision Colorimeter YR05511

ManufacturerKalstein

Description

Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, YR05509 // YR05513 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

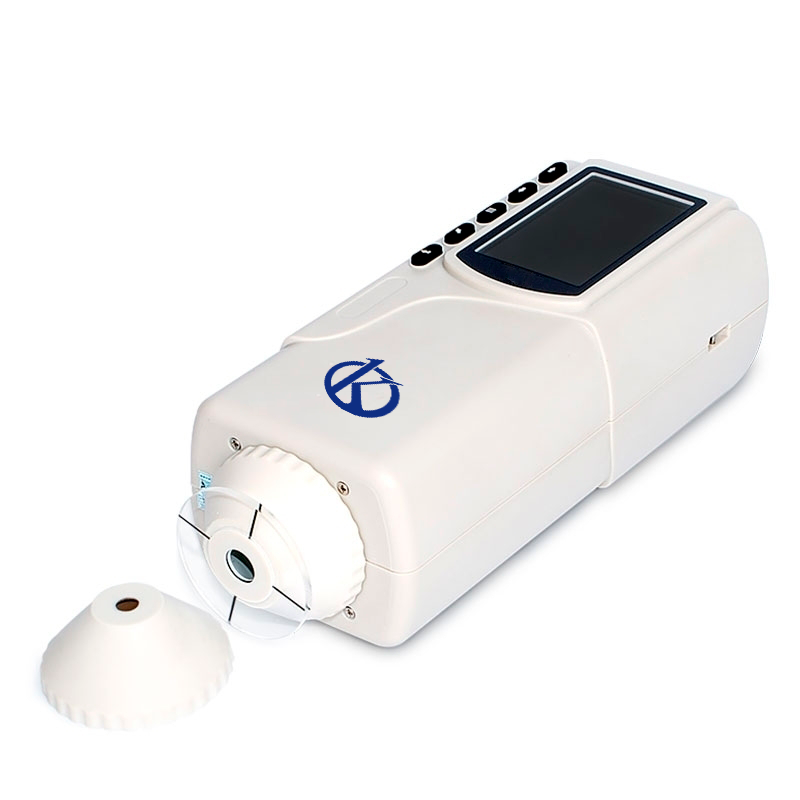

  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.

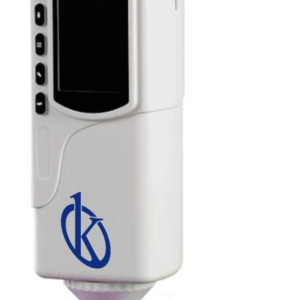

  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
Model YR05511
Illuminating/Viewing Geometry 45°/0°
Measuring Aperture Φ8mm
Measurement End-face Large stable end face and small concave-convex end face
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Color Space CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight 500g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time The first charging time is 8 hours–100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer

Additional information

Weight 2 kg
