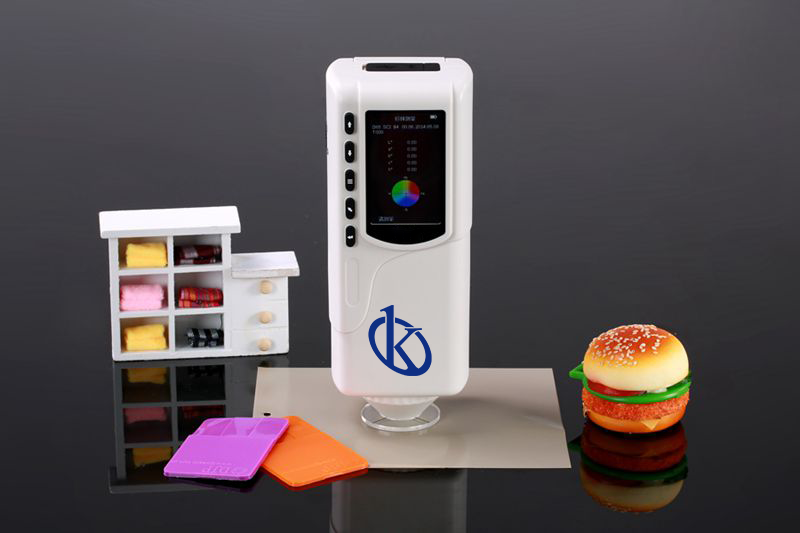

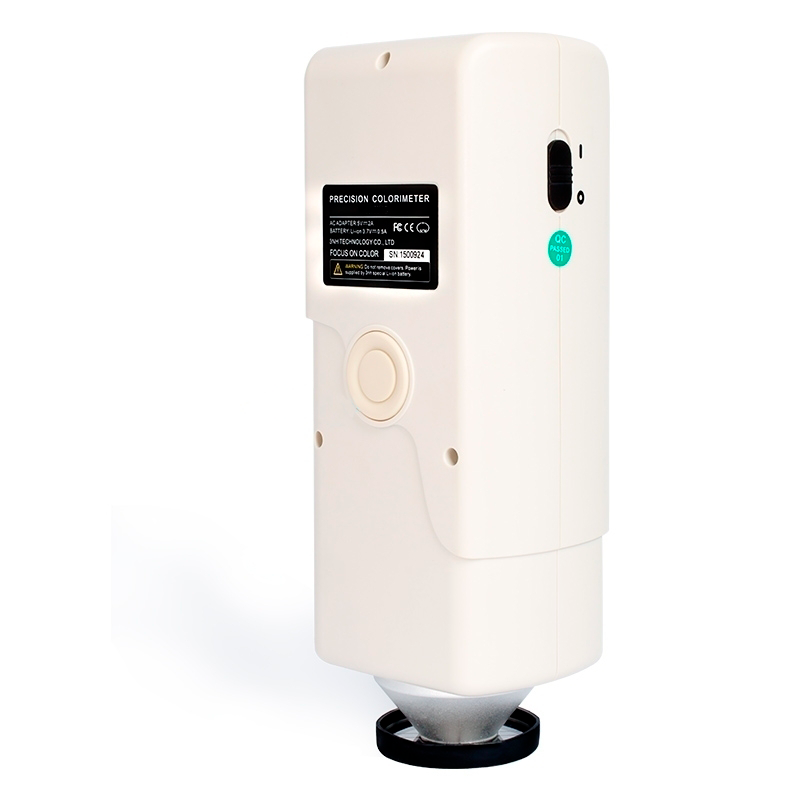

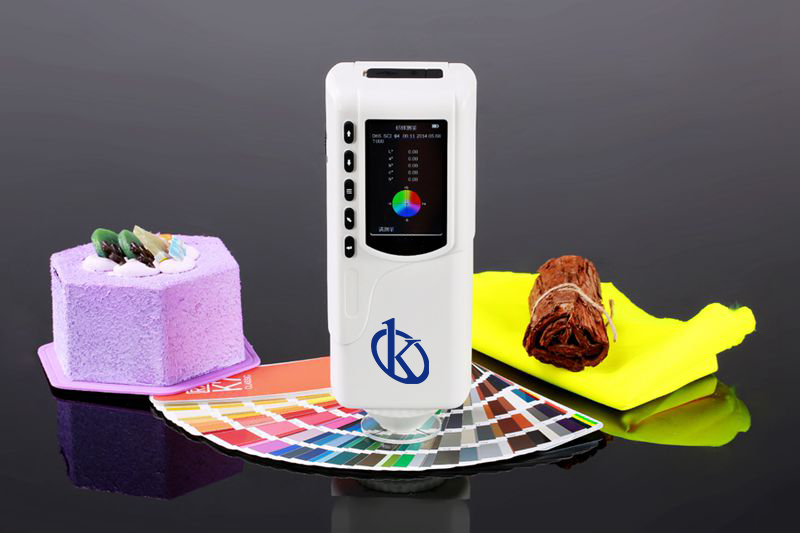

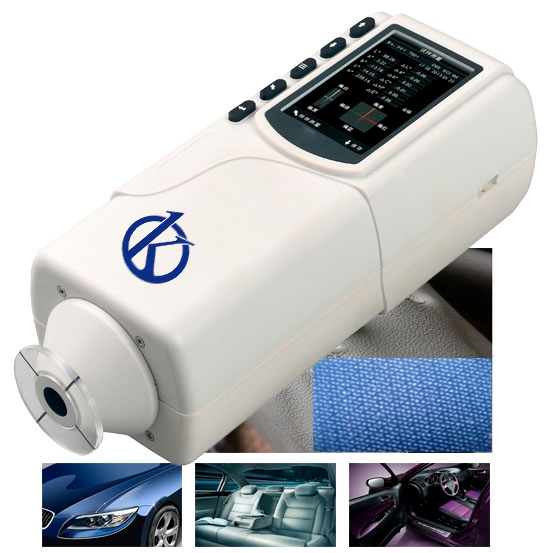

High cost-effective Portable Colorimeter YR05515

ManufacturerKalstein

Description

Kalstein team concentrates on customer needs and develops a new serie  YR05515 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, YR053441 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

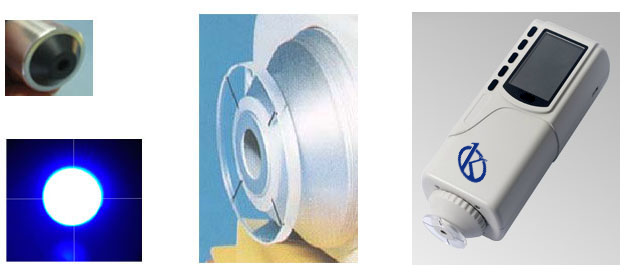

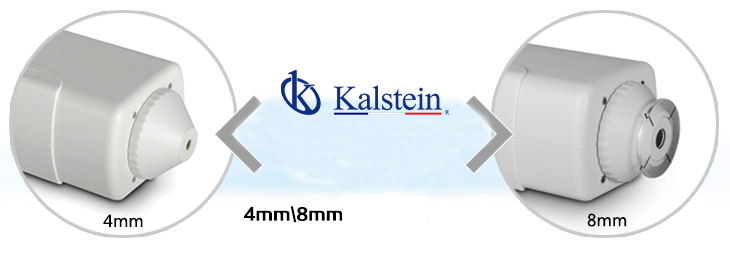

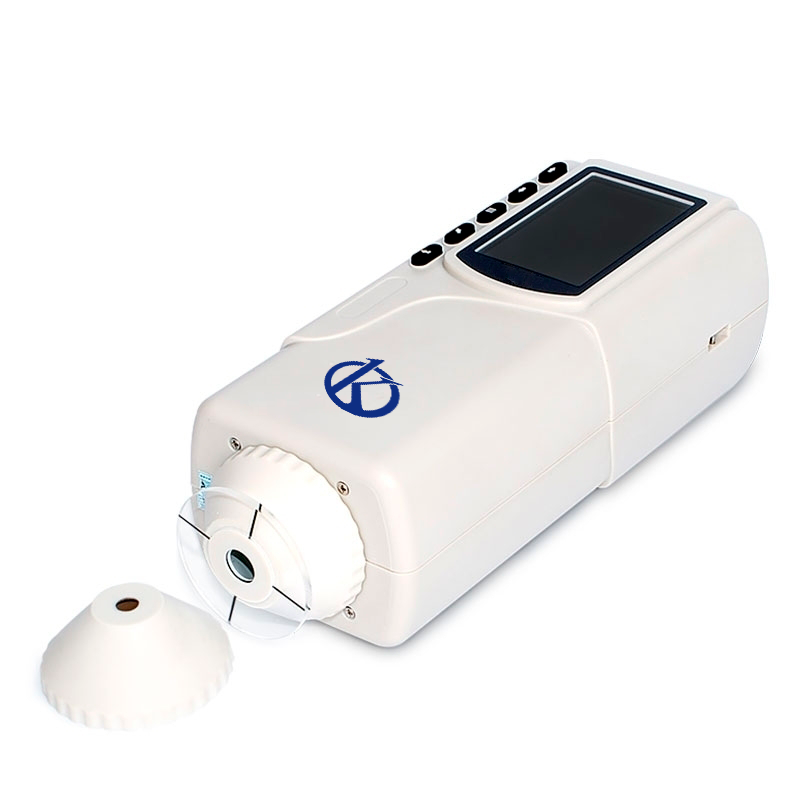

  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
Model YR05515
llluminating / Viewing Geometry D/8°
Standard CIE No.15, GB/T 3978
Sensor silicon photodiode
Measuring Aperture  4mm
Color Space CIE LAB, Lch
Observer CIE 10°
Illuminant D65
Display Data Colorimetric Value,
Color Difference Value Storage
temperature /Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.5 s
Repeatability  ΔE*ab ≤ 0.03 (Average of 30 measurements
of standard white plate)
Dimension 205*67*80mm
Errors between each instrument  ΔE*ab 0.4
Weight 400g
Battery rechargeable lithium-ion
battery 3. 7V@ 3200mAh
Lamp Life  5 years, more than 1.6 million measurements
Screen TFT 2.8 inch(16: 9)

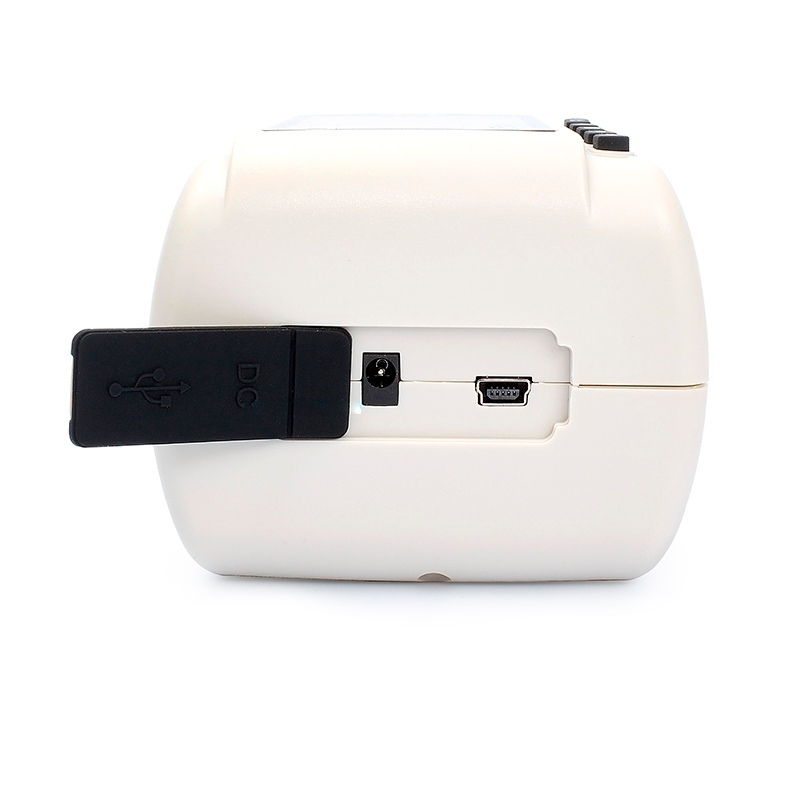

Interface USB
Storage 100 Standards,
10000 Samples
Operating Temperature 0-40°C(32-104°F)
Storage temperature  -20-S0°C(-4-122°F)
Optional accessory miniature thermal
printer, powder test box

Additional information

Weight 1 kg
