Description

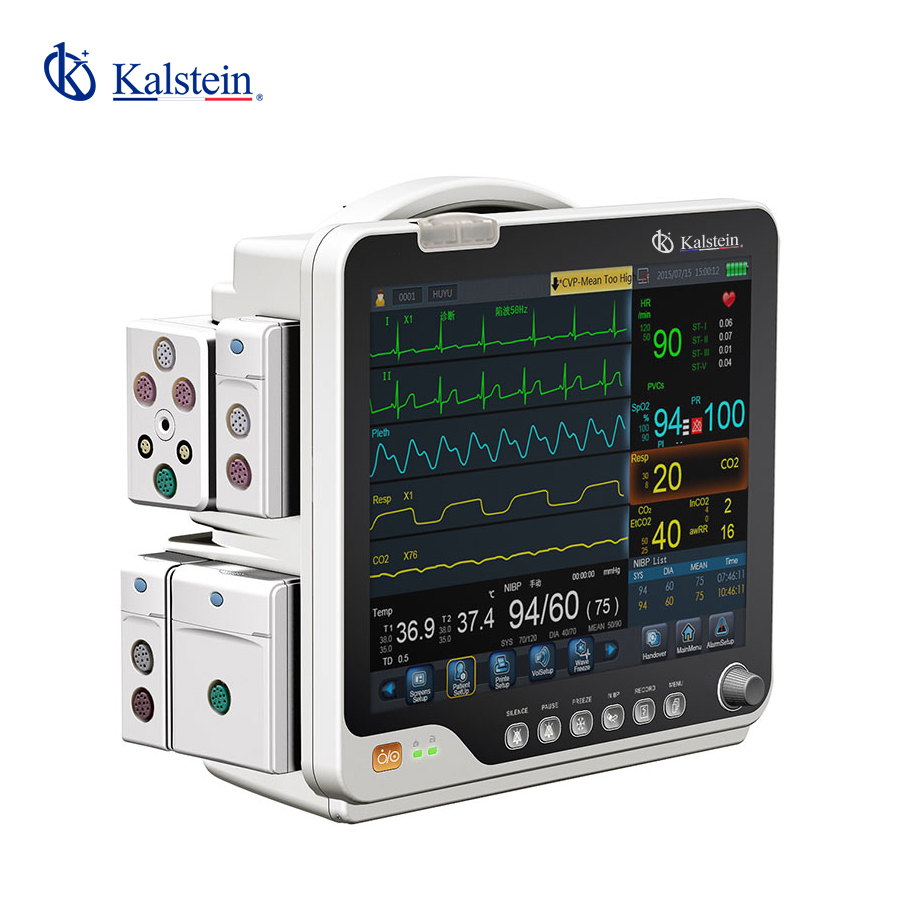

The Patient Monitors YR02176 is an advanced medical device designed to deliver precise and comprehensive monitoring solutions, ideal for operating theaters (OT) and intensive care units (ICU). With its 15-inch LCD screen, this full modular parameter monitor supports standard measurements including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. Whether it’s the standard 5-lead ECG or optional features like Masimo/Nellcor SpO2 and EtCO2, this monitor adapts to the precise needs of any medical setting. Its versatility ensures it meets the rigorous demands of modern healthcare environments.
Market Price
Patient monitors like the YR02176 generally fall within a price range of $4,200 to $5,000 USD, depending on the additional options and configurations. This price range ensures you’re receiving a robust and reliable piece of equipment, ready to handle the critical monitoring tasks in high-pressure medical environments. For a detailed quote or to customize your purchase, contact us today or utilize the Kalstein Plus platform to automatically generate a quote.
Frequently Asked Questions
What are the standard parameters measured by the monitor? The YR02176 measures ECG, SPO2, TEMP, NIBP, RESP, and PR/HR.
Can additional features be added? Yes, optional configurations such as Masimo/Nellcor SpO2, Dual-IBP, and thermal recorders are available.
Where can this monitor be used? It is suitable for use in Operating Theaters (OT) and Intensive Care Units (ICU).
Advantages and Disadvantages
The major advantage of the YR02176 is its comprehensive monitoring capability with modular options for expanded functionalities. It boasts high accuracy and reliability essential in critical care settings. However, its complexity might require thorough training for some medical staff unfamiliar with modular systems.
Product Use in the Field
In practical scenarios, the YR02176 excels in continuously monitoring vital signs seamlessly in critical care and surgical environments. It provides real-time data, allowing healthcare professionals to make timely and informed decisions. Its modular nature makes it perfect for tailored monitoring solutions.
Recommendations
To maximize the potential of the YR02176, regular calibration and maintenance are essential. Staff training ensures that the monitoring system is used effectively and reduces the risk of user error. Make use of the Kalstein Plus platform for ongoing support and updates.
Features
- 15-inch LCD screen for clear data visualization.
- Standard and optional monitoring parameters to suit diverse medical needs.
- High-resolution ECG and SPO2 waveform displays.
- Multiple communication interfaces for data transfer.
Technical Specifications
| Model | YR02176 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
