Doppler Fetal Monitor YR02180
Doppler Fetal Monitor YR02180 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

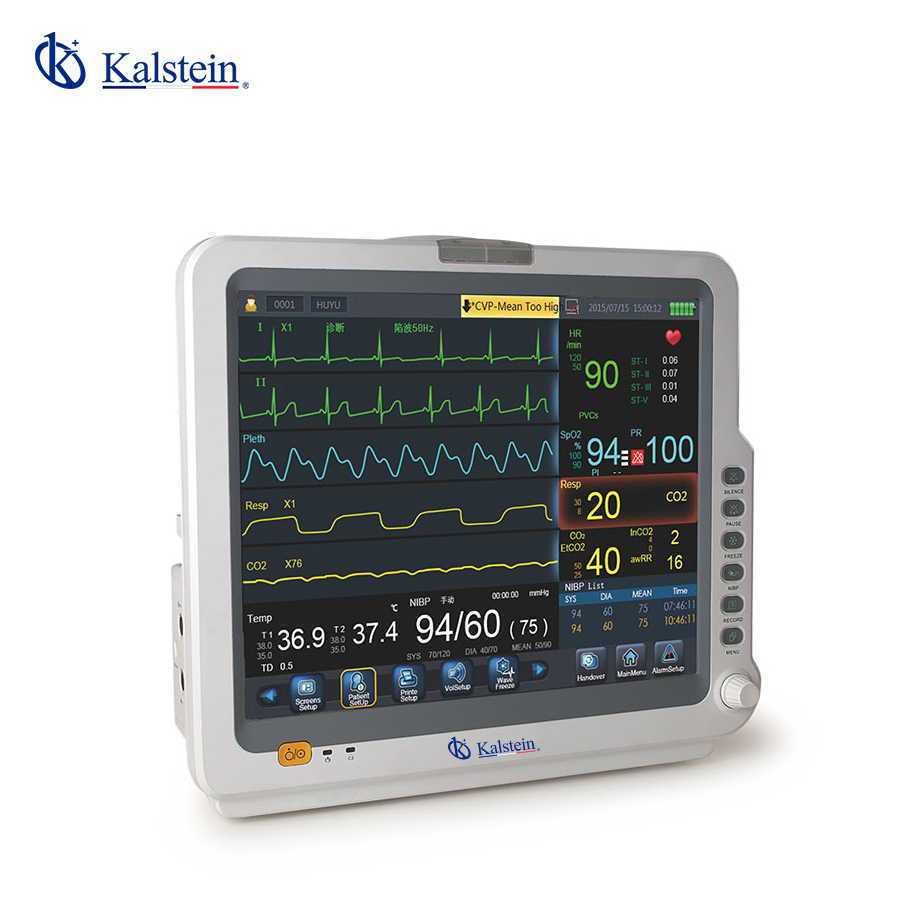

The Doppler Fetal Monitor YR02180 is a highly versatile and advanced patient monitoring device, ideal for use in operating theatres (OT) and intensive care units (ICU). With a 17-inch LCD screen and semi-modular parameters, this monitor provides comprehensive monitoring with six standard parameters, including ECG, SpO2, TEMP, NIBP, RESP, and PR/HR. This device offers optional features like a touch screen, extended ECG leads, and various mounting solutions, making it adaptable for different clinical settings and requirements.
Market Price
The price range for the Doppler Fetal Monitor YR02180 in the market generally falls between $3,500 and $4,200, depending on the specific configuration and optional features selected. This competitive pricing reflects the device's advanced capabilities and robust design, making it a smart investment for healthcare facilities looking to enhance their patient care services.
Frequently Asked Questions
What are the standard parameters included with the monitor? The monitor comes with six standard parameters: ECG, SpO2, TEMP, NIBP, RESP, and PR/HR.
Can the monitor be configured for different clinical settings? Yes, it offers a range of optional features such as a touch screen, additional ECG leads, and mounting options to suit various clinical environments.
Advantages and Disadvantages
Advantages: The Doppler Fetal Monitor YR02180 is versatile and can be customized per the clinical need, making it suitable for multiple patient monitoring scenarios. Its comprehensive parameter set ensures thorough patient data capture.
Disadvantages: The initial setup and configuration might require some technical know-how, and accessing certain optional features could incur additional costs.
Field Use
In practical terms, the Doppler Fetal Monitor YR02180 is well-suited for critical care environments such as ICUs, where continuous and accurate patient monitoring is essential. The device's semi-modular nature allows for easy adaptation to different clinical needs, ensuring that healthcare professionals can rely on it for diverse patient monitoring requirements.
Recommendations
To maximize the functionality of the Doppler Fetal Monitor YR02180, ensure regular calibration and maintenance as per the manufacturer's guidelines. It's also advisable to familiarize healthcare staff with the device through training sessions to fully utilize its capabilities.
Features
- 17-inch LCD screen with semi-modular configuration
- Standard parameters: ECG, SpO2, TEMP, NIBP, RESP, PR/HR
- Optional features: Touch screen, extended ECG leads, mounting solutions
- Designed for use in OT and ICU environments
Technical Specifications
| Model | YR02180 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Gain | x250, x500, x1000, x2000 | |
| Accuracy | ±5% | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -1.0~+1.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 40~240bpm |
| Accuracy | ±3bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 7~120BrPM | |
| Neo/Ped | 7~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
NIBP | Method | Oscillometric |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm / 40~150bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~99% (±2%) | |
| Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
Technical specifications
| Dimensions | L 57 × W 39 × H 53.5 cm |
|---|---|
| Weight | 8 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Doppler Fetal Monitor YR02180?
To know the price of Doppler Fetal Monitor YR02180, please send us an email with your request through the contact form AQUI.
What are the delivery times for Doppler Fetal Monitor YR02180?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Doppler Fetal Monitor YR02180?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Doppler Fetal Monitor YR02180?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Doppler Fetal Monitor YR02180?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
