Description

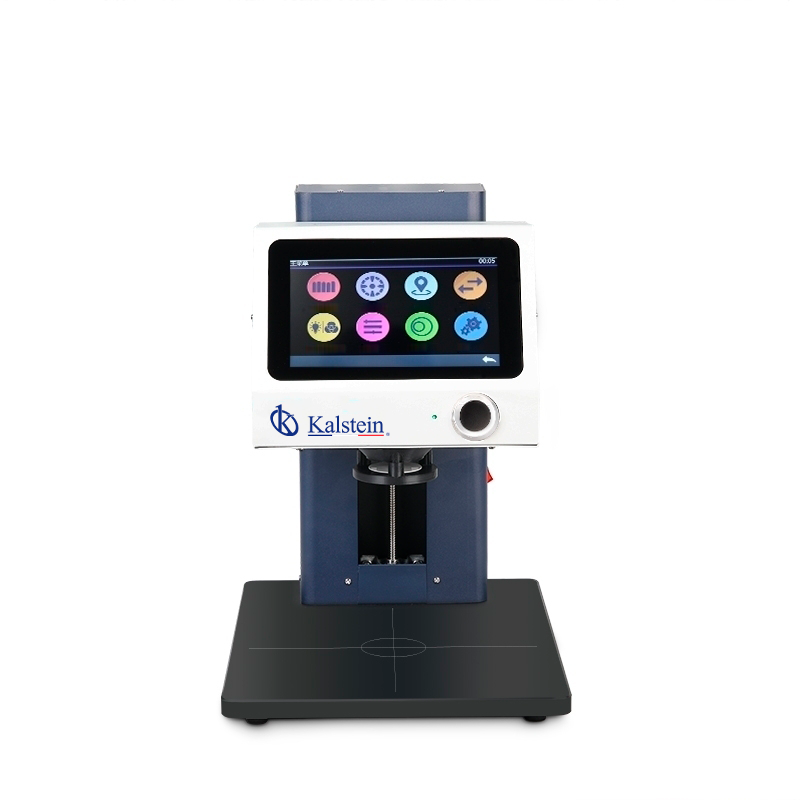

The NR05482 Non-contact Benchtop Spectrophotometer is a cutting-edge instrument by Kalstein designed for precise color measurement using a 45/0 optical geometry, which includes 45° ring illumination and vertical viewing. It provides non-contact analysis across a range of samples such as liquids, sauces, powders, and delicate materials, thereby minimizing potential contamination and damage. Equipped with a comprehensive LED and ultraviolet light source, it delivers high accuracy and stability. Its dual-array 256-pixel CMOS sensor and concave grating technology allow for superior optical resolution and detailed color data analysis.
Market Price
The NR05482 Non-contact Benchtop Spectrophotometer is positioned within a competitive market range, generally between $11,000 and $11,450 USD, reflecting its advanced technological capabilities and precision. This investment is ideal for industries where color analysis and quality control are critical, such as cosmetics, food manufacturing, plastics, and ceramics. For customized pricing and specifications tailored to specific needs, clients can easily request a quote using the Kalstein Plus platform.
Frequently Asked Questions
- Is the NR05482 suitable for fluorescent samples?
Yes, this spectrophotometer is engineered to measure fluorescent samples with high accuracy. - How much data storage is available?
The device can store 50,000 data records: 40,000 in sample mode and 10,000 in continuous statistics mode. - Can the sample height be adjusted?
Indeed, the measurement head adjusts automatically according to the sample height, and configurations can be saved for future use.
Advantages and Disadvantages
The key advantages of the NR05482 include its non-contact design, preventing sample damage and contamination, and its compatibility with various light sources and color spaces. The intuitive 7-inch touch screen interface supports real-time operations. However, periodic calibrations might be necessary to maintain precision, especially in high-usage environments.
Field Use
The NR05482 is perfect for use in research and development labs and automated production lines that require precise color assessment of products like cosmetics, foods, inks, and electronic components. Its ability to evaluate color in both stationary and moving samples, including those that are fluorescent, enhances quality control processes across various sectors.
Recommendations
To optimize the performance of the NR05482, regular calibrations are suggested, and the unit should operate in a clean, controlled environment. Adjusting the height and setting the measurement mode according to sample specifics ensures the most accurate and consistent outcomes. Interested parties are encouraged to request a personalized quote through Kalstein Plus to discover how the NR05482 can revolutionize quality control procedures with high-precision measurements.
Features
- Non-contact measurement to minimize contamination risks
- Comprehensive LED and UV light source for precision
- Dual-array CMOS sensor and concave grating for detailed resolution
- Automated sample height adjustment with memory settings
- 7-inch touch screen interface for enhanced user experience
- Data storage capacity for up to 50,000 measurements
Technical Specifications
| Model | YR05482 |
| Illumination system | 45/0 method (45 ring-shaped illumination, vertical viewing); conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 |
| Features | The 45/0 non-contact benchtop spectrophotometer can achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines. It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics, and other industries, and also for fluorescence sample measurement. |
| Light Source | Full spectrum LED light, UV light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700 nm/10 nm output |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20 mm (can be customized < 20 mm) |
| Non-contact Distance | 7.5 mm |
| Sample Height | 0~150 mm |
| Distance Adjustment Method | Manual adjustment and automatic adjustment (test height can be stored) |
| Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
| Locating Method | Camera Locating |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s |
| Data Storage | Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000 |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: Within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement (2 ~ 99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display Screen | 7″ TFT Capacitive Screen-touch Display |
| Data Port | USB/RS-232, Bluetooth® 4.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity, |
| Notes | The specifications are subject to change without notice. |
