Non-contact Benchtop Spectrophotometer YR05483
Non-contact Benchtop Spectrophotometer YR05483 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

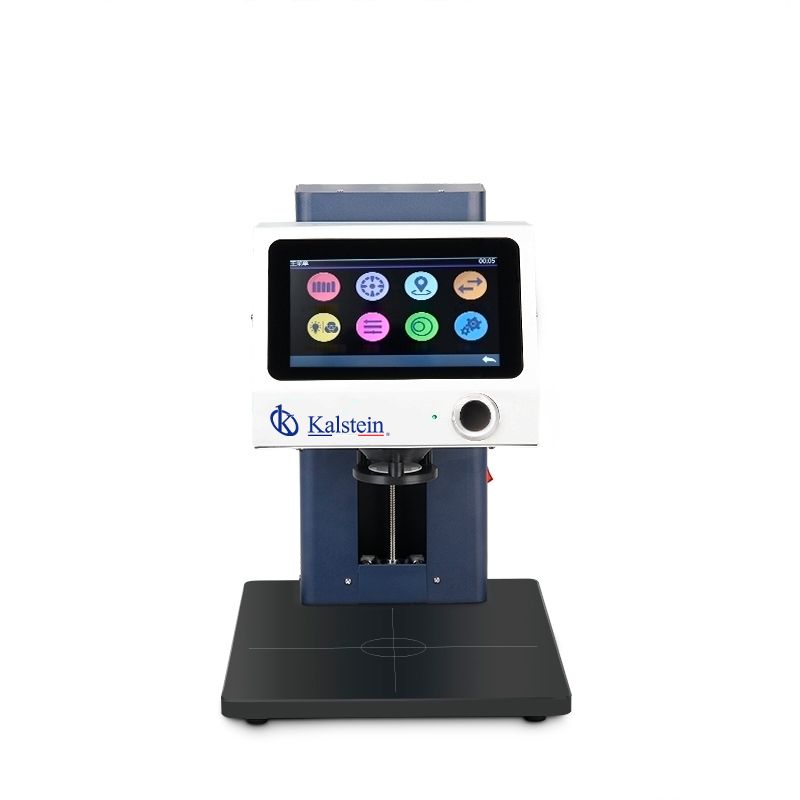

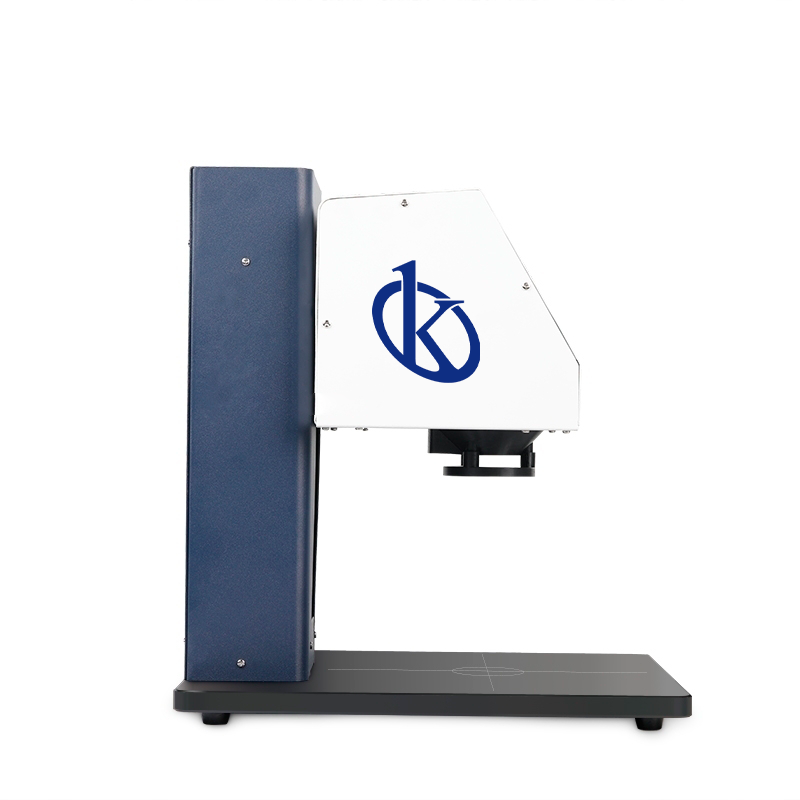

The Non-contact Benchtop Spectrophotometer YR05483 by Kalstein is a sophisticated tool designed to provide users with accurate color measurements without the need for direct contact with the sample. Utilizing 45/0 optical geometry, it is ideal for analyzing liquids, sauces, powders, and other delicate materials that are prone to damage or contamination. The device is equipped with a full-spectrum LED light source and a 256-element CMOS sensor, delivering high precision and stability in every measurement. Its easy-to-use 7-inch TFT touch interface displays real-time data, making it beneficial for quality control in both research and development laboratories and automated production lines.
Market Price
The YR05483 spectrophotometer is offered at a competitive market price, typically ranging from $10,200 to $10,900 USD, contingent on the chosen configurations and accessories. This investment is ideal for businesses prioritizing precision in color analysis in industrial or laboratory settings. To explore a customized quote tailored to your specific requirements, visit the Kalstein Plus platform, where you can request a detailed and obligation-free quote.
Frequently Asked Questions
- Is it suitable for measuring liquids and powders?
Yes, the YR05483 is designed for accurate, non-contact measurements on liquids, powders, and other delicate materials. - How much data storage capacity does it have?
It can store up to 40,000 measurements, with 30,000 dedicated to sample mode and 10,000 for continuous statistics mode. - How accurate is the measurement?
The measurement repeatability is highly reliable, with a chromaticity value deviation within ΔE*ab 0.05.
Advantages and Disadvantages
The YR05483 spectrophotometer shines with its non-contact measurement capabilities, preventing sample damage or cross-contamination. Its adjustable design accommodates different sample heights, and its data storage and varied measurement modes enhance its versatility. However, in high-use environments, regular calibrations are recommended to maintain top measurement accuracy.
Field Use
Ideal for industries such as cosmetics, food, plastics, ceramics, and more, the YR05483 is essential for analyzing the color of sensitive or moving products. Its advanced lighting system and CMOS sensor guarantee consistent and dependable data, critical for quality control and product development where color accuracy and appearance are top priorities.
Recommendations
To maximize the potential of the YR05483 spectrophotometer, frequent calibrations are advised, and it should be operated in a clean, controlled environment. Adjusting the measurement height based on sample type enables optimal use of its non-contact features and ensures ongoing precision. Request a customized quote today through Kalstein Plus to discover how this spectrophotometer can enhance your quality control processes, delivering reliable, precise results with every use.
Technical Specifications
| Model | YR05483 |
| Illumination system | 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833 |
| Features | 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. |
| Light Source | Full spectrum LED light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm/10nm output |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Non-contact Distance | 7.5mm |
| Sample Height | 0~150mm |
| Distance Adjustment Method | Manual adjustment(test height can be stored) |
| Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
| Locating Method | Camera Locating |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313),TI(ASTM E313，CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s |
| Data Storage | Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000 |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.25（Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2 ~ 99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display Screen | 7″ TFT Capacitive Screen-touch Display |
| Data Port | USB/RS-232 |
| Language | Simplified Chinese,Traditional Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity, |
| Notes | The specifications are subject to change without notice. |
