Multi-parameter Patient Monitor YR02177
Multi-parameter Patient Monitor YR02177 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

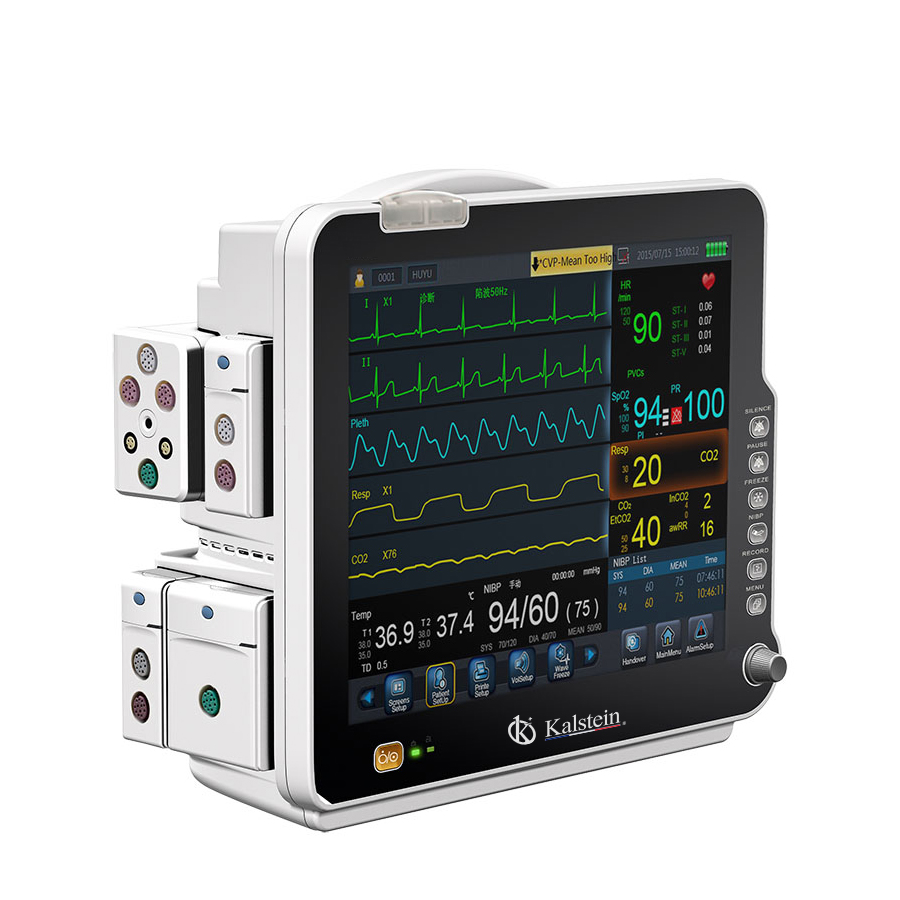

The Multi-parameter Patient Monitor YR02177 is an advanced medical device designed to offer comprehensive monitoring in critical care environments such as operating theaters and intensive care units. It features a robust 17-inch LCD screen and modular parameter options, allowing healthcare professionals to tailor the device to specific patient needs. This patient monitor comes standard with parameters including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, offering vital insights into the patient's health status.
Market Price
In the highly competitive market for multi-parameter patient monitors, prices can vary significantly. Generally, devices comparable to the Multi-parameter Patient Monitor YR02177 can be found in the range of $4600 to $5400 USD. This price range reflects the addition of advanced features and high-quality components that ensure accurate and reliable patient monitoring.
Frequently Asked Questions
What type of patients can be monitored? The device is suitable for adult, pediatric, and neonatal patients, with specific HR and RESP ranges for each group.
Is the device portable? Yes, the monitor can be mounted on a trolley or a wall, offering versatility in various clinical settings.
Does it come with a warranty? The monitor typically includes a manufacturer's warranty, details of which should be clarified during the purchasing process.
Advantages and Disadvantages
The Multi-parameter Patient Monitor YR02177 offers numerous advantages, including high accuracy, modular functionality for customizable patient monitoring, and durable design. However, the initial cost could be a concern for smaller practices.
Product Usage in Field
This monitor is used in both operating rooms and intensive care units, where real-time monitoring is critical. Its ability to evaluate multiple physiological parameters allows for early intervention and better patient outcomes.
Recommendations
To ensure optimal performance, it's recommended to provide regular maintenance checks and software updates. Use the device in a clean, safe environment, and consult the user manual for best practices.
Features
- 17-inch LCD display
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Modular design for customizable monitoring
- Optional advanced monitoring options available
- Audio-video alarm system
- Easy integration into various clinical settings
Technical Specifications
| Model | YR02177 | |
ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
Technical specifications
| Dimensions | L 57 × W 39 × H 53.5 cm |
|---|---|
| Weight | 8 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Multi-parameter Patient Monitor YR02177?
To know the price of Multi-parameter Patient Monitor YR02177, please send us an email with your request through the contact form AQUI.
What are the delivery times for Multi-parameter Patient Monitor YR02177?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Multi-parameter Patient Monitor YR02177?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Multi-parameter Patient Monitor YR02177?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Multi-parameter Patient Monitor YR02177?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
