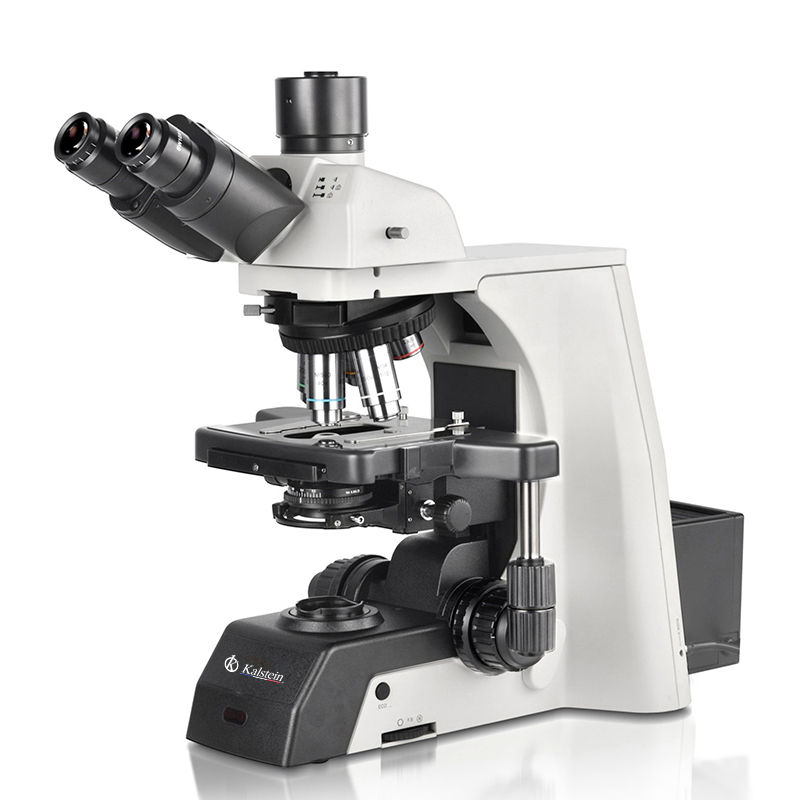

Manual Halogen Laboratory Microscope YR0266A // YR0266C
Manual Halogen Laboratory Microscope YR0266A // YR0266C — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Manual Halogen Laboratory Microscope YR0266A // YR0266C represents a cutting-edge advancement in scientific research tools, designed for efficiency, precision, and ease of use. This full auto motorized microscope integrates an electric platform, auto-focus capabilities, electric objective conversion, and a convenient touch screen controller. Coupled with powerful imaging software, it captures and processes images seamlessly while minimizing repetitive tasks. Additionally, it offers an intelligent restoration feature for previous settings, ensuring stability and accuracy in imaging, making laboratory operations fast and efficient.
Market Price
The pricing for high-quality scientific microscopes like the Manual Halogen Laboratory Microscope YR0266A // YR0266C typically ranges from $6200 to $7000. This range offers a competitive market value, reflecting the advanced features and benefits that this microscope offers to research and clinical applications.
Frequently Asked Questions
Can the microscope settings be saved for future use? Yes, the microscope is equipped with a feature to restore the last settings used, enhancing repeatability and convenience.
Does this microscope support different methods of observation? Absolutely, it supports bright field, dark field, polarizing, phase contrast, fluorescent, and DIC observation methods.
Advantages and Disadvantages
The Manual Halogen Laboratory Microscope offers several advantages, such as fully motorized components for precision, auto-focus, and a robust design for professional use. A potential disadvantage could be the learning curve associated with the advanced technology for new users.
Product Use in the Field
This microscope is perfect for a wide range of applications in research and clinical environments. It is ideal for detailed cellular examination, fluorescent studies, and other specialized scientific analyses, offering fast and precise results that enhance productivity in laboratory settings.
Recommendations
To maximize the utility of the Manual Halogen Laboratory Microscope, regularly clean the optical components and calibrate the device to maintain accuracy. Utilize the touch screen controller for quick adjustments and explore the imaging software for comprehensive analysis. Consider integrating with the Kalstein Plus platform for easy quotation requests and product support.
Features
- Full auto motorized operation
- Electric platform and auto-focus
- Touch screen controller and imaging software
- NIS60 Infinity Optical System
- Supports multiple observation methods
Technical Specifications
| Full Auto Motorized Research Level Scientific Laboratory Microscope | Accesory Number | YR0266A | YR0266B | YR0266C | |
| Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ||
| Polarizing | ○ | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ○ | ||
| Flourescent | ○ | ○ | ○ | ||
| DIC | ○ | ○ | ○ | ||
| Main Body | Manual Body + HalogenIllumination. | YR0266C-op1 | ● | - | - |
| Manual Body + LEDIllumination. | YR0266C-op2 | ● | - | - | |
| Semi-Auto Body + HalogenIllumination. | YR0266C-op3 | - | ● | - | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Semi-Auto Body + LEDIllumination. | YR0266C-op4 | - | ● | - | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Full Auto Body + LEDIllumination. | YR0266C-op5 | - | - | ● | |
| Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen | |||||
| Head | Seidentopf Binocular Head, Inclined 30°, | YR0266C-op6 | ○ | ○ | ○ |
| Interpupillary Distance 47-78mm | |||||
| Seidentopf Trinocular Head, Inclined 30°, | YR0266C-op7 | ● | ○ | ● | |
| Interpupillary Distance 47-78mm, | |||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | YR0266C-op8 | ||||

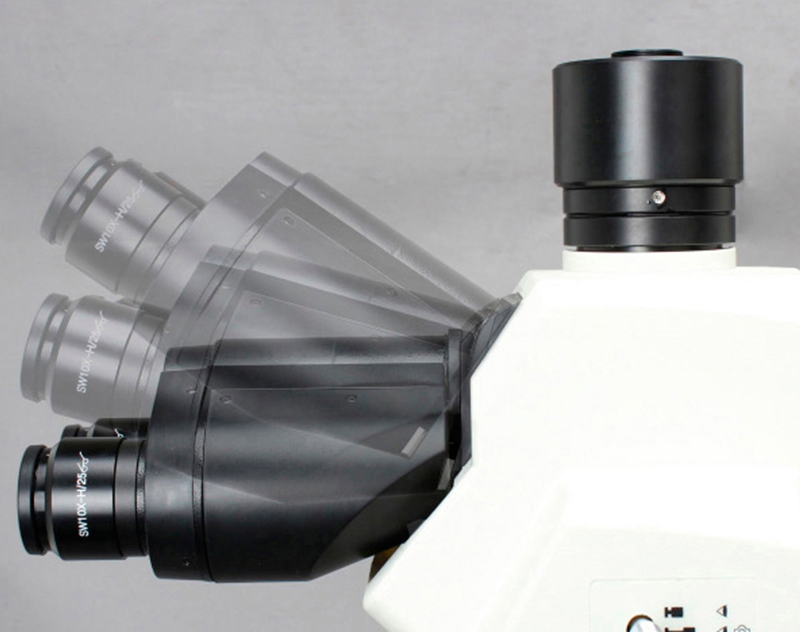

| Ergo Tilting Trinocular Head, Inclination 0°~35°, | ○ | ● | ○ | ||
| Interpupillary Distance 47-78mm, | YR0266C-op9 | ||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | |||||
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op10 | ●● | ●● | ●● |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op11 | ○ | ○ | ○ | |
| EW12.5x/16mm, High Eyepoint | YR0266C-op12 | ○ | ○ | ○ | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op13 | ○ | ○ | ○ | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op14 | ○ | ○ | ○ | |

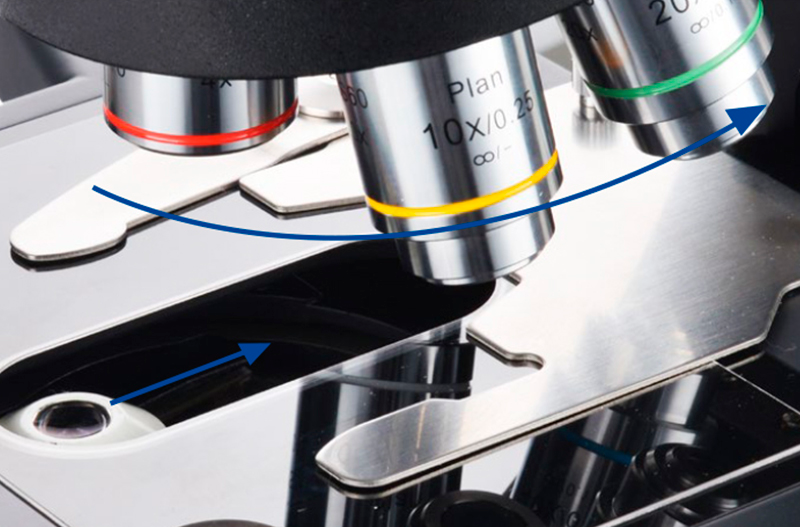

| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | YR0266C-op15 | ○ | ○ | ○ |
| Manual Nosepiece, Sextuple, Backward | YR0266C-op16 | ● | - | - | |
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | YR0266C-op17 | ○ | - | - | |
| Auto Coded Nosepiece, Sextuple, Backward, | YR0266C-op18 | ○ | ● | ● | |
| Motorized Switch Objectives, Controled By: | |||||

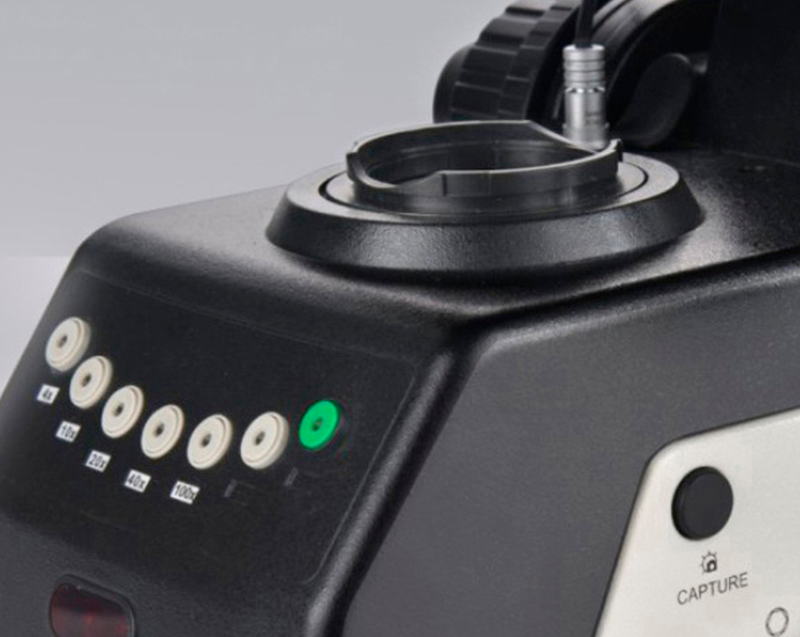

| 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly | |||||
| 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them | |||||
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | ||
| Protect Cover For Nosepiece Holes | YR0266C-op19 | ● | ● | ● | |

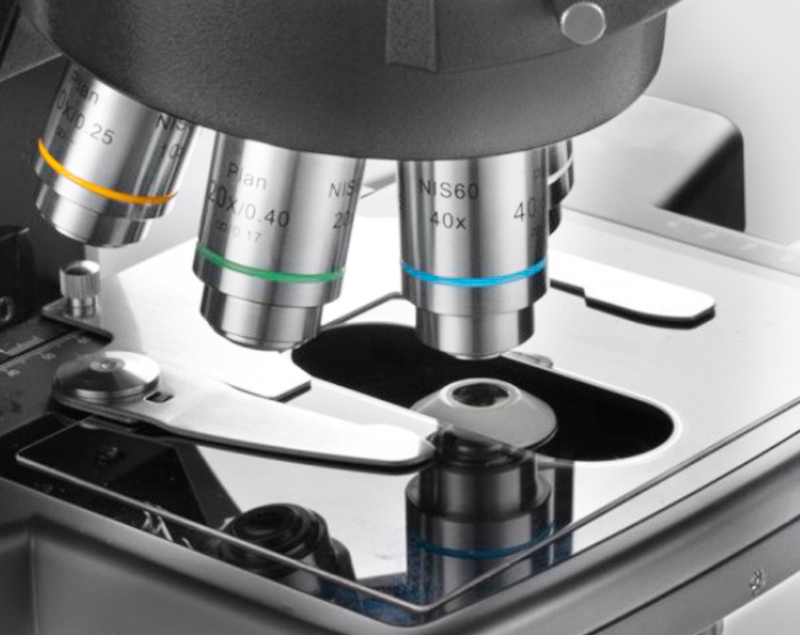

| NIS60 | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | YR0266C-op20 | ○ | ○ | ○ |
| N-PLN | 4x/0.10, W.D.30mm, Cover Glass 0.17mm | YR0266C-op21 | ● | ● | ● |
| Infinity Plan Objective | 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | YR0266C-op22 | ● | ● | ● |
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | YR0266C-op23 | ● | ● | ● | |
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | YR0266C-op24 | ● | ● | ● | |
| 50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | YR0266C-op25 | ○ | ○ | ○ | |
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | YR0266C-op26 | ○ | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | YR0266C-op27 | ● | ● | ● | |
| NIS60APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | YR0266C-op28 | ○ | ○ | ○ |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | YR0266C-op29 | ○ | ○ | ○ | |
| Working Stage | Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, LeftHandle | YR0266C-op30 | ○ | - | ○ |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, RightHandle | YR0266C-op31 | ● | - | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle | YR0266C-op32 | - | ○ | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle | YR0266C-op33 | - | ● | ○ | |

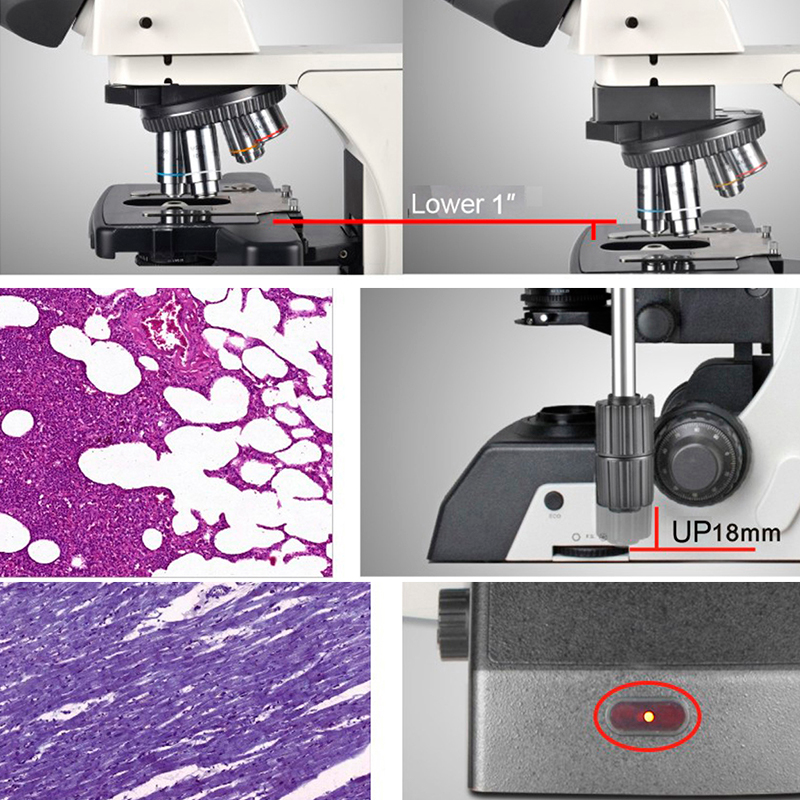

| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw | - | ● | ● | - | |
| Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, | YR0266C-op34 | ○ | ○ | ● | |
| --Travel Range X:125mm, Y:75mmm, | |||||
| --Minimum Step 0.1um | |||||
| --Re-Position Accurate +/-1.5um | |||||
| --Max Speed 25mm/s | |||||
| --Size: 275x239x44.5mm | |||||
| --Soft Stop, Mechanical Stop, Opto-Electro Switch Stop | |||||
| --Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um | |||||
| --Z Axis Max Speed 10r/s | |||||
| --3D Control Stick, 4 Speeds | |||||
| --Connection By USB2.0 & RS232 | |||||
| --Communication Speed 9600 bits | |||||
| Z Axis Upgrade With Optical Grating Ruler | YR0266C-op35 | ○ | ○ | ○ | |
| Condenser | Swing-Out Condenser NA0.9/0.25 | YR0266C-op36 | ● | - | - |
| AutoSwing-Out Condenser NA0.9/0.25 | YR0266C-op37 | ● | - | ||

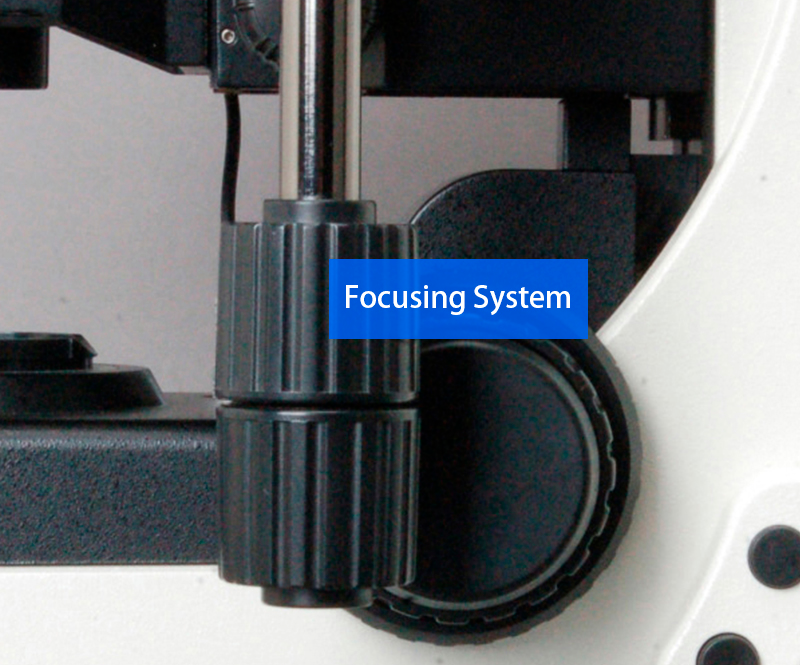

| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ | - | ● | ● | ● |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op38 | ● | ● | |
| 12V100W Halogen, External Lamp House | |||||
| TransmitKohler Illumination, Brightness Adjustable, | YR0266C-op39 | ● | |||
| 3W S-LED, Built-in Main Body | |||||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | YR0266C-op40 | ● | ● | ● | |
| AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected | YR0266C-op41 | ○ | ● | ● | |
| (To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | |||||
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | YR0266C-op42 | ● | ● | ● |
| Filter LBD | YR0266C-op43 | ● | ● | ● | |
| Filter Green | YR0266C-op44 | ● | ● | ● | |
| Filter Yellow | YR0266C-op45 | ● | ● | ● | |
| Filter ND6 | YR0266C-op46 | ● | ● | ● | |
| Filter ND25 | YR0266C-op47 | ● | ● | ● | |
| Adapter | Eyepiece Adapter Dia.23.2mm | YR0266C-op48 | ○ | ○ | ○ |
| C-Mount 1.0x | YR0266C-op49 | ○ | ○ | ○ | |
| C-Mount 0.5x | YR0266C-op50 | ○ | ○ | ○ | |
| Software | NOMIS Basic Image Processiing Software | YR0266C-op51 | ○ | ○ | ○ |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | YR0266C-op52 | ○ | ○ | ○ |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | YR0266C-op53 | ○ | ○ | ○ | |
| Dark Field Objective, Infinity Plan 100X, | YR0266C-op54 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, | YR0266C-op55 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | YR0266C-op56 | ○ | ○ | ○ |
| Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | YR0266C-op57 | ○ | ○ | ○ | |
| 1Professional Polarizing Microscope | YR0266C-op58 | ○ | ○ | ||
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | YR0266C-op59 | ○ | ○ | ○ |
| Centering Telescope 10x | YR0266C-op60 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | YR0266C-op61 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | YR0266C-op62 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | YR0266C-op63 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | YR0266C-op64 | ○ | ○ | ○ | |
| DIC | Polarizer For Transmit Light Source | YR0266C-op65 | ○ | ○ | ○ |
| Turret DIC Condenser | YR0266C-op66 | ○ | ○ | ○ | |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | YR0266C-op67 | ○ | ○ | ○ | |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | YR0266C-op68 | ○ | ○ | ○ | |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | YR0266C-op69 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 10x-20x | YR0266C-op70 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 40x-100x | YR0266C-op71 | ○ | ○ | ○ | |
| NIS60 N-PLFN | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | YR0266C-op72 | ○ | ○ | ○ |
| Semi-APO | 10x/0.3, W.D.8.1, Cover Glass 0.17mm | YR0266C-op73 | ○ | ○ | ○ |
| Fluorescent | 20x/0.5, W.D.2.1, Cover Glass 0.17mm | YR0266C-op74 | ○ | ○ | ○ |
| Objective | 40x/0.75, W.D.0.7, Cover Glass 0.17mm | YR0266C-op75 | ○ | ○ | ○ |
| For DIC | 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | YR0266C-op76 | ○ | ○ | ○ |
| Fluorescent | Fluorescent Microscope | YR0266C-op77 | - | ○ | ○ |
| Other Accessories | Working Stage Holder Bracket | YR0266C-op78 | ● | ● | ● |

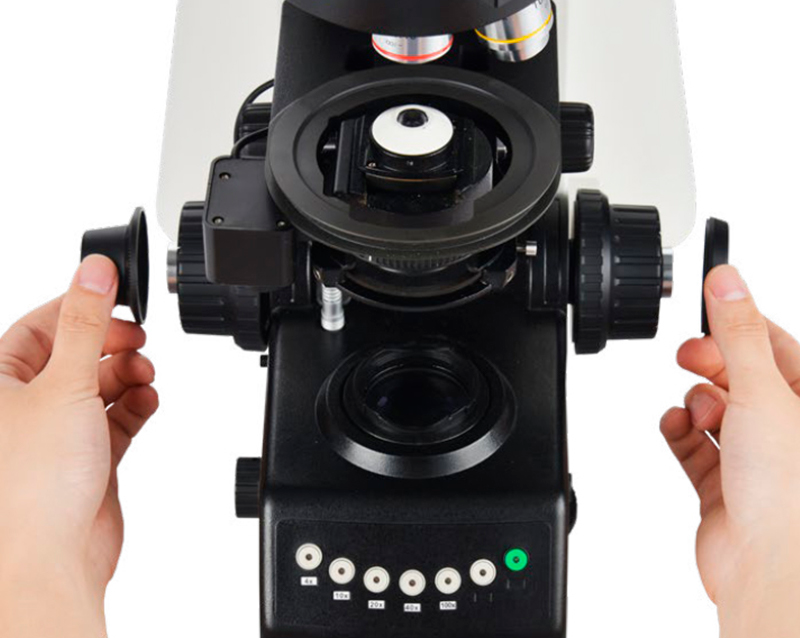

| Adapter To Adjust Eye Position | YR0266C-op79 | ○ | ○ | ○ | |
| Adapter To Lower The Stage Position 1" | YR0266C-op80 | ○ | ○ | ○ | |
| Immersion Oil | YR0266C-op81 | ● | ● | ● | |
| Allen Wrench | YR0266C-op82 | ● | ● | ● | |
| Power Cord | YR0266C-op83 | ● | ● | ● | |
| Short Eye Cover, For Eyepiece | YR0266C-op84 | ○ | ○ | ○ | |
| Long Eye Cover, For Eyepiece | YR0266C-op85 | ○ | ○ | ○ | |
| Eyepiece Micrometer, Cross | YR0266C-op86 | ○ | ○ | ○ | |
| Adapter Ring To Install Eyepiece Micrometer | YR0266C-op87 | ○ | ○ | ○ | |
| USB Cable | YR0266C-op88 | ○ | ○ | ○ | |
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | |||||
