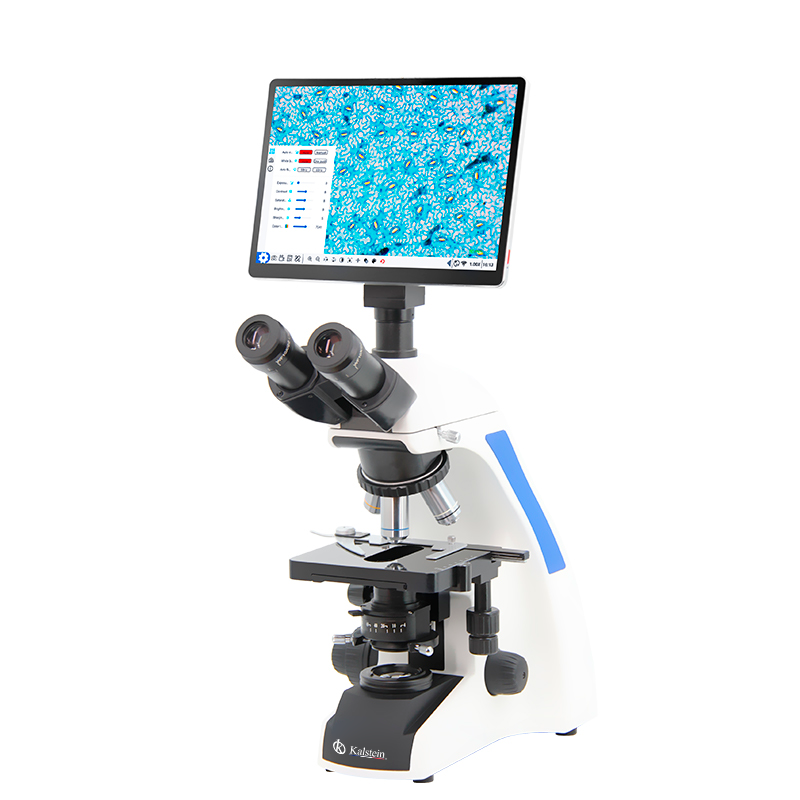

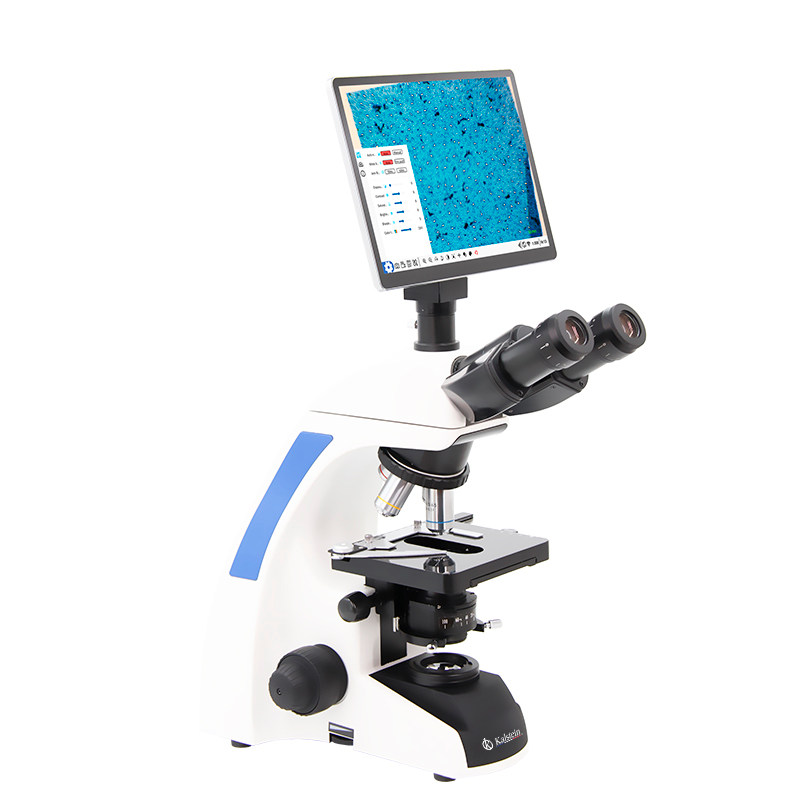

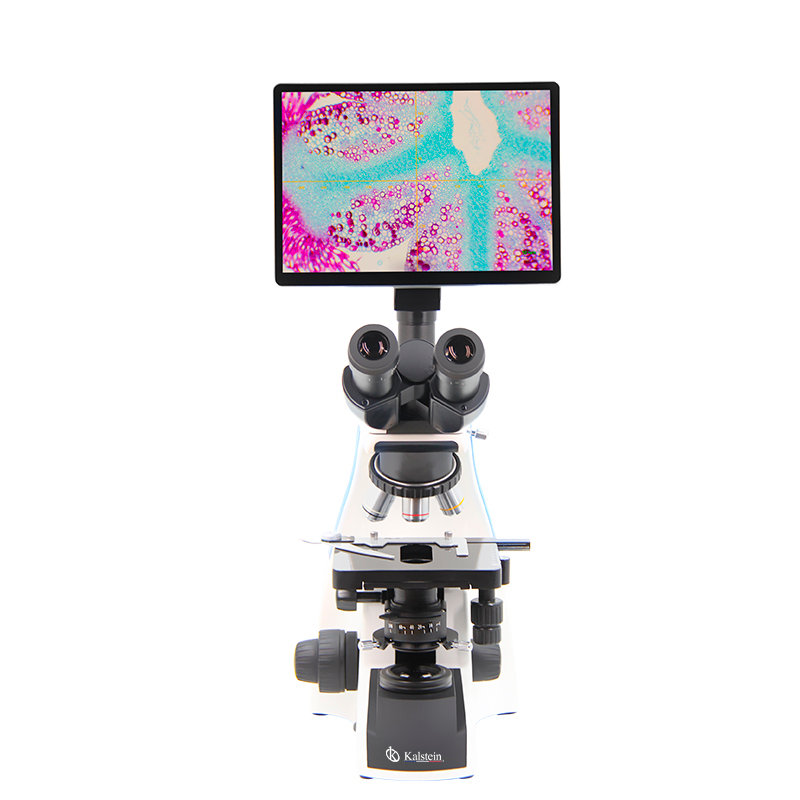

LCD Touch Screen Digital Microscope YR05782
LCD Touch Screen Digital Microscope YR05782 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

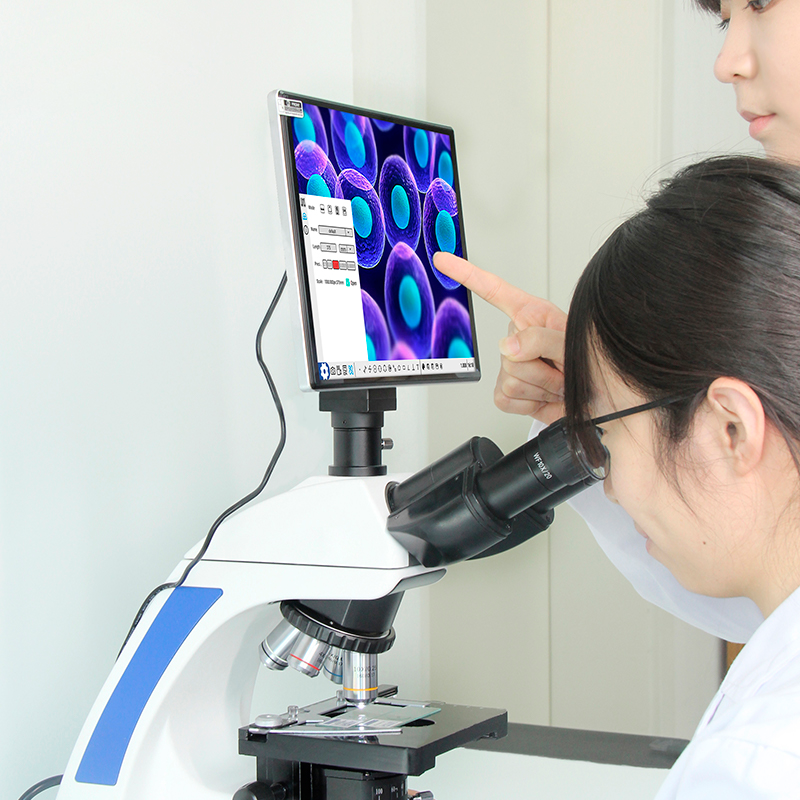

The LCD Touch Screen Digital Microscope YR05782 sets a new standard for precision and ease of use in laboratory environments. Equipped with a 10.5" LCD touch screen and powered by an Android system with measuring software, this digital microscope allows for enhanced visualization and accurate imaging. Its high eyepoint wide-field eyepiece and achromatic objectives provide clear, detailed views at magnifications of 4x, 10x, 40x, and 100x. The mechanical stage offers precise control, and the LED illumination ensures high-quality Kohler lighting. Designed for both educational and professional settings, this microscope delivers value and innovation.
Price in the Market
The LCD Touch Screen Digital Microscope YR05782 is competitively priced, offering advanced features typically seen in higher-end models. The price range for similar digital microscopes varies between $1100 to $1900 USD, making this model a cost-effective choice for researchers and educators seeking quality without compromising their budget. For current promotions and exact pricing, contact us for a quote or explore our Kalstein Plus platform.
Frequently Asked Questions
What is the resolution of the camera? The microscope features an 8-megapixel camera capable of capturing high-definition images and 1080p video.
Is the microscope compatible with standard measuring software? Yes, it comes with pre-installed S-Eye2.0 software for comprehensive measurement and analysis.
Advantages and Disadvantages
Advantages of the YR05782 include its intuitive touch screen interface, high-quality optical components, and advanced connectivity options like HDMI and dual-band WIFI. Potential disadvantages include a steeper learning curve for beginners unfamiliar with digital microscope interfaces.
Use of the Product in the Field
This microscope is ideal for various applications, including biological research, educational demonstrations, and detailed sample analysis. Its robust design and portable nature allow for easy integration into laboratory and classroom settings.
Recommendations
To maximize the life and functionality of the microscope, regular cleaning and calibration are advised. Utilize the user-friendly software for accurate measurements and data recording. For extended longevity, handle the touch screen and optical components with care.
Features
- 10.5" LCD touch screen with Android system
- Advanced measuring software included
- High eyepoint wide-field eyepiece for enhanced viewing
- Upgradeable achromatic objectives with infinity capabilities
- LED Kohler illumination for consistent lighting
- Dual-band WIFI and Bluetooth 5.0 connectivity
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

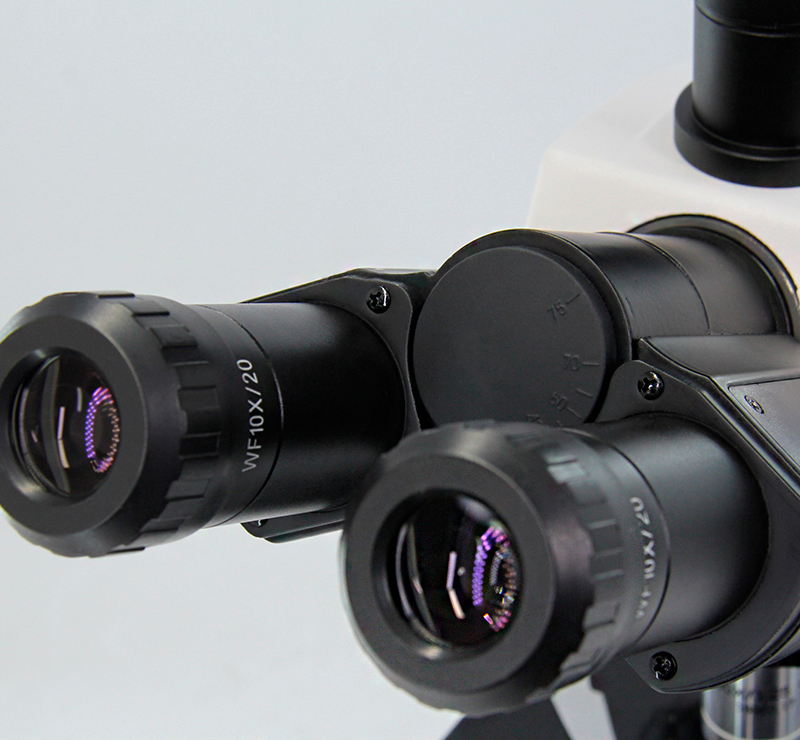

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |
| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |

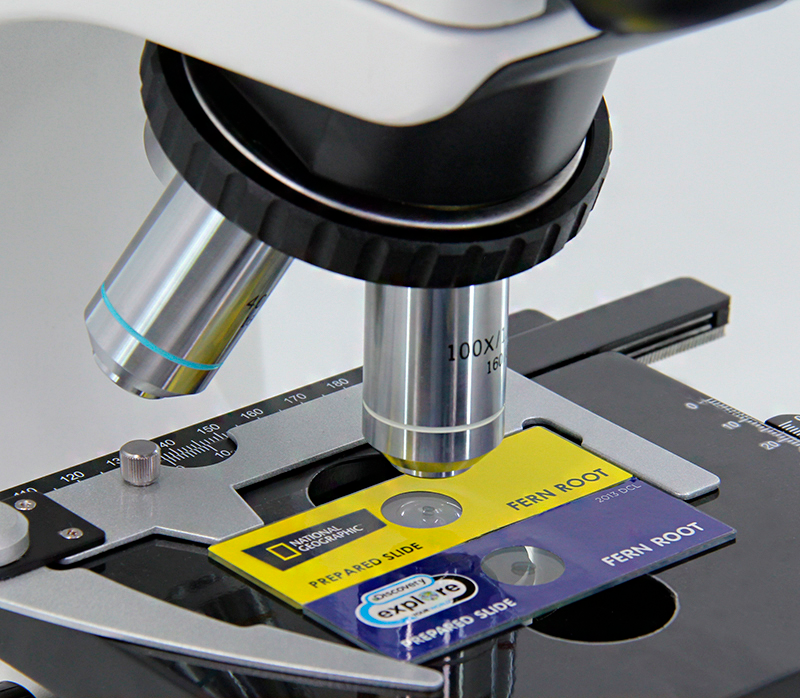

| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |
| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |

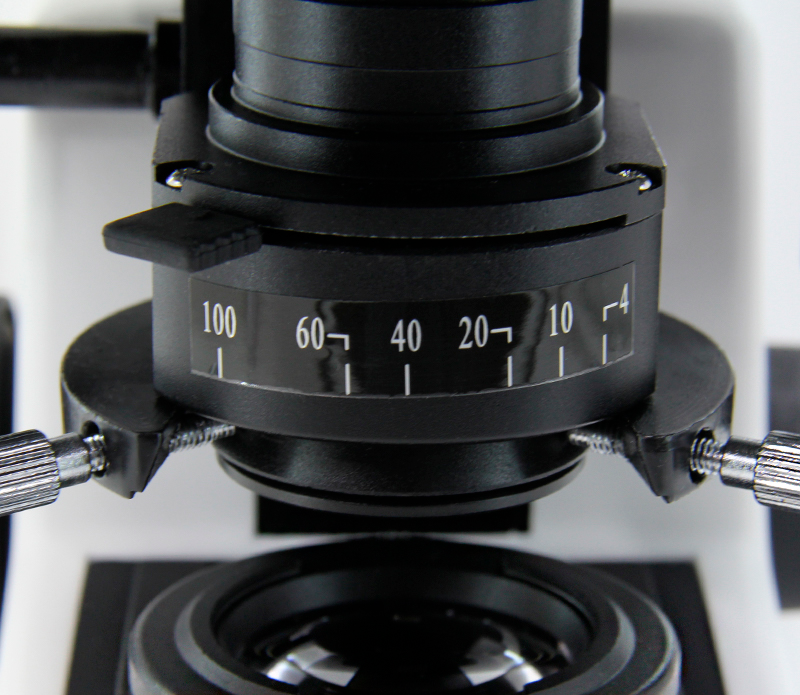

| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
Technical specifications
| Weight | 11.5 kg |
|---|---|
| Manufacturer | Kalstein |

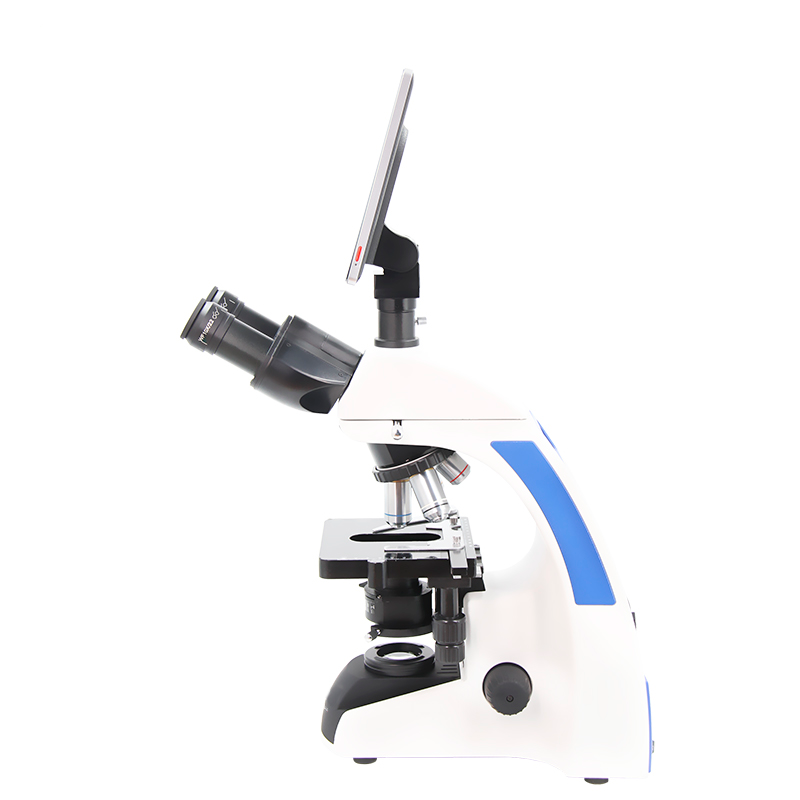

Image gallery
Video LCD Touch Screen Digital Microscope YR05782
Frequently asked questions
How to know the prices of LCD Touch Screen Digital Microscope YR05782?
To know the price of LCD Touch Screen Digital Microscope YR05782, please send us an email with your request through the contact form AQUI.
What are the delivery times for LCD Touch Screen Digital Microscope YR05782?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of LCD Touch Screen Digital Microscope YR05782?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for LCD Touch Screen Digital Microscope YR05782?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for LCD Touch Screen Digital Microscope YR05782?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
