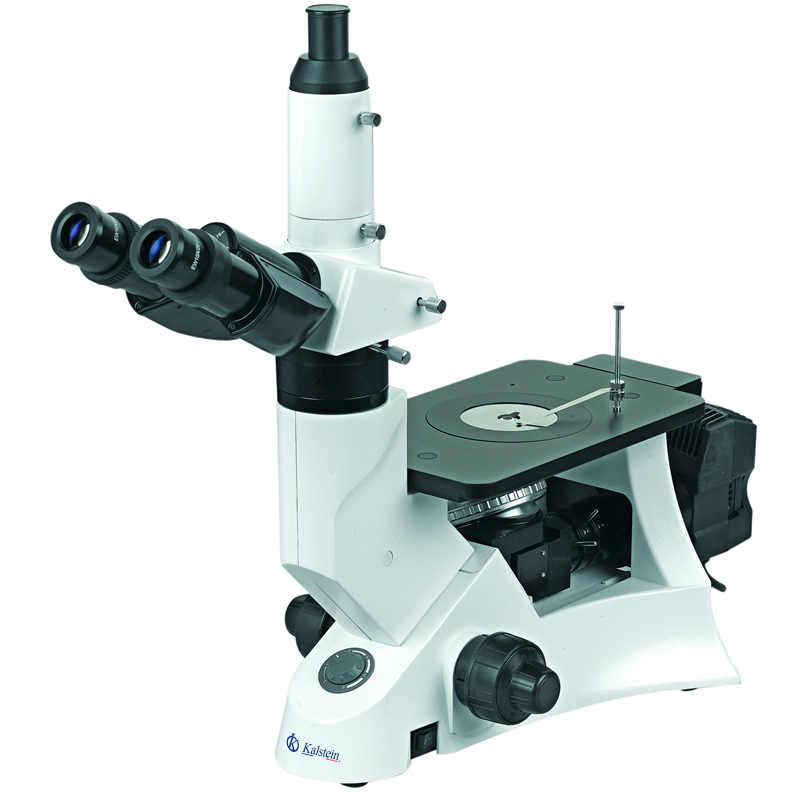

Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Metallurgical Microscope YR0258 is an advanced tool designed for professionals in metallurgy and materials science. With a stable support structure and an innovative stage design, this microscope is essential for laboratories and research institutes aiming to analyze metal structures and other materials with precision. Its high-quality infinity optical system ensures exceptional image clarity, making it an indispensable instrument for detailed examination.
Market Price
The price of high-quality inverted metallurgical microscopes can vary based on their features and capabilities. For a premium model like the YR0258, you can expect market prices to range between 2000 USD and 2800 USD, positioning it competitively within its category. For an exact quote, we invite you to utilize the Kalstein Plus platform, which offers automatic quotation generation.
Frequently Asked Questions
What kind of applications is this microscope suitable for?
The YR0258 is perfect for examining the structural composition of metals and other materials in various industries such as automotive, aerospace, and manufacturing.
Does it come with any illumination technology?
Yes, it features external Kohler illumination utilizing a 6V30W halogen lamp, ensuring optimal brightness and image clarity.
Advantages and Disadvantages
Advantages:
- Infinity optical system for superior image quality.
- Wide range of objectives, including optional accessories for versatile magnification capabilities.
- Flexible illumination options with adjustable brightness.
Disadvantages:
- Halogen lamps may require more frequent replacement compared to LED options.
- Initial setup might require some technical expertise.
Use of the Product in the Field
The inverted design of the YR0258 microscope allows for the observation of larger and heavier samples without the need to manipulate the sample orientation. This is particularly useful in metallurgical analysis where precision and stability are vital. It is commonly employed in environments where space is constrained and high accuracy is needed, enabling users to achieve detailed analysis with minimal sample preparation.
Recommendations
To ensure the longevity and consistent performance of the YR0258 microscope, routine maintenance such as regular cleaning of optical components and calibration of mechanical parts is recommended. Ensure the microscope is stored in a clean, dry environment to prevent dust accumulation and moisture damage. For optimal utilization, consider training users on best practices and safety procedures.
Features
- Infinity optical system with Seidentopf Trinocular Head
- Wide field eyepieces for comfortable viewing
- Quintuple nosepiece for quick objective changes
- Coaxial coarse and fine focusing adjustments
- External Kohler illumination with halogen lamp
- Polarizing attachment and multiple filter options
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

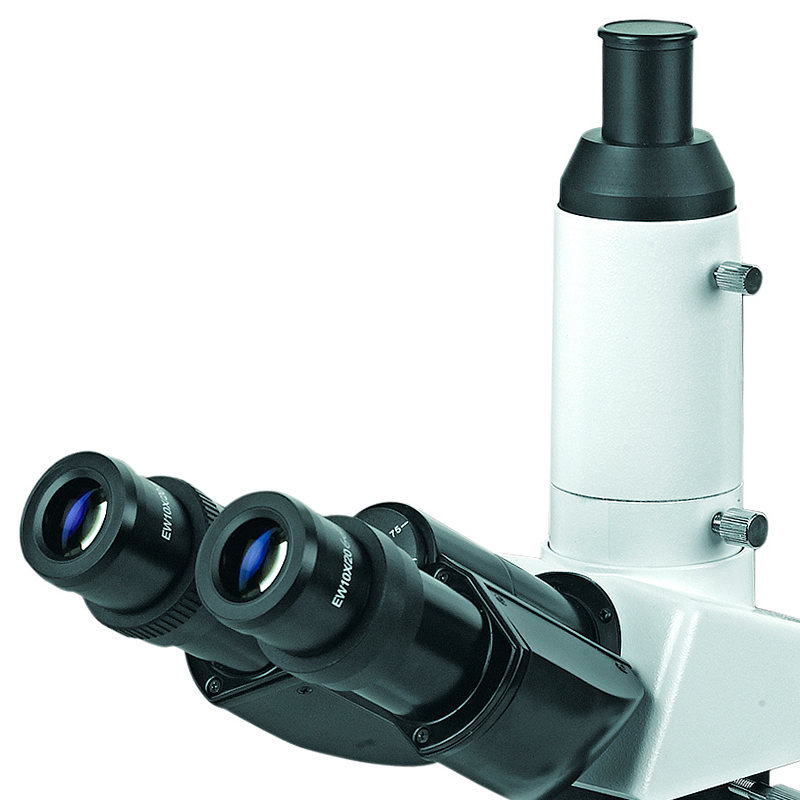

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

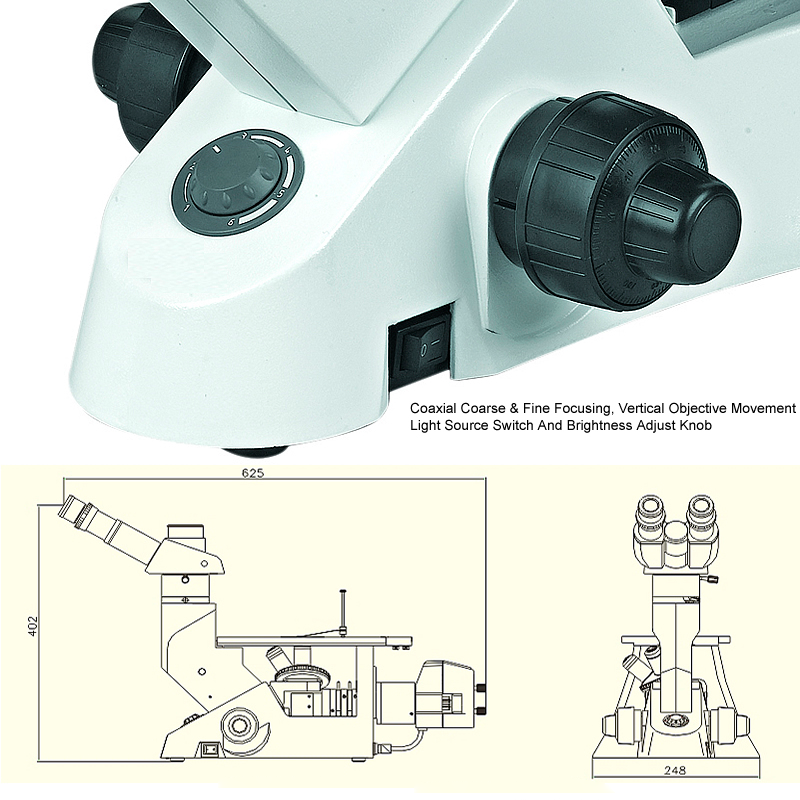

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

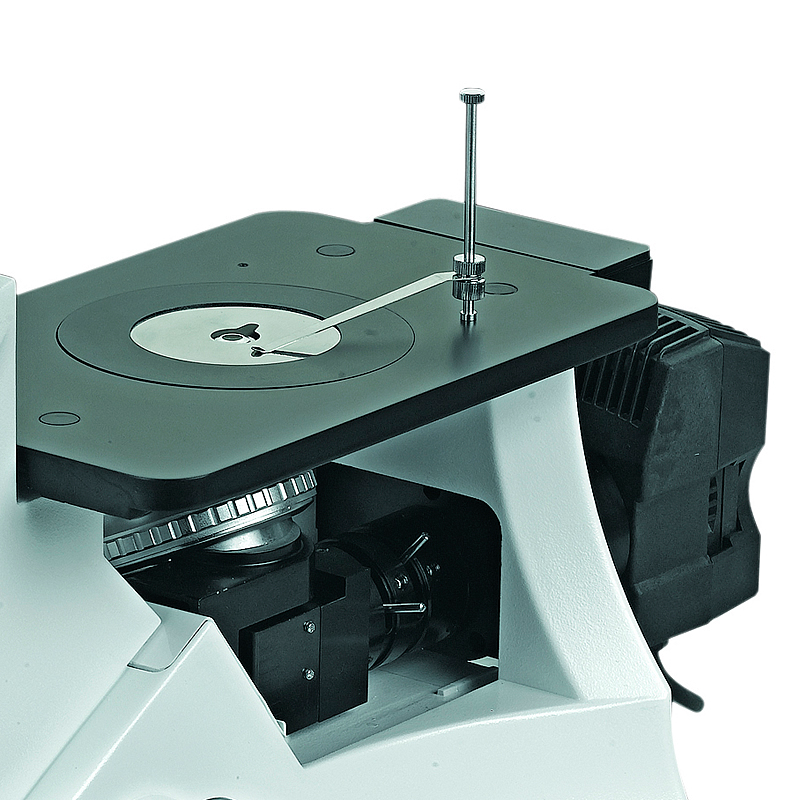

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accesories | |||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Wokring Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Weight | 15 kg |
|---|---|
| Manufacturer | Kalstein |
