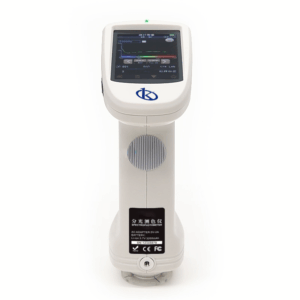

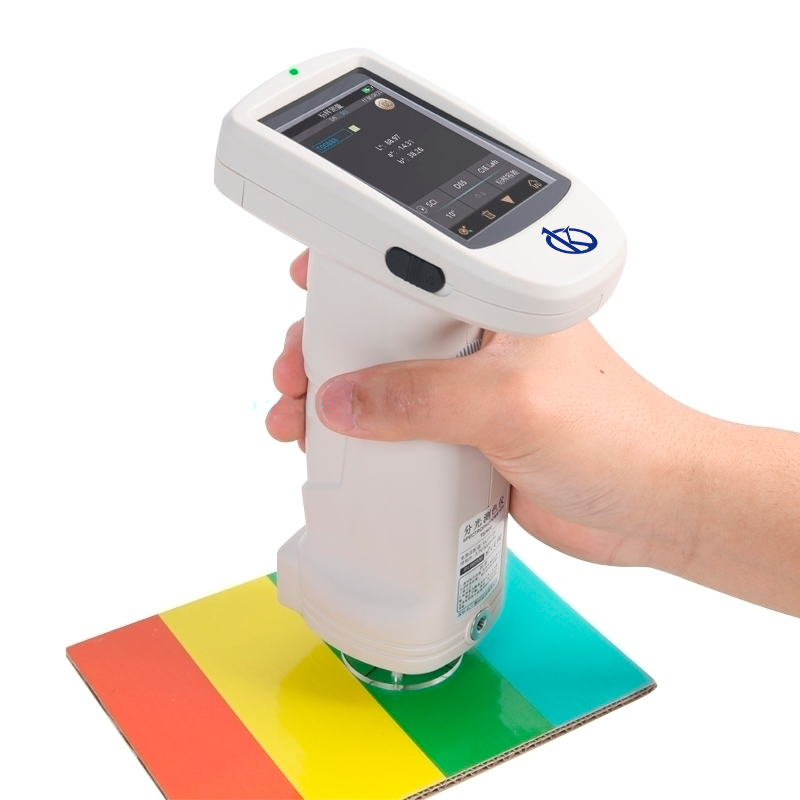

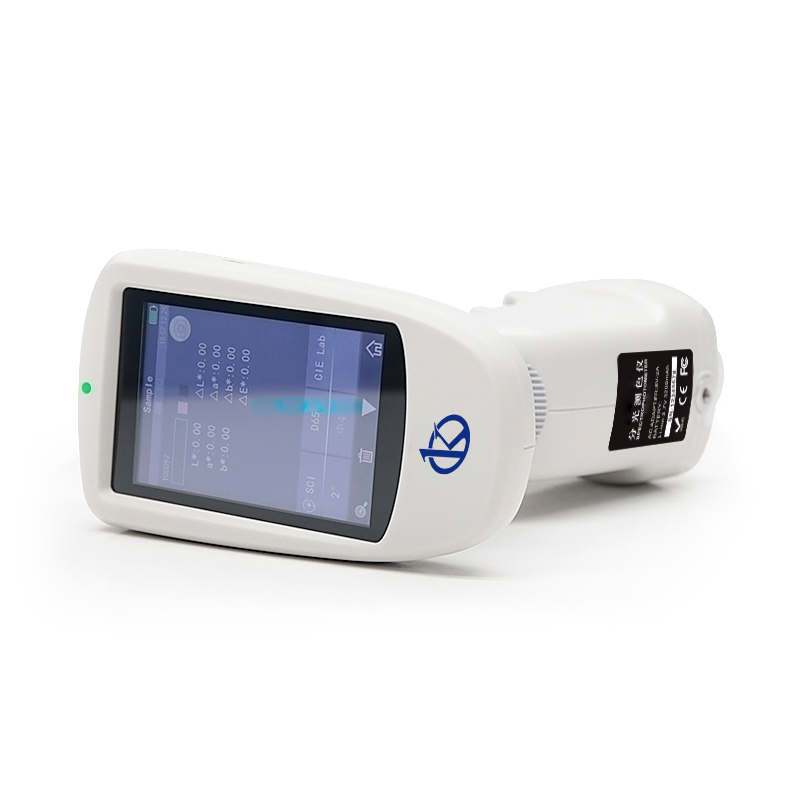

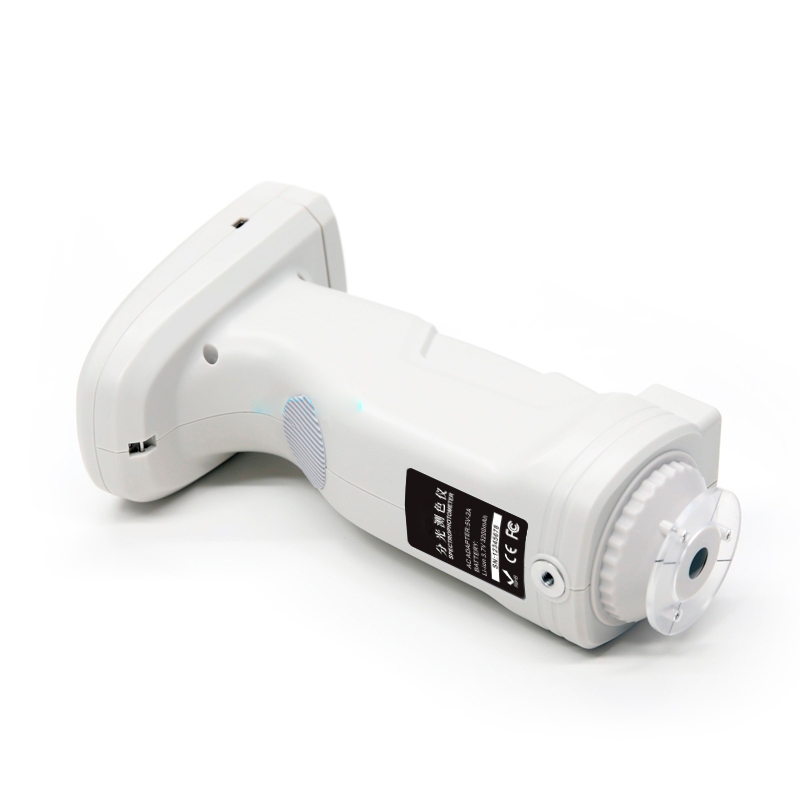

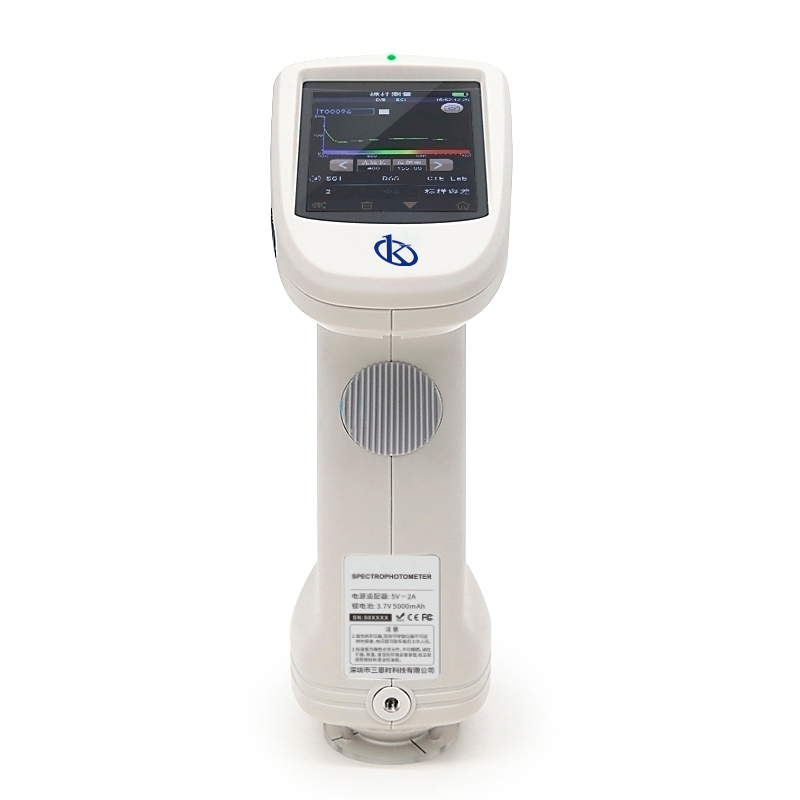

Grating Spectrophotometer YR05493
Grating Spectrophotometer YR05493 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

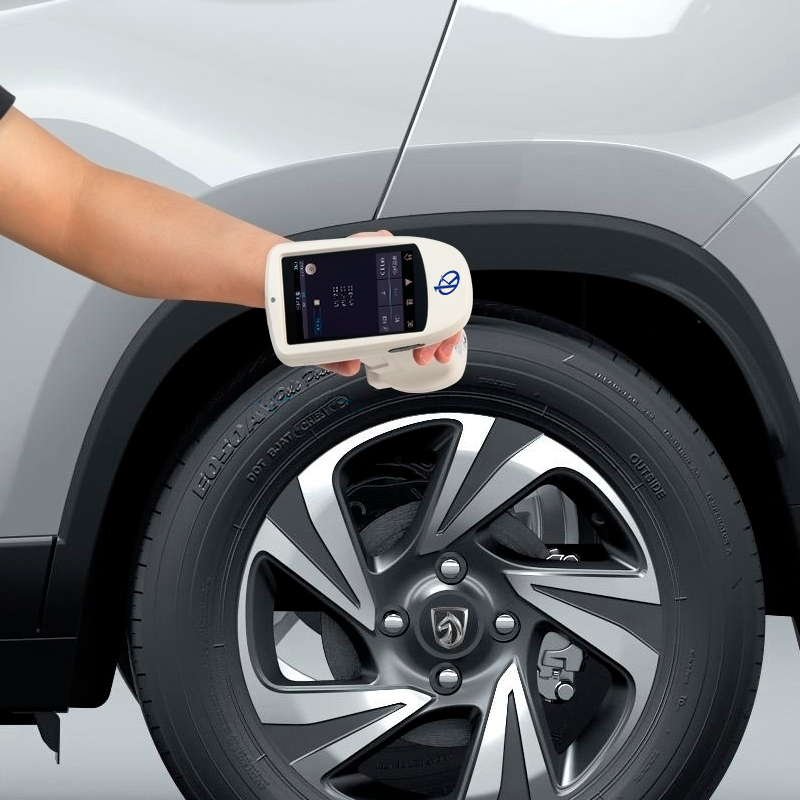

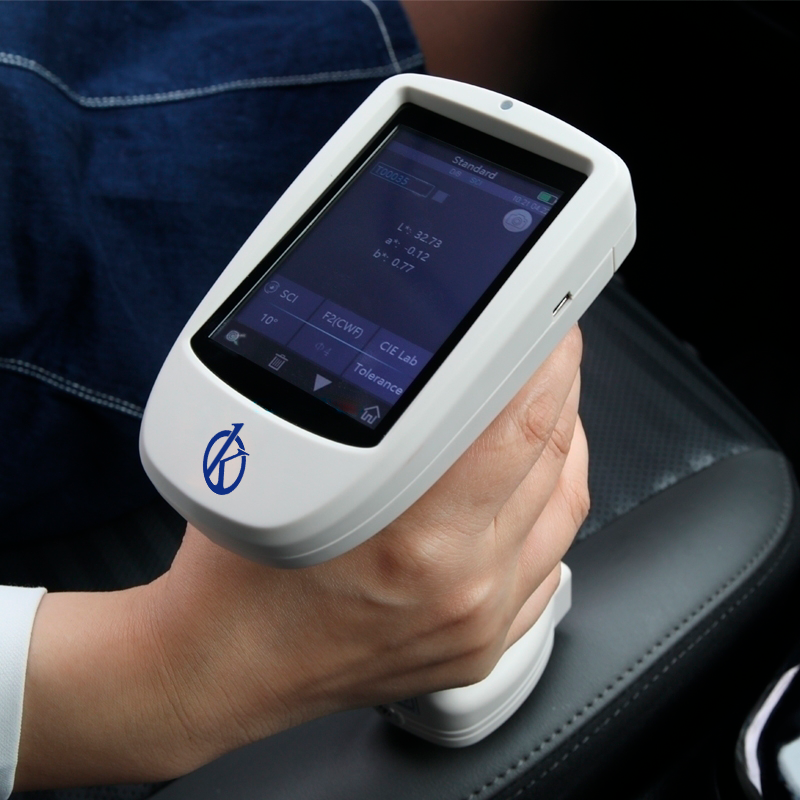

The YR05493 Grid Spectrophotometer from Kalstein is an advanced tool for precise color analysis across various industries, including electronics, plastics, textiles, automotive, cosmetics, and food. This device features three measurement apertures (φ8 mm, φ4 mm, 1×3 mm), providing great versatility to adapt to samples of different sizes. With 1000-line grating technology and a 40-group dual silicon photodiode array sensor, the YR05493 offers stable and precise color measurement in the visible spectrum of 400 to 700 nm. Its ergonomic design and dual d/8 optical structure allow for both SCI and SCE measurements, meeting international standards such as CIE No.15 and ASTM E1164. This makes it an ideal solution for quality control applications in laboratory and production environments.
Market Price
The YR05493 is available on the market at a price range of $8880 to $8885 USD, depending on selected configurations and accessories. This spectrophotometer is a smart investment for companies aiming to improve the precision and efficiency of color control in their processes. To obtain a personalized quote or generate an automatic quote, you can access the Kalstein Plus platform and enjoy a quick and reliable purchasing process.Frequently Asked Questions
- What applications is the YR05493 recommended for? It is ideal for color control in sectors such as plastics, textiles, ceramics, printing, and is especially useful for fluorescent samples.

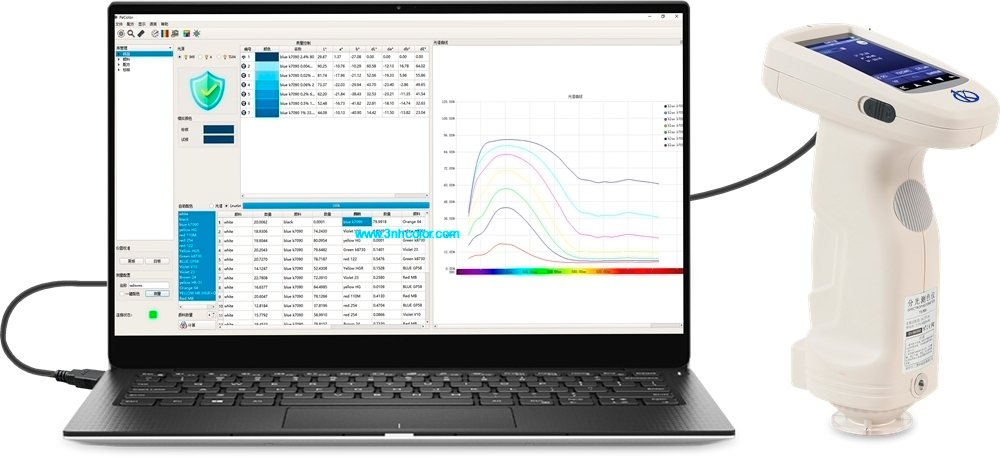

- Is it PC-compatible? Yes, the YR05493 includes color management software for PC that allows for detailed analysis and complete color quality data management.
- What is the storage capacity? This model can store up to 1,000 standards and 30,000 samples, ideal for detailed and organized record-keeping.
Advantages and Disadvantages
The YR05493 has significant advantages, such as its high precision with a standard deviation of ΔE*ab of only 0.03, its adaptability with multiple apertures, and its compatibility with various color spaces and light sources. Additionally, its USB and Bluetooth 4.2 connectivity enables fast data transfer. However, a disadvantage is its limitation to the visible spectrum (400-700 nm), which may not be suitable for applications requiring a broader wavelength range.Field Applications
The YR05493 is widely used in applications requiring high color accuracy, such as plastics, textiles, coatings, and ceramics manufacturing. Its ability to measure in both SCI and SCE modes, along with its various apertures, allows it to adapt to each sample’s needs, ensuring consistent results. It is also used for color verification in signage products and reflective films, making it a key tool in laboratories and production lines alike.Recommendations
To ensure the best performance of the YR05493, regular calibration is recommended, and the equipment should be stored in a clean, dust-free environment. Its lithium-ion battery allows up to 6,000 measurements over 8 hours, so regular recharging is advised. Request a personalized quote or generate a quick quote on Kalstein Plus and discover how the YR05493 Grid Spectrophotometer can enhance precision and efficiency in your industry’s color control, optimizing each stage of the production process.Technical Specification
| Model | YR05493 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | 3 measuring apertures for accurate color analysis and transmission in laboratory |
| It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| LAV1x3mm: Slightly poor accuracy, can be used for color test | |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture |

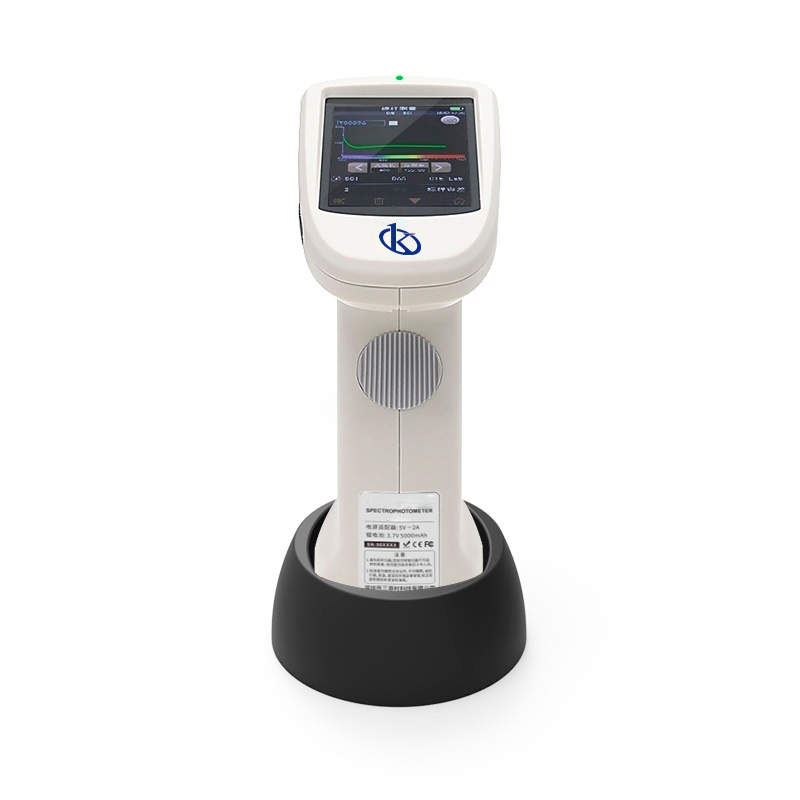

| Optional Accessory | Micro Printer, Powder Test Box, Holding base |
| Notes | The specifications are subject to change without notice. |
Technical specifications
| Weight | 2 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Video Grating Spectrophotometer YR05493
Frequently asked questions
How to know the prices of Grating Spectrophotometer YR05493?
To know the price of Grating Spectrophotometer YR05493, please send us an email with your request through the contact form AQUI.
What are the delivery times for Grating Spectrophotometer YR05493?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Grating Spectrophotometer YR05493?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Grating Spectrophotometer YR05493?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Grating Spectrophotometer YR05493?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
