Handheld Color Spectrophotometer YR05496
Handheld Color Spectrophotometer YR05496 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Handheld Color Spectrophotometer YR05496 by Kalstein is a state-of-the-art device engineered for precision in color measurement and management across diverse industries. Weighing only 600 grams, its 45/0 geometric optical structure adheres to international standards, ensuring accuracy with a DeltaE*ab index of 0.04. With a wavelength range from 400 to 700 nm and an 8 mm aperture, it is perfectly suited for industries such as plastics, paints, textiles, food, and cosmetics. Enhanced by the ergonomic design and an intuitive 3.5-inch touchscreen, it also connects to a PC via SQC8 color management software for comprehensive quality control.
Market Price
The spectrophotometer is competitively priced within the range of $3,800 to $4,100 USD, representing a sound investment for companies aspiring to heighten their color control precision. This device offers excellent value with a capacity to store up to 10,000 samples, making it highly versatile for industrial and laboratory applications. Experience a streamlined purchasing journey by requesting a custom quote or generating one automatically through Kalstein Plus.
Frequently Asked Questions
- What applications is the YR05496 ideal for?
The spectrophotometer is suitable for color assessment in plastics, paints, textiles, and also for the analysis of fluorescent and food samples. - Is it compatible with a PC?
Absolutely, the YR05496 interfaces with PCs via its advanced color management software, enabling seamless data management. - How many samples can it store?
It provides storage for up to 1,000 standards and 10,000 samples, ensuring organized and detailed record-keeping.
Advantages and Disadvantages
The YR05496 boasts superior accuracy (ΔE*ab of 0.04), a user-friendly, portable design, and meets multiple international colorimetry standards. USB and RS232 interfaces facilitate effortless data transfer. However, its limitation to the visible wavelength range (400-700 nm) might not accommodate applications needing broader spectrum analyses.
Field Applications
This spectrophotometer is instrumental in quality control for the fabrication of plastics, paints, and textiles where color consistency is key. Its portability and accuracy render it ideal for real-time assessments on production lines or in labs, yielding immediate and precise results. The advanced simulation and data management capabilities enable thorough product evaluation, guaranteeing quality assurance.
Recommendations
To ensure optimal performance of the YR05496, regular calibration and storage in a clean, dust-free environment are crucial. With a lithium-ion battery capable of 5,000 measurements over 8 hours, regular charging is advised to maintain operational readiness. Take the next step towards excellence in color control by requesting a quote or generating one seamlessly through Kalstein Plus.
Key Features
- Lightweight, handheld design (600 g)
- 45/0 geometric optical structure
- Wavelength range of 400-700 nm
- 3.5-inch touchscreen for ease of use
- Compatible with international color standards
- Supports USB and RS232 connectivity
- Storage for 10,000 samples
- SQC8 Color management software
Technical Specifications
Model | YR05496 |
Illumination/observation system | 45/0 method (45 ring-shaped illumination, vertical viewing) Comply with CIE No.15，GB/T 3978. |
Integrating sphere Size | Φ58mm |
Light Source | combined LED sources |
Sensor | Silicon photodiodearray |
Wavelength range | 400~700nm |
Wavelength pitch | 10nm |
Reflectance range | 0~100% |

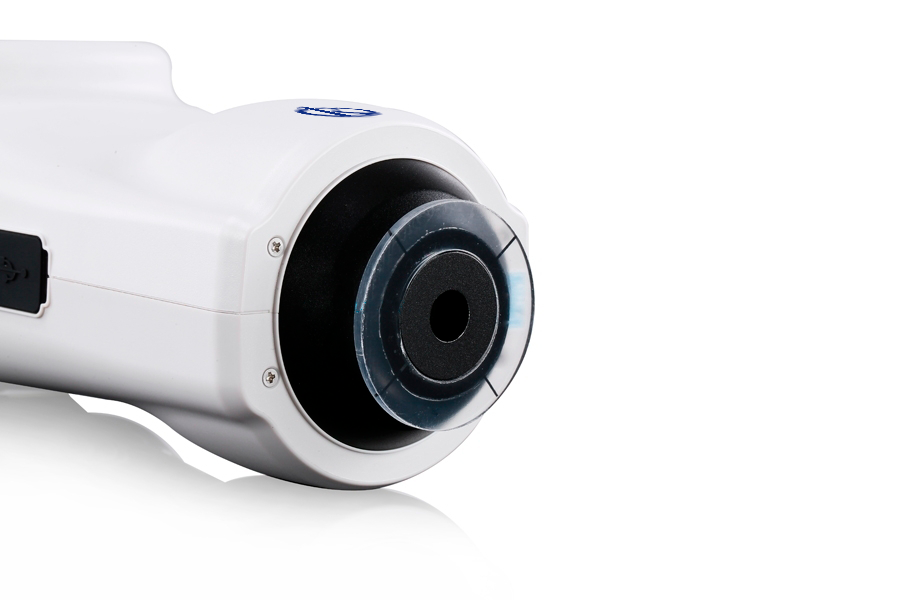

Measuring Aperture | Φ8mm |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV |
Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 v |
Other Chromaticity Data | Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)， Yellowness-YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt) Colour Stain, Color Fastness, Color Strength, Opacity |
Observer | 2°/10° |
Illuminant | D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
Measurement Time | 1.5s |
Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
Inter Instrument Agreement | Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
Dimension | L*W*H=90*77*230mm |
Weight | 600g |
Battery | Li-ion battery. 5000 times within 8 hours. |
Lamp Life | 5 years, more than 1.6 million measurements |
Display Screen | TFT 3.5inch, Capacitive Touch Screen |
Interface | USB/RS-232 |
Data Memory | 1000 Standards, 10000 Samples |
Operating Temperature | 0~40℃(32~104°F) |
Storage temperature | -20~50℃(-4~122°F) |

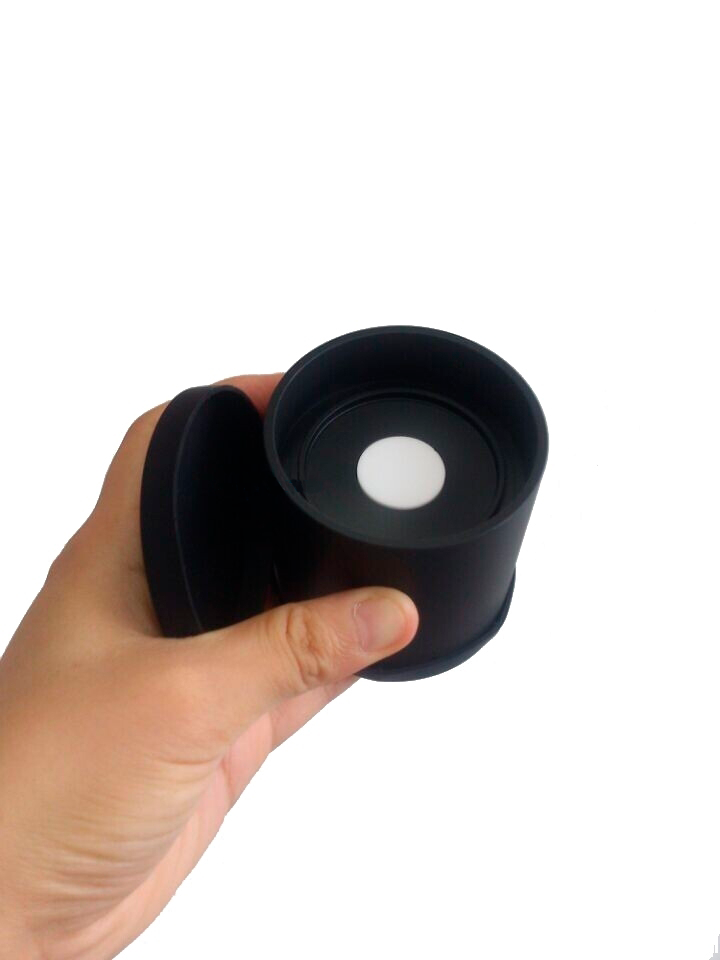

Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
Optional Accessory | Micro Printer, Powder Test Box |
Notes | The specifications are subject to change without notice. |
Technical specifications
| Weight | 3 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Video Handheld Color Spectrophotometer YR05496
Frequently asked questions
How to know the prices of Handheld Color Spectrophotometer YR05496?
To know the price of Handheld Color Spectrophotometer YR05496, please send us an email with your request through the contact form AQUI.
What are the delivery times for Handheld Color Spectrophotometer YR05496?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Handheld Color Spectrophotometer YR05496?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Handheld Color Spectrophotometer YR05496?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Handheld Color Spectrophotometer YR05496?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
