Description
YR05895 – YR05896 is a microprocessor-controlled device with LCD, can control the temperature precisely, which greatly shortens the experimental time and improves the efficiency. It can be widely used in samples cultivation, preservation and reaction. It has multi-purpose functions such as heating and custom programs to meet the needs of different users.
Features:
- 5 stored-programs, each can run seperately, also can be linked and cycled
- A variety of alloy aluminum blocks easy to change
- Fast heating speed, precise and stable
- Controlled by PID, high accuracy and good conformity
- LCD display with timer and temperature
- Temperature calibration
- Buzzer alarm after program over
Technical Specification:
| Model | YR05895 | YR05896 |
| Temperature control mode | Semi-conductor | Heating membrane |
| Temperature control range | RT-30℃ ~100℃ | RT+5℃ ~100℃ |
| Temperature accuracy | ±0.3℃ | |
| Temperature Stability @40℃ | ±0.3℃ | |
| Temperature Stability @100℃ | ±0.3℃ | |
| Timer | 0~99h 59m | |
| Display accuracy | 0.1℃ | |
| Heating Up Rate | ≤ 15min( 20℃ to 100℃ ) | |
| Max.Temperature | 100℃ | |
| Cooling Down Rate | ≤ 30min 100-25℃ ≤ 30min Cooling down 30degrees from room temperature (test under RT26℃） | — |
| Power | 130W | 150W |
Optional Accesories:
| Type | Capacity | Max. Temperature | Description |

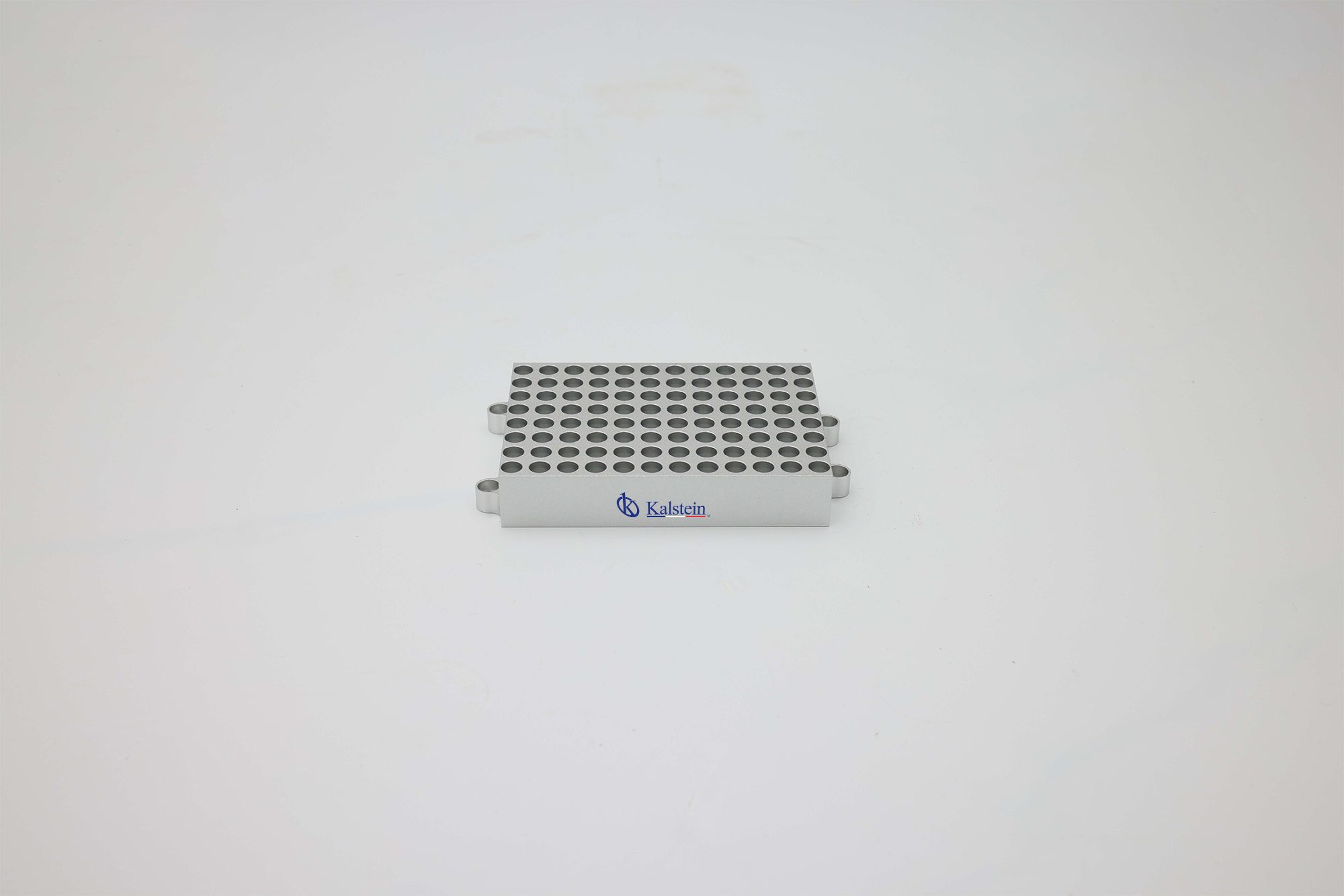

| YR05896-op1 | 96×0.2ml PCR plate | 100℃ | Centrifuge Tube |

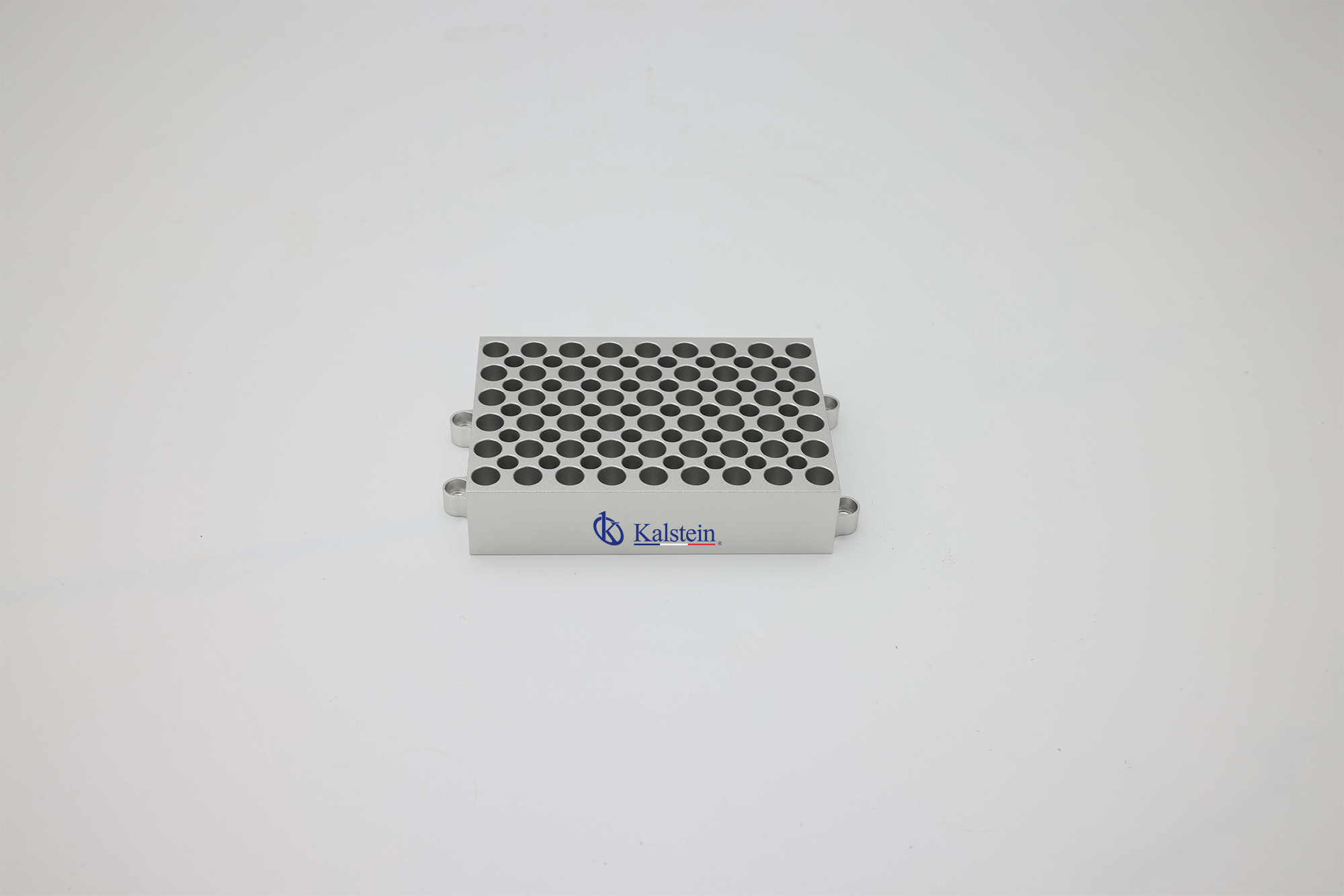

| YR05896-op2 | 54×0.5ml tubes | 100℃ | Centrifuge Tube |

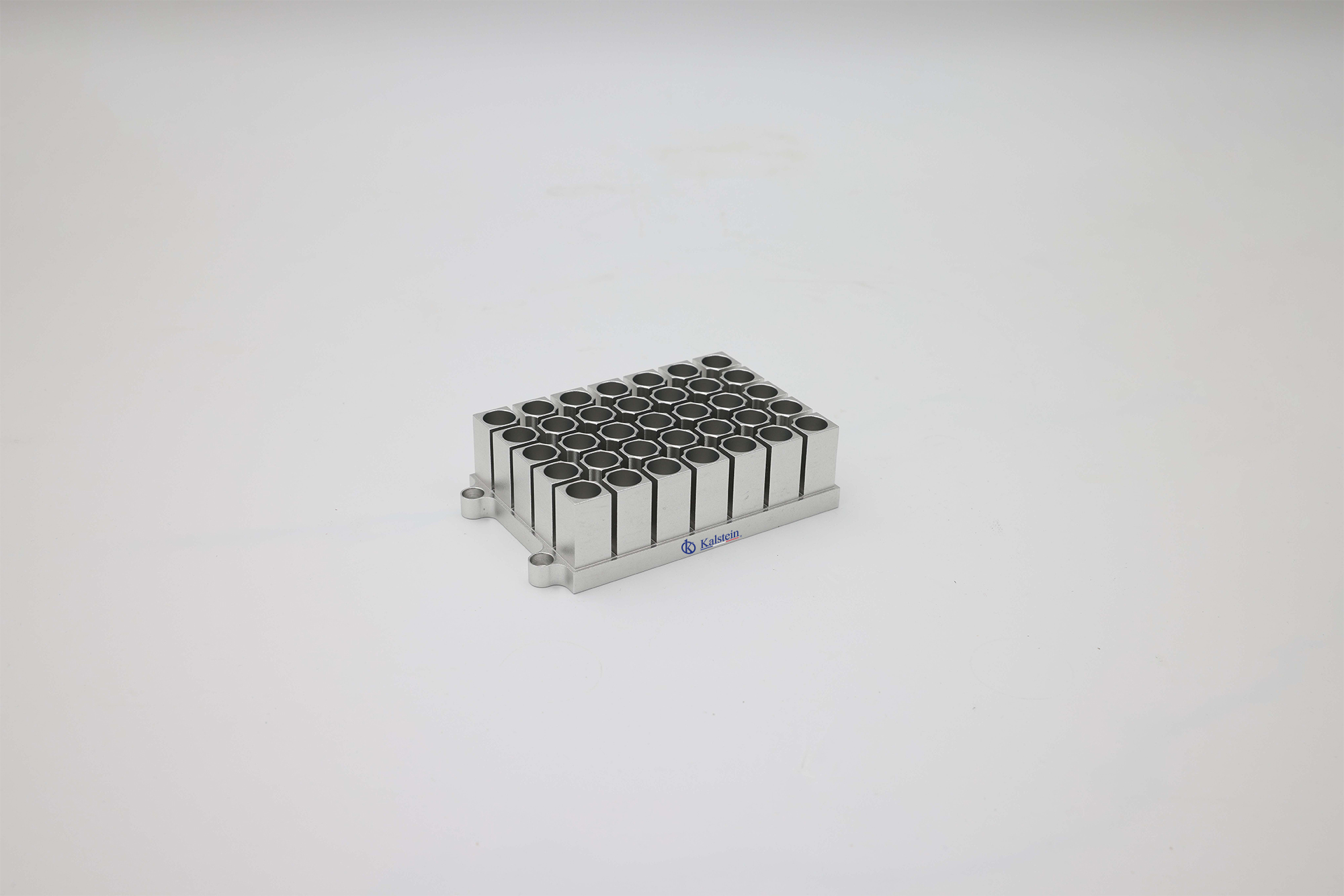

| YR05896-op3 | 35×1.5ml tubes | 100℃ | Centrifuge Tube |
| YR05896-op4 | 35×2.0ml tubes | 100℃ | Centrifuge Tube |

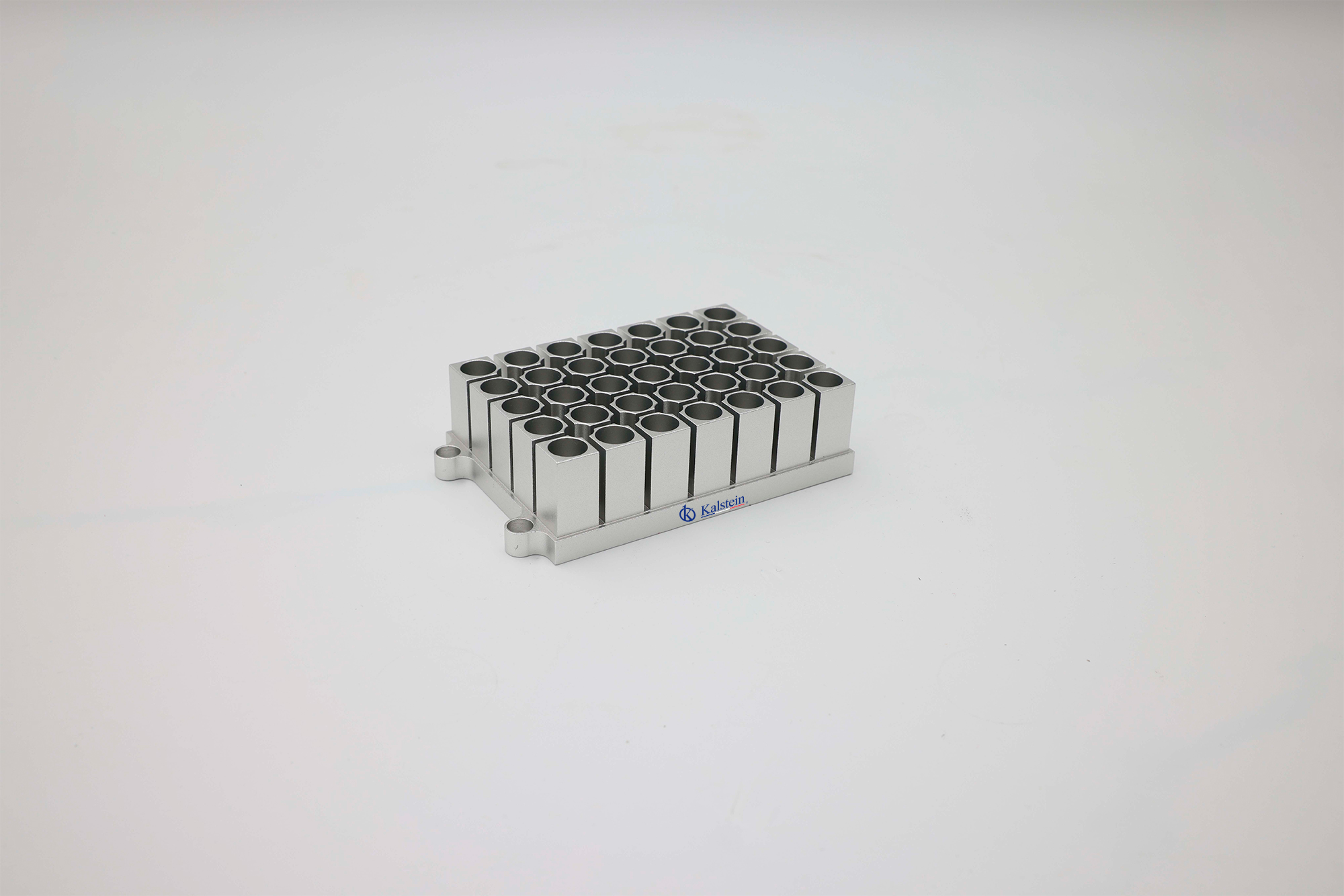

| YR05896-op5 | 20×0.5ml+15×1.5ml tubes | 100℃ | Centrifuge Tube |

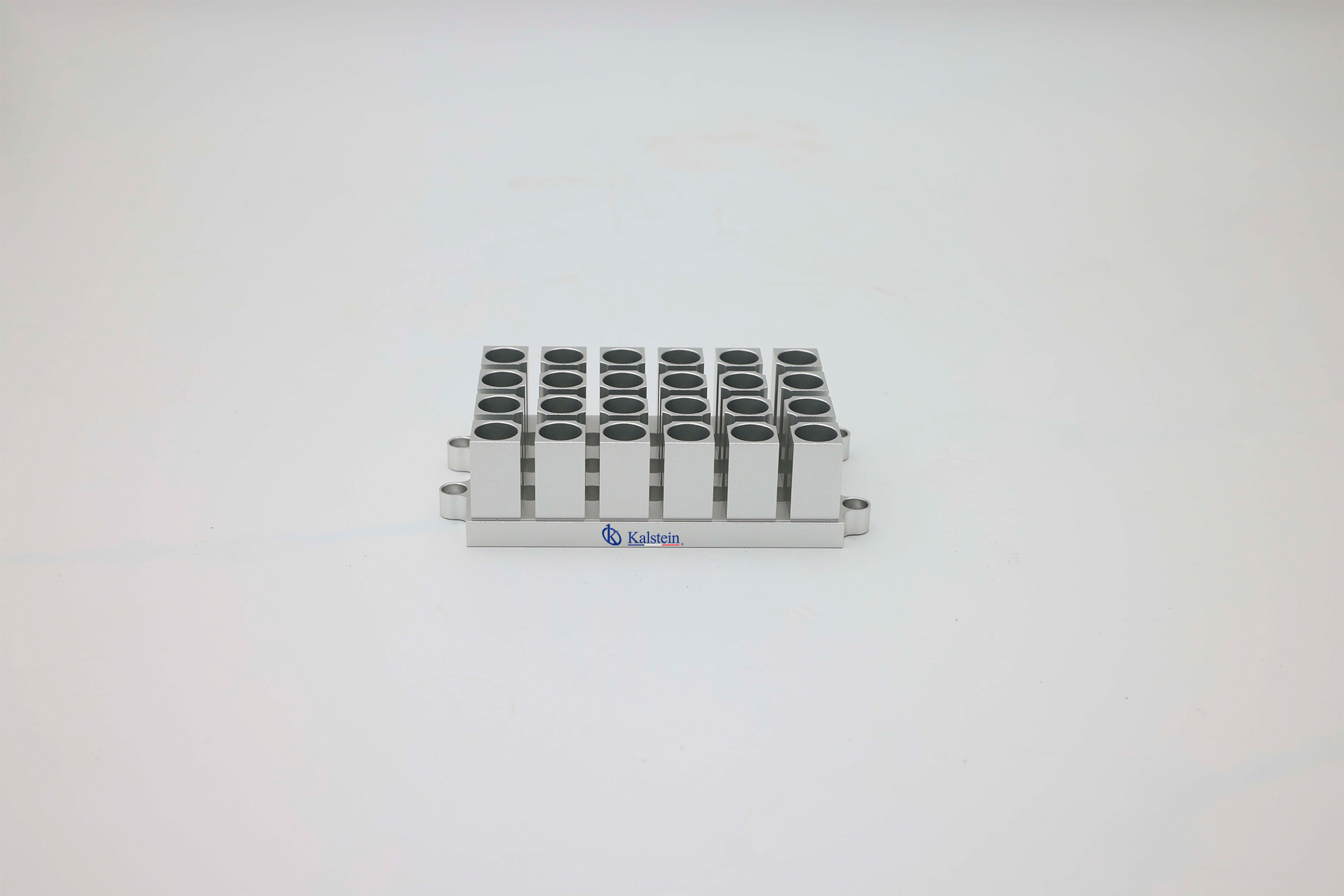

| YR05896-op6 | 24×φ12mm tubes | 100℃ | Centrifuge Tube |

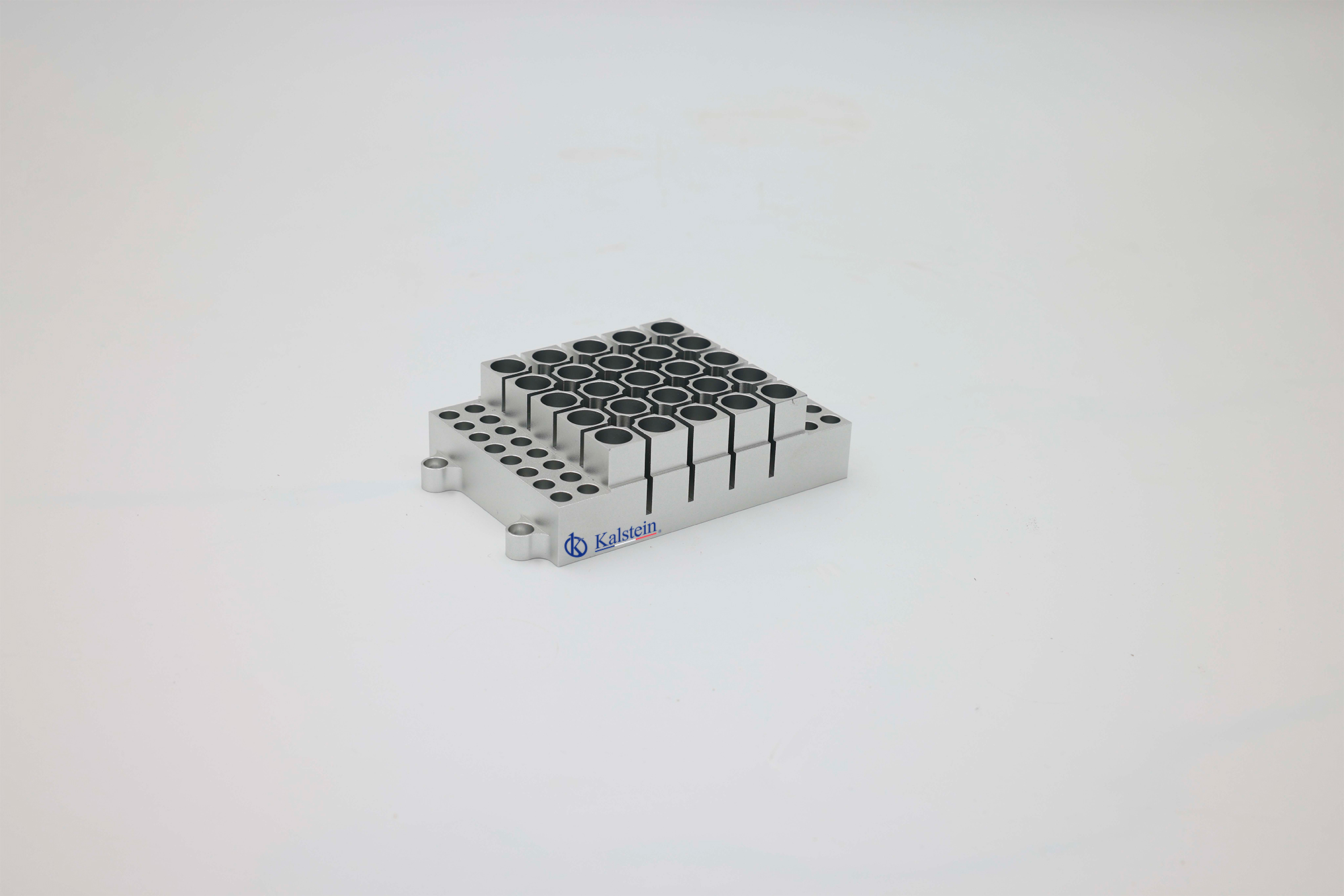

| YR05896-op7 | 32×0.2ml+25×1.5ml tubes | 100℃ | Centrifuge Tube |

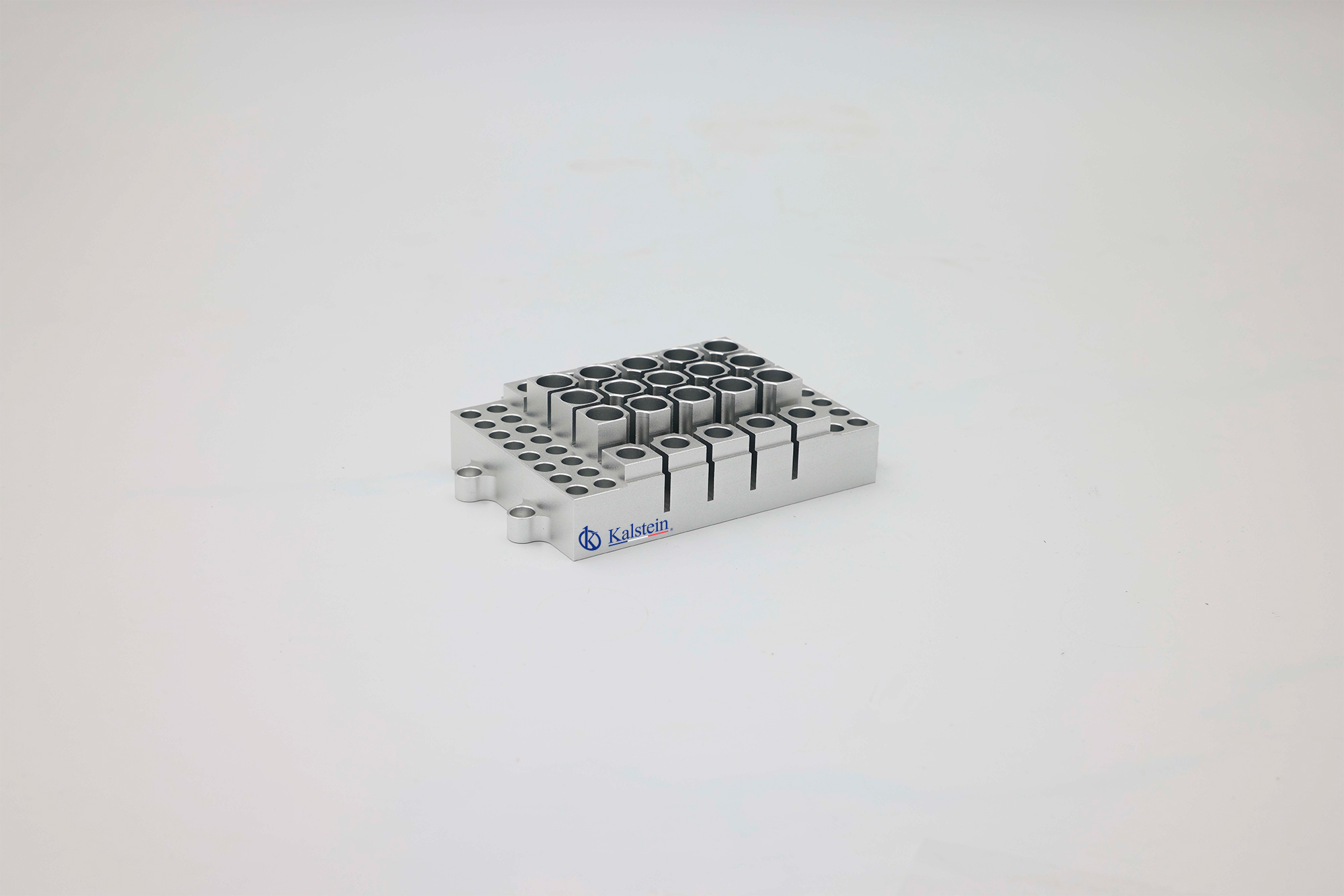

| YR05896-op8 | 32×0.2ml+10×0.5ml+15×1.5ml tubes | 100℃ | Centrifuge Tube |
| YR05896-op9 | 103×67×30 (water tank) | 100℃ | Water Tank |
| YR05896-op10 | 96×0.2ml Elisa (Flat bottom) | 100℃ | Plate (Flat Bottom) |
| YR05896-op11 | 24×5ml tubes | 100℃ | (Speed≤600rpm) |
| YR05896-op12 | 12×15ml tubes | 100℃ | (Speed≤600rpm) |
| YR05896-op13 | 6×50ml tubes | 100℃ | (Speed≤600rpm) |
| YR05896-op14 | 12×10ml tubes | 100℃ | (Speed≤600rpm) |
| YR05896-op15 | Lid | 100℃ | Used with YR05896-op1–YR05896-op9 |
| YR05896-op16 | Lid | 100℃ | Used with YR05896-op10–YR05896-op11 |
| YR05896-op17 | Lid | 100℃ | Used with YR05896-op12–YR05896-op14 |
