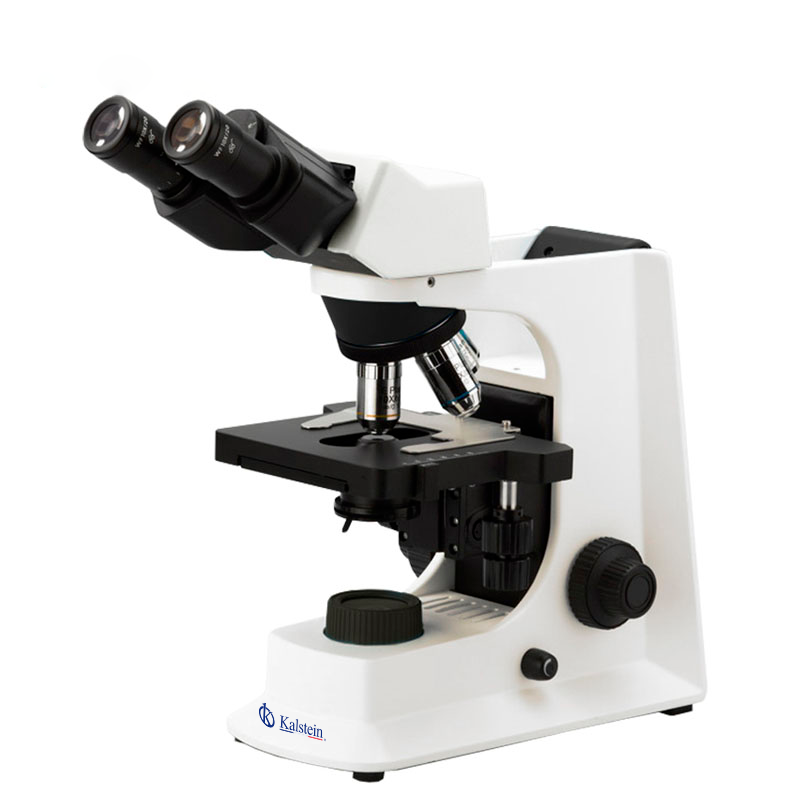

Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 is a state-of-the-art microscope designed for professional laboratory use. Featuring an inclined 30° and rotatable 360° seidentopf head, it allows a comfortable viewing experience with adjustable interpupillary distance between 48-75mm, ensuring ease of use for different sitting positions. It includes high eyepoint eyepieces integrated into the design, reducing the risk of contamination and enhancing the microscope's overall performance. This model comes with four sets of objectives: achromatic, plan, infinity e-plan, and infinity plan, offering flexibility for various magnification needs. Moreover, the microscope boasts a mechanical stage with a size of 145x140mm and a travel capacity of 76x52mm, equipped with a high-precision scale of 0.1mm. The high-quality Abbe condenser with N.A.1.25 and LED illumination further ensures bright, clear observations. With these features, this microscope stands out as an excellent choice for detailed research and observation tasks.
Market Price
The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 typically falls within the price range of $700 to $1500 in the market. This competitive range reflects the advanced features and precision engineering that this microscope offers, making it a valuable investment for laboratories requiring reliable equipment for biological observations.
Frequently Asked Questions
What are the differences between the YR05787 and YR05788 models?
The primary difference lies in the head type; YR05787 features a binocular head, while YR05788 offers a trinocular option with a light split function for camera integration.
Can this microscope be used for educational purposes?
Yes, its versatile features make it ideal for both professional laboratory and educational settings, allowing detailed study and demonstration of biological samples.
Advantages and Disadvantages
Advantages: The microscope offers versatile magnification options, user-friendly ergonomic design, and high-quality optics. Its integrated eyepiece design minimizes contamination risk, and the LED illumination provides clear, bright images.
Disadvantages: The microscope may require additional accessories for specific applications, and the initial investment can be considerable for smaller institutions.
Field Usage
This microscope is highly valuable in various practical scenarios, such as medical research, biological analysis, and educational demonstrations. Its precision objectives and stable mechanical stage ensure detailed and accurate observations, whether in a professional lab or a university classroom.
Recommendations
To maintain optimal performance of the Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788, it is recommended to regularly clean the lenses and stage, ensuring clear and accurate observations. Use only compatible accessories to avoid damaging the optical components. For extended outdoor fieldwork, the microscope supports power bank supply, adding to its versatility.
Features
- Inclined 30°, Rotatable 360° head
- Interpupillary Distance: 48-75mm
- High Eyepoint Eyepiece
- Mechanical Stage Size: 145 mm×140mm
- Abbe Condenser N.A.1.25 with Iris Diaphragm
- 3W-LED Illumination System
- Infinity Plan Objectives for diverse magnification needs
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |

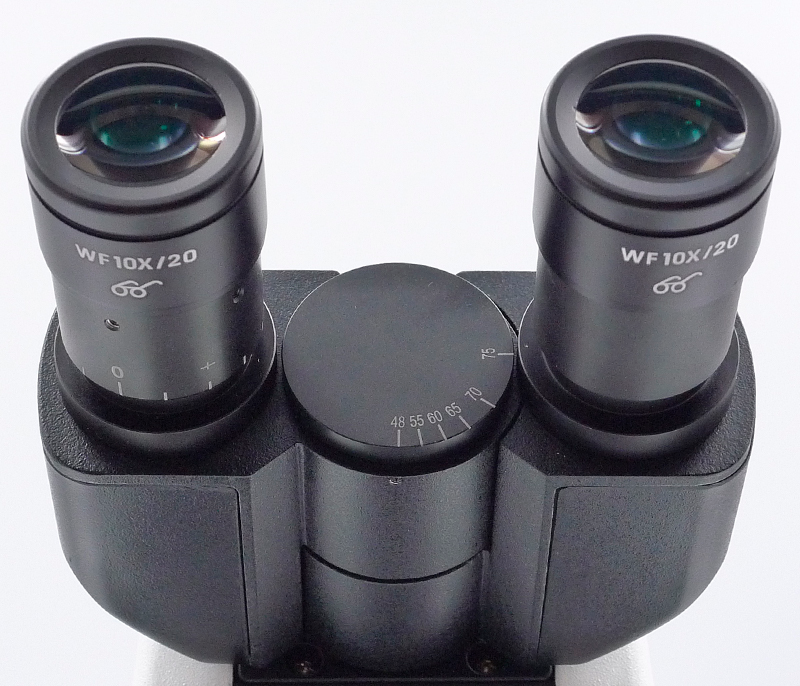

| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

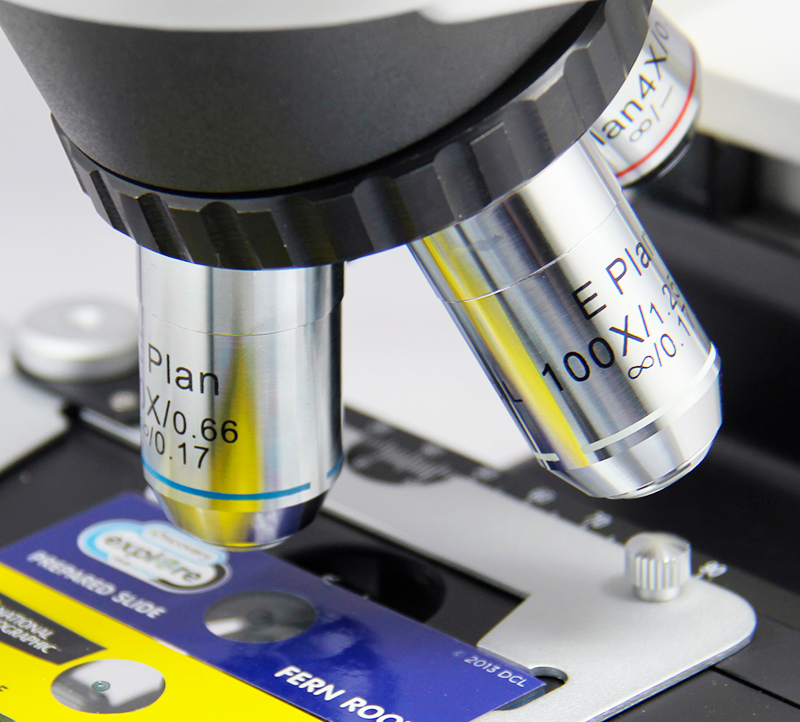

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |
| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

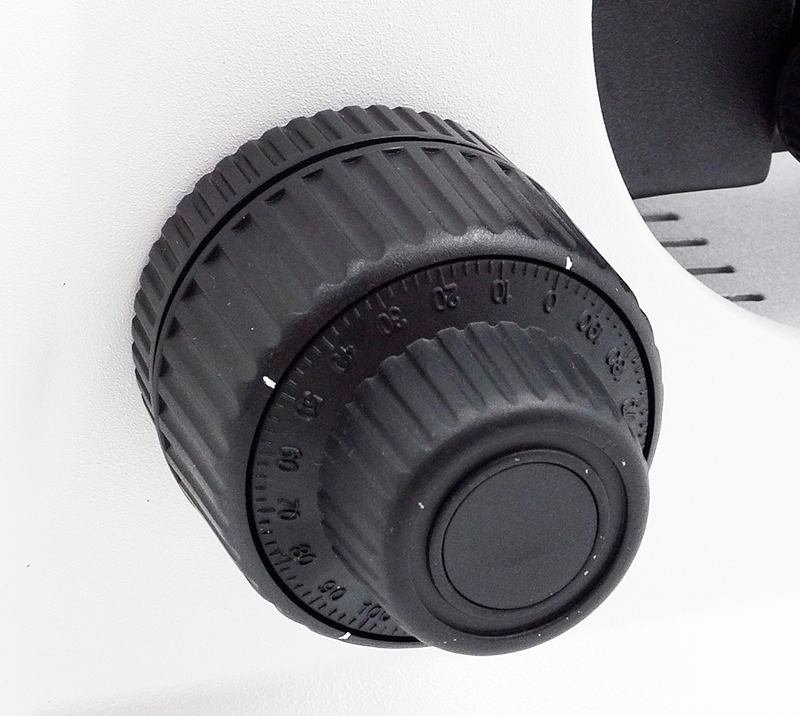

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

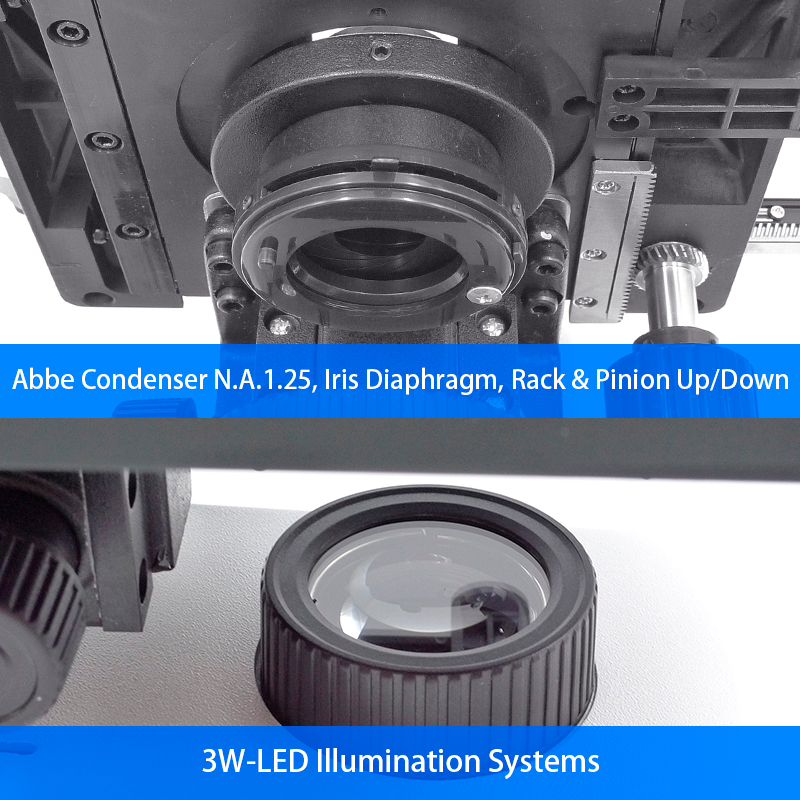

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

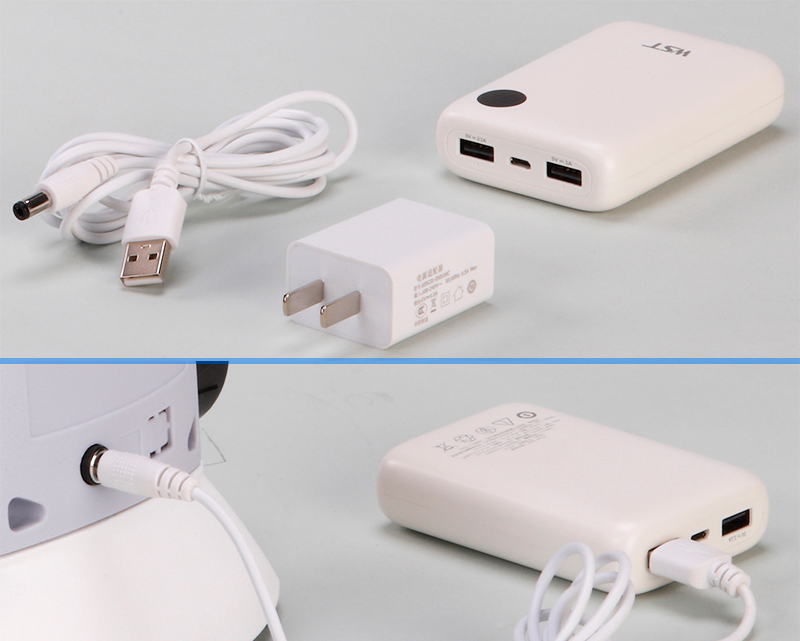

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |

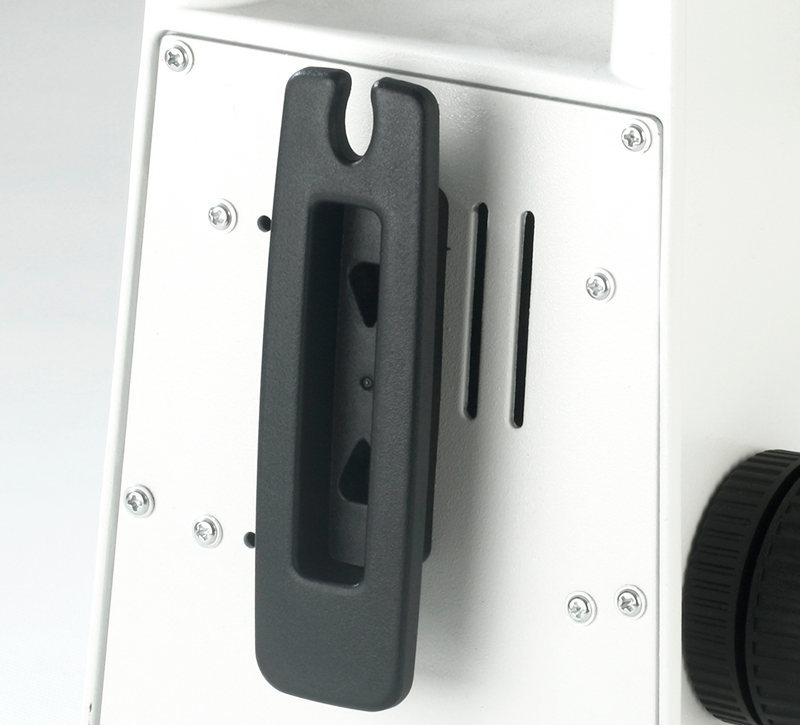

| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Weight | 8.5 kg |
|---|---|
| Manufacturer | Kalstein |
