Description

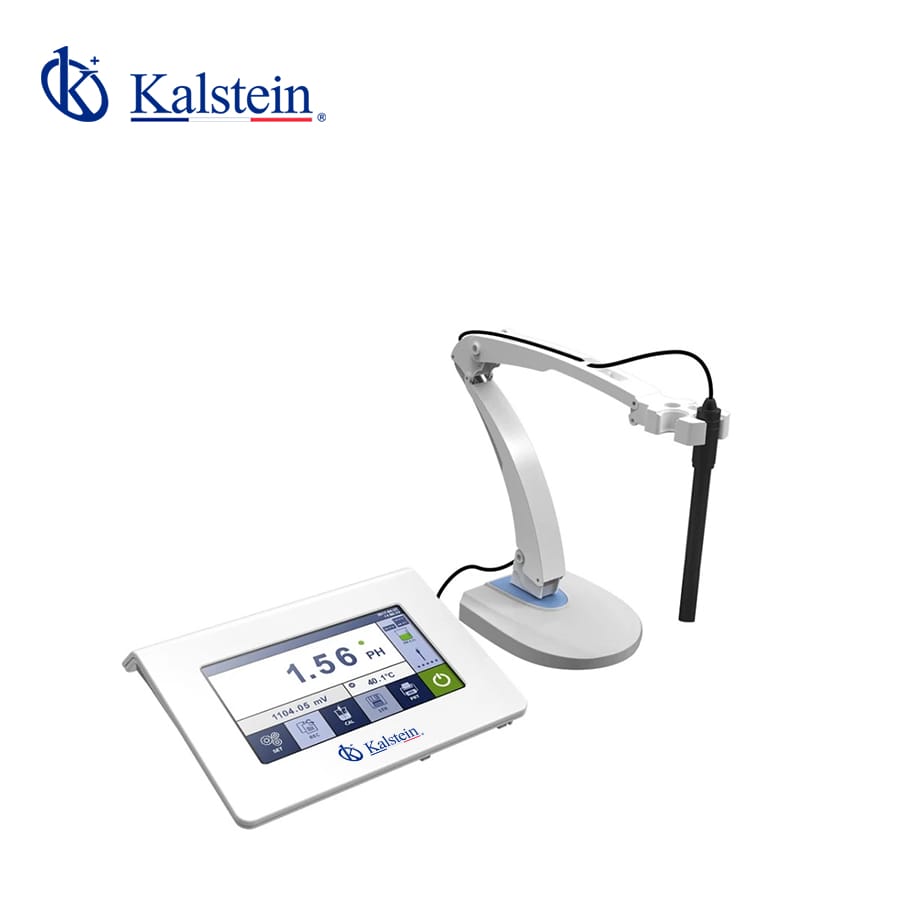

The Benchtop pH/Conductivity/DO Meter YR06385 is a state-of-the-art analytical instrument designed to deliver precise measurements across pH, conductivity, and dissolved oxygen parameters. With its 7-inch colored capacitive touch screen, users can navigate its functionalities effortlessly while benefiting from its high resolution and sensitivity. This versatile device supports wireless Bluetooth printing and PC connectivity, allowing seamless data transfer and real-time monitoring, optionally even to mobile devices. Moreover, thanks to its intelligent microprocessor, the YR06385 comes equipped with features like automatic calibration, automatic temperature compensation (ATC), and data storage capabilities for up to 1000 test sets, securely exportable to a USB memory stick.
Market Overview
In the competitive landscape of analytical instruments, the Benchtop pH/Conductivity/DO Meter YR06385 stands out in terms of functionality and precision. While similar devices can be found with prices ranging from $1500 to $2300, the YR06385 offers an excellent balance of cost and advanced features, making it a preferred choice among professionals in pharmaceuticals, environmental monitoring, and industrial applications. To learn more about pricing or to request a precise quotation, users are encouraged to explore the Kalstein Plus platform for automatic quote generation.
Frequently Asked Questions
What types of calibration does the meter support? The YR06385 supports multiple calibration options with auto recognition of 25 buffers, including Europe & USA, NIST, and China standards, suitable for 1, 2, or 3-point calibration.
Is the device compatible with mobile devices? Yes, the device supports optional real-time data transfer to mobile phones via Bluetooth.
Advantages and Disadvantages
The YR06385 meter’s advantages include its robust touch interface, extensive data storage, and versatile measurement capabilities. However, its reliance on technology may present challenges to users unfamiliar with advanced electronics. Additionally, while it offers a wide measurement range, specific environments might require model adjustments for optimal performance.
Product Usage in Field
In practical field scenarios, the Benchtop Meter YR06385 is ideal for laboratories requiring precise, multi-parametric measurements. Its easy calibration and real-time data transfer functionality allow researchers to gather and analyze data efficiently, enhancing productivity and accuracy in research and quality control processes.
Recommendations
To maintain the YR06385 in optimal condition, regular calibration checks are advised, especially in varying environmental conditions. It’s recommended to keep the device’s firmware updated and leverage the Bluetooth functionality for seamless integration with laboratory information management systems (LIMS).
Features
- 7-inch colored capacitive touch screen
- Smart electrode status display
- Wireless Bluetooth printing and PC connection
- Auto calibration and real-time data management
- Comprehensive measurement options for pH, conductivity, and DO
Technical Specifications
| Model | YR06385 | |
|
pH
|
Measurement range | (-1.999 ~ 19.999)pH |
| Resolution | 0.1/0.01/0.001 pH | |
| Accuracy | Electrode: ±0.002 pH, Meter: ±0.01 pH | |
| Input current | ≤1×10-12 A | |
| Input impedance | ≥3×1012 Ω | |
| Stability | ±0.002 pH/3h | |
| Temperature compensation | (0 ~ 100)ºC, auto or manual | |
|
mV
|
Measurement range | -1999.9mV ~ 0 ~ 1999.9mV |
| Resolution | 0.1 mV | |
| Accuracy | ±0.03% FS | |
|
Conductivity
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm | ||
| (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm | ||
| (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| (200~2000)mS/cm(K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation range | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
DO
|
Measuring range | (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC (automatic) | |
| Salinity compensation | (0 ~ 45) ppt (automatic) | |
| Pressure compensation | (80 ~ 105) kPa (automatic) | |
| Automatic calibration | Air saturated by water; water saturated by air | |
| Electrode type | Polarographic | |
|
Temperature
|
Range | (-10 ~ 110)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other Parameters
|
Display | 7-inch colored capacitive touch screen |
| Data storage | 2000 sets | |
| Power | 12V (110-220, 50-60Hz adapter) | |
| Communication interface | USB, RS232, Bluetooth | |
| Dimensions&Weight | 240×170×70mm/600g | |
|
Working Conditions
|
Temperature | 15 ~ 30 ºC |
| Humidity | ≤85% | |
| IP grade | IP54 | |
