Bedside Monitor YR02174
Bedside Monitor YR02174 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

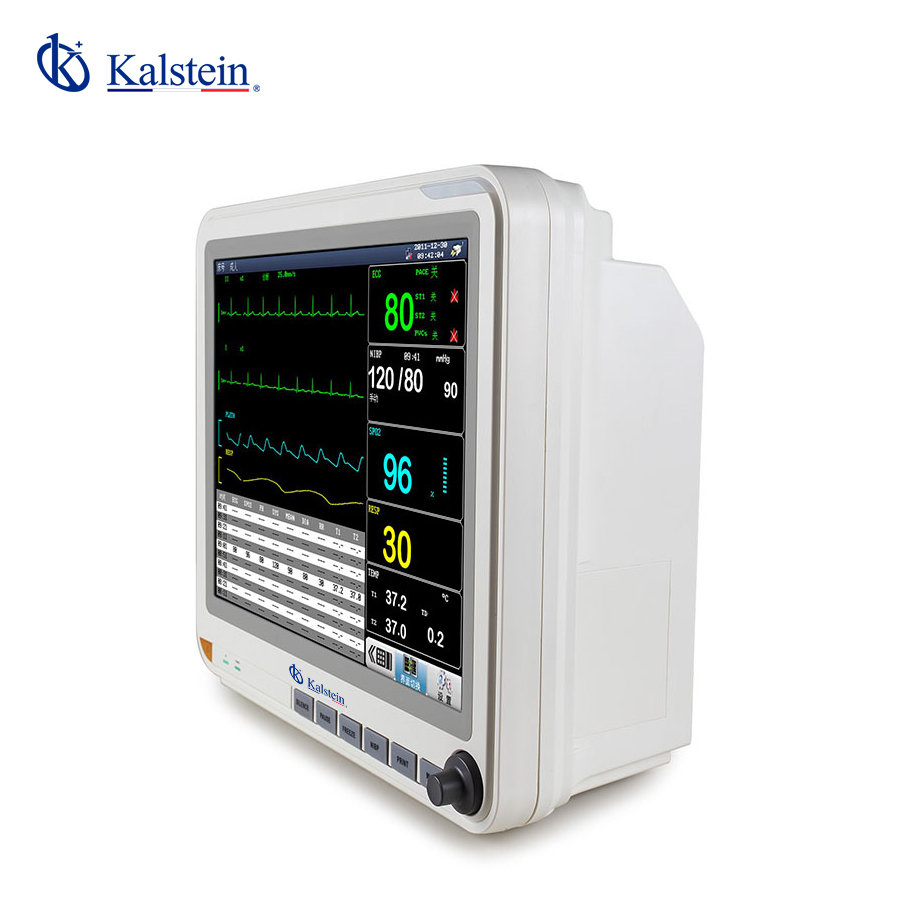

The Bedside Monitor YR02174 is an advanced 15-inch multi-parameter patient monitor designed for comprehensive patient monitoring in various clinical settings. It features a standard configuration that includes SpO2, RESP, NIBP, PR/HR, ECG, and dual TEMP measurement capabilities. For adaptability, it offers optional configurations such as a 12-lead ECG, IBP, ETCO2, printer, touch screen, and various mounting solutions like wall mount and trolley. With its user-friendly design, the YR02174 ensures accurate and efficient patient data management, making it an ideal choice for healthcare professionals.
Market Price
The Bedside Monitor YR02174 falls into the mid-range category of patient monitors, with prices typically ranging from $900 to $1,800 USD, depending on the options and configurations selected. This range ensures accessibility for a wide range of healthcare facilities looking to balance budget considerations with high-quality monitoring capabilities.
Frequently Asked Questions
- What are the main features of the YR02174 model? - The YR02174 includes features like SpO2, RESP, NIBP, PR/HR, ECG, and temperature monitoring, with options for 12-lead ECG and other extensions.
- Is the YR02174 suitable for both adult and pediatric patients? - Yes, the device supports monitoring for adults, children, and neonates.
- How is the device powered? - The YR02174 is designed for continuous operation using AC power, with backup battery options available.
Advantages and Disadvantages
Advantages: The YR02174 offers a robust set of features for comprehensive patient monitoring, is customizable with multiple configurations, and includes a large 15-inch display for ease of use. Disadvantages: The need for additional optional modules might increase the initial investment cost, and training may be required for optimal use of its advanced features.
Product Use in the Field
The Bedside Monitor YR02174 is widely used in hospitals, clinics, and emergency care units to monitor vital signs and provide real-time patient data to healthcare professionals. Its versatility allows it to adapt to different patient needs, from routine monitoring to critical care applications.
Recommendations
To maximize the functionality of the Bedside Monitor YR02174, ensure regular maintenance by qualified technicians and take advantage of the optional modules to tailor the monitor's capabilities to meet specific clinical needs. Users are encouraged to familiarize themselves fully with the monitor’s interface and features to enhance patient care.
Features
- 15-inch color display
- Multi-parameter tracking: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
- Customizable options including 12-lead ECG, IBP, ETCO2, and more
- Multiple mounting options for flexible usage
- User-friendly interface with touch screen capability
Technical Specifications
| Model | YR02174 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
Technical specifications
| Dimensions | L 46 × W 29.5 × H 41 cm |
|---|---|
| Weight | 6.5 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Bedside Monitor YR02174?
To know the price of Bedside Monitor YR02174, please send us an email with your request through the contact form AQUI.
What are the delivery times for Bedside Monitor YR02174?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Bedside Monitor YR02174?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Bedside Monitor YR02174?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Bedside Monitor YR02174?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
