Automated microtome YR415-1
The Automated Microtome YR415-1 is designed with advanced features, offering stable and reliable performance and ease of…
Biological tissue freeze embedding machine {6 liters, with cooling plate} YR448
The Biological Tissue Freeze Embedding Machine YR448 is an advanced solution for histological and pathological laborator…
Automatic Tissue Processor YR429
The Automated Tissue Processor YR429 is an essential tool in histology and pathology laboratories, designed to improve t…
Tissue Inclusion Center YR445
The YR445 Tissue Embedding Center is a complete paraffin dispensing unit, including a 4-liter paraffin container, a heat…
undefined
The Automated Microtome YR415-1 is designed with advanced features, offering stable and reliable performance and ease of use. This streamlined machine incorporates a smart control feeding system, allowing quick switching between manual or automated intelligent sectioning modes. The automatic slicing speed is adjustable, ensuring precise and consistent cuts. With its advanced drive systems and multiple functionalities, including trimming, fast forwarding, quick back conversion, fast mode, and automatic retraction, the YR415-1 guarantees superior sectioning performance.
This model features an international advanced screw movement mechanism, ensuring precision in sectioning.
| Model | YR415-1 |
| Type | Rotary |
| Mode of use | Automatic |
| Maximum Specimen Size | 70 x 70 mm |
| Minimum Setting of Sectioning Thickness | 0.25μm |
| Horizontal Feed | 28mm |
| Vertical Specimen Stroke | 70mm |
| Specimen Holder Rotation | At any angle within 360 degrees |
| Movement Range of the Base of Blade
Holder Base |
0-60mm (front to back) |
| Movement Range of the Blade Press plate | 0-23mm |
| Specimen Clamp Rotation | At any angle within 360 degrees |
| Specimen Orientation | XY – 8° |
| Maximum Specimen Size | 70×70mm |
| Feed speed adjust | 1500μm/s ~ 3500μm/s |
| Precision Error | ±1% |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 150W |
| Dimensions | 580× 475× 340 mm (W×D×H) |
| Net Weight | 41kg |
undefined
The Innovative Cooling Plate: A Must-Have for Pathological Labs
The Cooling Plate by Kalstein represents a significant leap forward in laboratory technology, offering a solution that is both effective and efficient for maint…

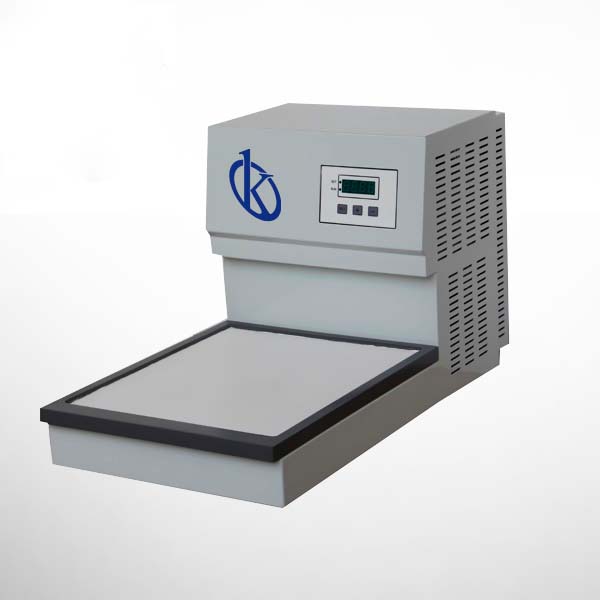

Innovative Tissue Embedding Systems in Pathological Anatomy: Elevating Laboratory Efficiency
In the medical and research fields, the precision and effectiveness of your tools can make all the difference. Kalstein’s Tissue Embedding Systems play a…

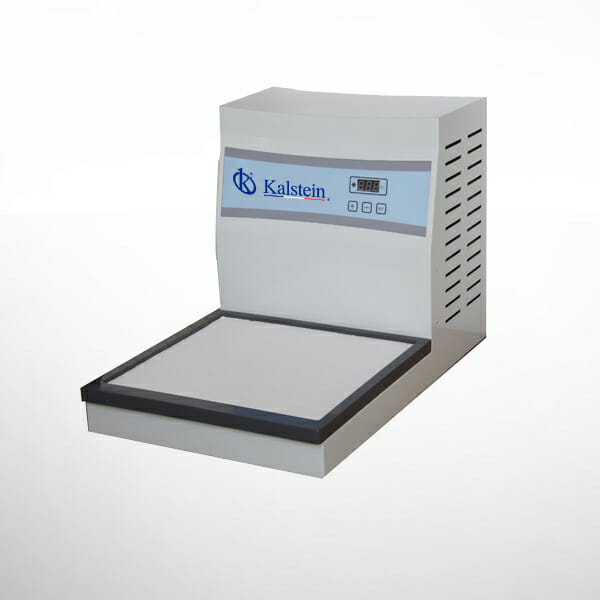

An Insight into Pathological Anatomy: Exploring the Products and Their Impact
Pathological anatomy is a critical field that offers profound insights into disease mechanisms through meticulous examination of tissue samples. With numerous b…

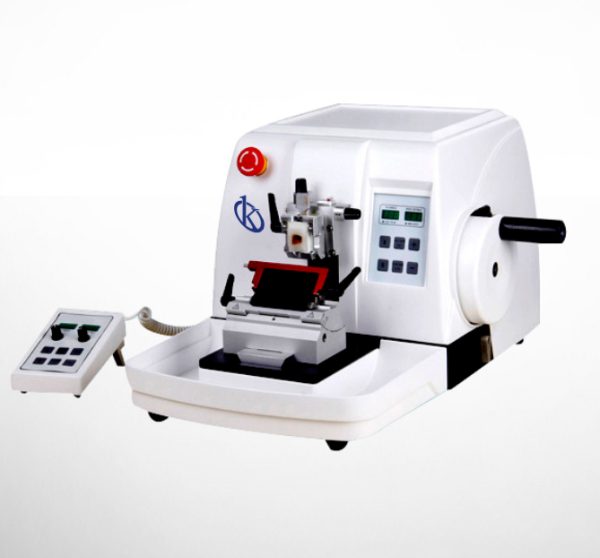

The Versatile Microtomes Series: Precision Tools for Pathological Anatomy
The Microtomes Series from Kalstein stands out as a linchpin in the world of pathological anatomy. This series is heralded for its precision and reliability, dr…
Catalog of models on offer
YR06699-YR06700 Slide Drying Cabinet
Tissue Inclusion Center YR445
Inclusion Center YR439-1
YR440B Biological Tissue Freezer
Biological tissue freeze embedding machine {6 liters, with cooling plate} YR448
Tissue Embedding & Cooling System YR441
Tissue Embedding & Cooling System YR447
Tissue Embedding Center YR439
undefined
undefined
undefined
Advances in Pathological Anatomy: Diagnostic Precision for Clinical Studies
Pathological anatomy has evolved tremendously in recent years, allowing for more precise diagnoses and improving clinical study techniques.
Advances in Pathological Anatomy: Precision Diagnosis for Complex Diseases
Pathological anatomy has revolutionized disease diagnosis, enabling a level of precision that was once unimaginable. As a professional in the field, I…
Anatomical Pathology: Accurate Diagnosis for Biomedical Research
Anatomical pathology is a key discipline in the field of biomedical research, enabling the precise identification of various pathologies through the s…

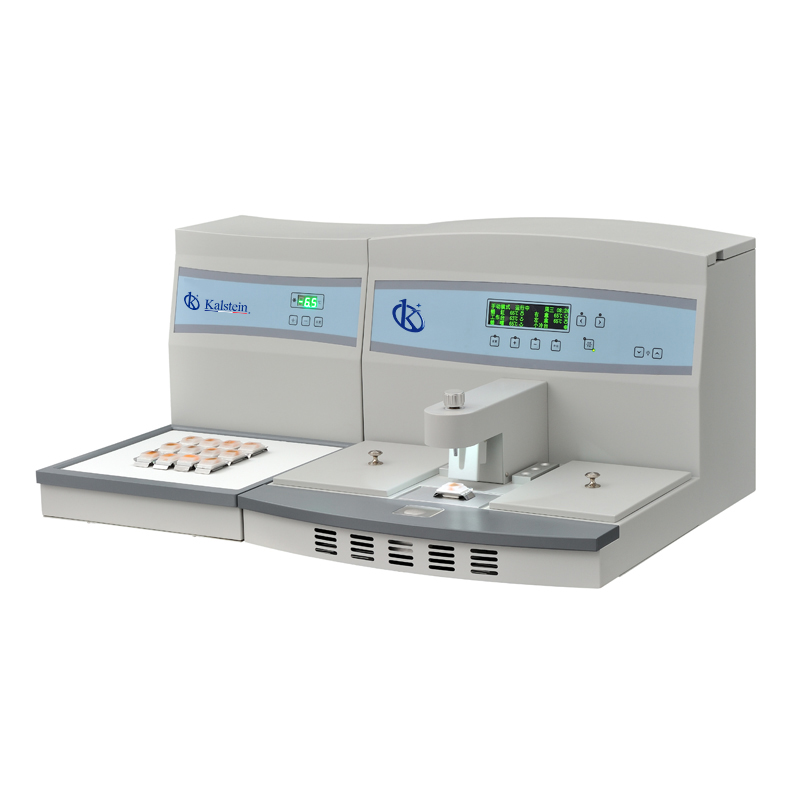

Advances in Diagnosis and Treatment of Diseases with Pathological Anatomy
