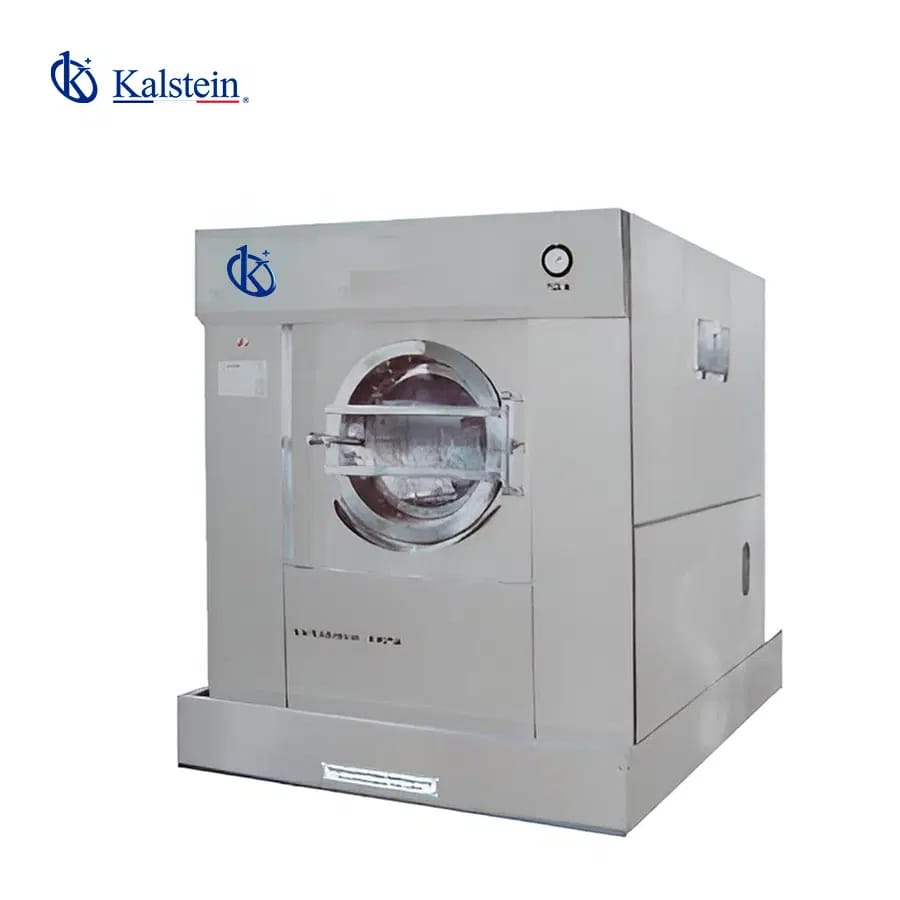

Installation and Commissioning Guide for the YR06301 150KG Tilt Washing Machine
The YR06301 is a state-of-the-art 150KG Tilt Washing Machine designed for high efficiency and durability in industrial settings. This guide will walk you through the essential steps for installation and commissioning, ensuring that this powerful machine operates at its peak performance.
Overview of the YR06301 Washing Machine
The YR06301 combines both internal and external drums, a rotating lifting bearing system, shock-absorbing springs, an impact reducer, and a lifting cylinder. It is engineered to provide high extraction efficiency with adjustable speeds tailored to different material types. Its robust stainless steel construction ensures excellent corrosion resistance and exceptional durability, making it suitable for demanding industrial applications.
Technical Specifications of the YR06301
| Specification | Value |
|---|---|
| Model | YR06301 |
| Rated Capacity | 150 kg |
| Drum Dimension | 1470-880 mm |
| Motor Power | 18.5 kW, 1440 r/min |
| Washing Speed | 38 r/min |
| Extracting Speed | 48-580 r/min |
| Dimensions | 2500 x 2280 x 2280 mm |
| Weight | 5000 kg |
Unboxing and Initial Setup
Upon receiving your YR06301, follow these steps to ensure proper unboxing and initial setup:
- Unboxing Checklist: Verify that all components are included, such as the main washing unit, power cables, inlet hoses, and installation manual.
- Inspection: Check for any visible damage during transit. Report any issues to the supplier immediately.
- Location Preparation: Ensure the installation area is level, spacious, and has access to necessary utilities such as water, power, and drainage.
Anchoring and Leveling the Machine
It is crucial to anchor and level the YR06301 properly:
- Anchoring: Use the provided anchor bolts to secure the washing machine to the floor, ensuring stability during operation.
- Leveling: Adjust the leveling feet until the machine is perfectly level. Use a spirit level for accuracy.
Power-Up Sequence and Calibration
To ensure a successful power-up and calibration:
- Electrical Connection: Connect the power supply, ensuring that the voltage matches the specifications mentioned in the technical data.
- Initial Power-Up: Turn on the machine and check for any error indicators on the display.
- Calibration: Follow the calibration steps outlined in the manual, ensuring that all settings are correctly adjusted for optimal performance.
Common Setup Mistakes and How to Avoid Them
To prevent common installation issues, consider the following:
- Avoid improper anchoring, which can lead to vibrations and noise during operation.
- Ensure the machine is level; an unlevel machine can affect washing efficiency and cause wear.
- Double-check electrical connections and water supply before the first run.
Final Checks Before First Run
Before operating the YR06301 for the first time, conduct these checks:
- Ensure that all connections (water, power, drainage) are secure.
- Check the drum for any foreign objects or packing materials that may have been missed during unboxing.
- Run a test cycle with water to ensure that the machine operates smoothly without any leaks.
Frequently Asked Questions
What are the main features of the YR06301 washing machine?
The YR06301 features a high-capacity drum, adjustable washing and extracting speeds, and a robust stainless steel construction, making it perfect for heavy-duty washing tasks.
How do I adjust the washing speed on the YR06301?
The washing speed can be adjusted using the LS inverter, which allows for quick and precise modifications based on the material being processed.
What maintenance is required for the YR06301?
Regular maintenance includes checking for wear on the drum bearings, cleaning the water inlet filters, and ensuring that the exterior is free from corrosive substances.
Is the YR06301 suitable for all types of fabrics?
Yes, the machine is designed to handle various fabrics, but care should be taken to select the appropriate speed settings for delicate materials.
What should I do if the machine displays an error code?
Refer to the troubleshooting section in the manual for specific error codes. Common solutions include checking for clogs in the drainage system or verifying that the machine is level.
How can I request a quote for the YR06301?
To request a quote for the YR06301, please contact our sales team through the provided channels on our site.
What are the expected operational costs of the YR06301?
Operational costs will vary depending on water and energy rates; however, the YR06301 is designed for high efficiency, which helps minimize costs over time.
