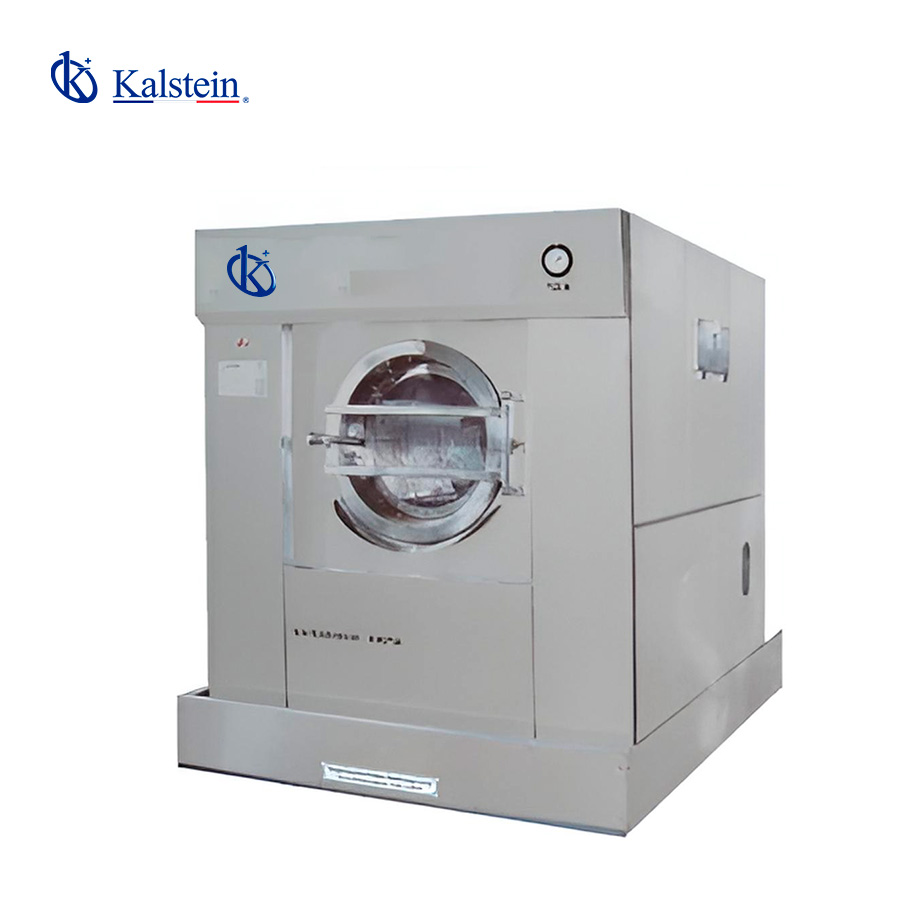

Tilt Washing Machine Steam/Electric YR06299//YR06301

ManufacturerKalstein

Description

  • The washer as a whole is composed of a combination of internal and external drums, a rotating lifting bearing system, damping springs, an impact reducer and a lifting cylinder, among other elements. Designed to provide high extraction efficiency, it offers four different speeds depending on the type of material being processed.
  • This speed regulation system, controlled by an LS inverter, allows precise and fast adjustments of both washing and extraction speeds, ensuring optimal protection of garments and other fabrics. In addition, thanks to its high quality stainless steel construction, this washer offers excellent corrosion resistance and exceptional durability for long and reliable performance.
Technical Specification
Model YR06299 YR06300 YR06301
Rated Capacity 100kg 130kg 150kg
Drum Dimension 1200-900mm 1300*985mm 1470-880mm
Door Size 650 or 700mm 720 or 800mm
Motor Power 9kw, 1440r/min 11, 1440r/min 18.5, 1440r/min
Washing speed 30 r/min 32 r/min 38 r/min
Extracting speed 600 r/min 650 r/min 48-580 r/min
Inverter Power 12kw 15kw 20kw
Inlet of Water 50inch 50inch 3inch
Inlet of Chemical 3/4inch 3/4inch 1inch
Inlet of Steam 1inch 1inch 1 1/2inch
Steam Pressure 0.4-0.6 Mpa
Water Pressure 0.2-0.3 Mpa
Drain Pipe 102 mm 114*2 mm 150 mm
Water consumption <=25 Vkg
Dimension 1700x2300x2000mm 1810x2520x2180mm 2500x2280x2280mm
Weight 4000kg 4500kg 5000kg

Additional information

Weight N/A
Model

YR06299, YR06300, YR06301
