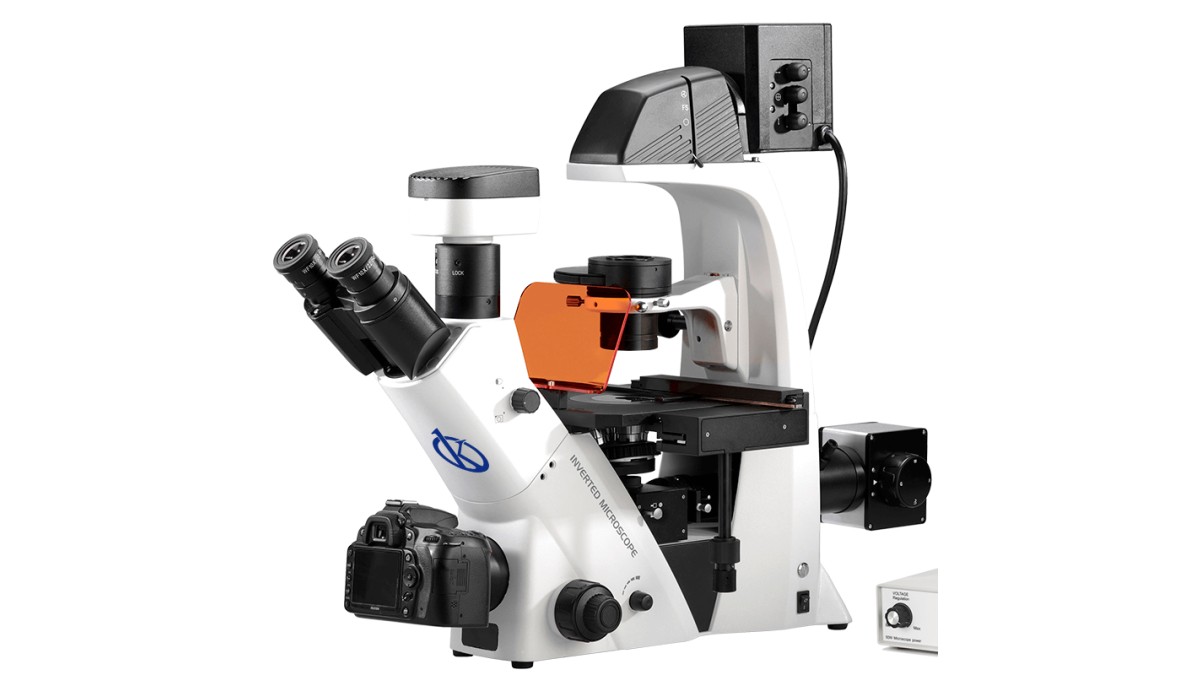

Fluorescent LED Inverted Microscope YR05791: Technical Performance and Safety
The Fluorescent LED Inverted Microscope YR05791 is an innovative laboratory instrument that combines advanced optical technology with robust safety features. This microscope is designed to deliver high-quality imaging while ensuring user safety and ease of use. The YR05791 model stands out in the market due to its trinocular head, Koehler illumination, and customizable settings, making it an excellent choice for researchers and educators alike.
Product Description
The YR05791 microscope features a Seidentopf trinocular head with a 45-degree inclination and an interpupillary distance of 48 to 76 mm. This design promotes comfortable viewing, allowing users to work for extended periods without straining their eyes. It is equipped with light distribution switches designed for E100:P0 and E20:P80 configurations.
For optimal imaging, the microscope employs a wide field eyepiece (WF10x/22 mm) with a diameter of 30 mm and an adjustable diopter for personalizing the focus to individual eyesight.
One of the distinguishing features of this microscope is its Koehler illumination system, which uses a 12V/50W halogen bulb suitable for input voltages ranging from 100V to 240V. This illumination system ensures even and bright lighting across the sample field, enhancing clarity and detail in imaging.
The microscope's condenser is a phase-contrast type with a rotating disc featuring four holes, allowing for versatile specimen imaging. The working distance is significant, measuring 72 mm with the condenser and 195 mm without, enabling the observation of thicker samples without compromising clarity.
In terms of objectives, the YR05791 is compatible with long working distance (LWD) infinity plan objectives — 4x, 10x, 20x, and 40x — providing a range of magnifications for different applications.
The mechanical stage size is substantial at 210x241 mm, accommodating standard slide sizes with a round slide holder of Φ110 mm and a culture plate holder measuring 54 mm.
To enhance user efficiency, the YR05791 incorporates an ECO automatic shutdown system that powers down the microscope after 10 minutes of inactivity. It automatically powers back on when a user approaches, although this feature can be manually disabled if desired.
Additionally, the microscope offers a photographic adapter featuring a 1.7x eyepiece for 100% light transmission to the camera port, which is compatible with Canon SLR digital cameras. The fluorescent illumination component consists of a 5W LED light source, UV protection barrier, and an adjustable filter diaphragm for various imaging needs.
Market Price
The Fluorescent LED Inverted Microscope YR05791 is competitively priced at approximately $3730.00 USD. This pricing reflects its advanced features, ensuring that users receive high-quality imaging capabilities, robust safety protocols, and extensive functionality suitable for laboratory and research environments.
| Feature | YR05791 | YR05792 |
|---|---|---|
| Optical System | Infinity Plan | Infinity Plan |
| Head Type | Trinocular Seidentopf | Trinocular Seidentopf |
| Interpupillary Distance | 48~76 mm | 48~76 mm |
| Condenser Type | Phase Contrast | Phase Contrast |
| Light Source | Halogen, LED | Halogen |
| Automatic Shutdown | Yes | No |
| Price (USD) | $3730.00 | $3600.00 |
Frequently Asked Questions
What are the main features of the YR05791 microscope?
The YR05791 microscope features a trinocular head, Koehler illumination, phase contrast condenser, long working distance objectives, adjustable diopter, and an automatic shutdown system, making it ideal for detailed imaging in laboratory settings.
How does the ECO automatic shutdown feature work?
The ECO feature automatically powers down the microscope after 10 minutes of inactivity to conserve energy. It turns back on when it detects user presence, enhancing convenience while also allowing manual disabling of the feature.
What types of applications is the YR05791 microscope suitable for?
The YR05791 microscope is suitable for a wide range of applications including biological research, educational purposes, and medical laboratories due to its advanced optical capabilities and safety features.
Can I use a digital camera with this microscope?
Yes, the YR05791 microscope is equipped with a photographic adapter compatible with Canon SLR digital cameras, allowing for high-quality imaging and documentation of samples.
What is the working distance of the microscope?
The working distance of the YR05791 microscope is 72 mm when using the condenser and 195 mm when the condenser is not attached, enabling observation of thicker specimens without compromising image quality.
Is the microscope easy to operate for beginners?
Yes, the YR05791 is designed for ease of use, featuring adjustable settings and an intuitive layout that makes it accessible even to users who may be new to microscopy.
Pros and Cons
When considering the Fluorescent LED Inverted Microscope YR05791, it's essential to weigh its advantages and disadvantages:
- Pros:
- Advanced optical system for high-quality imaging.
- Adjustable settings for personalized use.
- Automatic shutdown for energy conservation.
- Compatibility with digital cameras for documentation.
- Long working distance suitable for various specimens.
- Cons:
- Higher initial investment compared to basic models.
- May require additional training for advanced features.
Field Usage
The YR05791 microscope is widely used across various fields including:
- Biomedical Research: Ideal for examining cellular structures and bacteria.
- Education: An excellent teaching tool for students in biology and life sciences.
- Quality Control: Utilized in industries for inspecting materials and products.
- Environmental Studies: Helpful in analyzing organisms from different ecosystems.
Recommendations
For individuals and organizations looking to invest in a high-performance microscope, the YR05791 is a commendable choice. Whether for educational or research purposes, it offers a blend of functionality and safety that is hard to match. It is advisable to consider any specific requirements based on the intended use, such as the need for digital imaging capabilities or particular specimen types.
Furthermore, potential users are encouraged to explore additional accessories and upgrades that can enhance the microscope’s versatility and utility in specific fields.
If you are interested in the Fluorescent LED Inverted Microscope YR05791 or would like to request a quote, please reach out to us for personalized assistance.
