Description

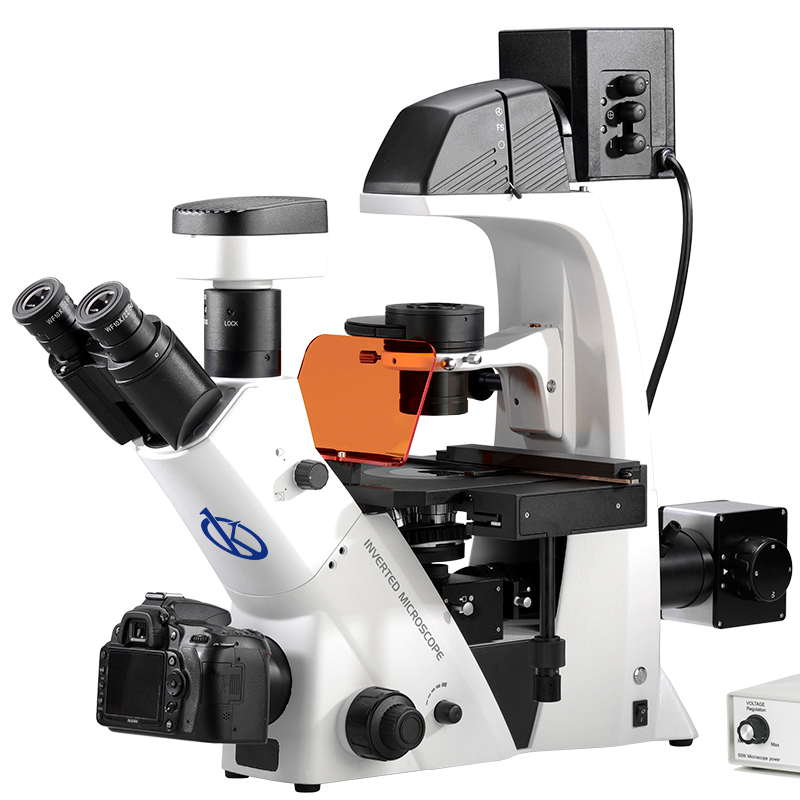

The Inverted LED Fluorescent Microscope YR05791 – YR05792 is a powerful tool designed for advanced microscopic analysis in laboratories. Featuring a Seidentopf trinocular head inclined at 45° with an interpupillary distance ranging from 48 to 76mm, this microscope offers exceptional precision and comfort. It is equipped with Koehler illumination, utilizing a halogen light source of 12V/50W, and supports phase contrast with a 4-hole rotating disc condenser. The model’s long working distance and LWD infinity plan fluorescent objectives (4x, 10x, 20x, 40x) make it suitable for a wide range of applications. Additionally, the microscope includes an eco-friendly automatic power-off system that enhances energy efficiency.

Market Price

The average market price for advanced microscopes like the Inverted LED Fluorescent Microscope YR05791 – YR05792 ranges between $6500 and $7500 USD, making it a cost-effective choice for laboratories that require reliable and precise imaging technology.

Frequently Asked Questions

Q: What type of cameras can be used with this microscope?
A: The photo adapter supports Canon SLR digital cameras, offering flexibility in capturing images.

Q: Is the automatic power-off function mandatory?
A: No, the eco feature of the microscope can be manually disabled as per user preference.

Advantages and Disadvantages

The Inverted LED Fluorescent Microscope provides several advantages, such as high-quality imaging, a user-friendly design, and an eco-friendly auto power-off system. However, some users may find the setup process complex and the initial investment higher compared to entry-level models.

Use of the Product in the Field

Primarily used in biological and clinical laboratories, the microscope excels in fluorescence microscopy, phase contrast observation, and other advanced techniques requiring precise and detailed imaging.

Recommendations

For optimal performance, regular calibration and cleaning of the lenses and optical components are recommended. Using the correct objectives for your applications will ensure the most accurate results.

Features

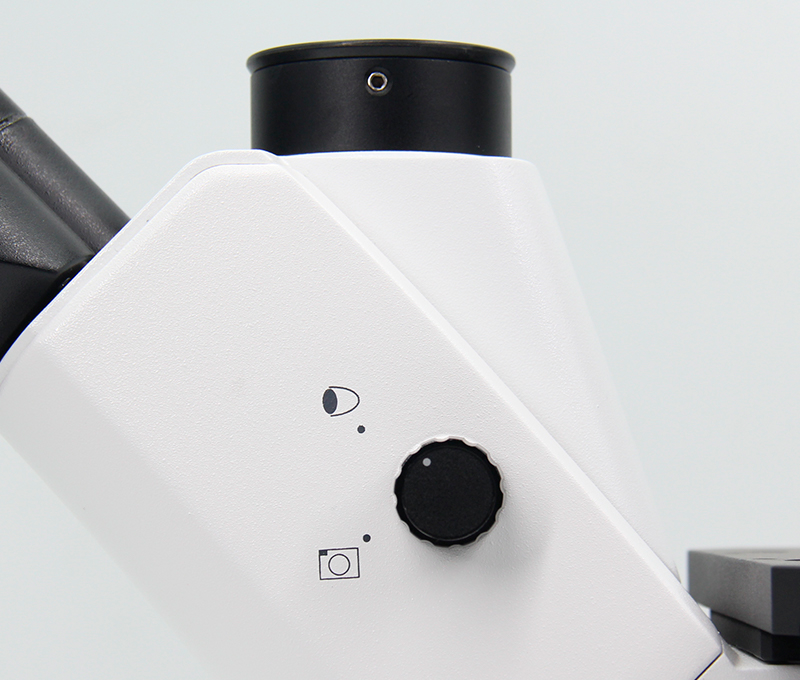

• Seidentopf Trinocular Head Inclined 45°, Interpupillary Distance 48~76mm
• Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

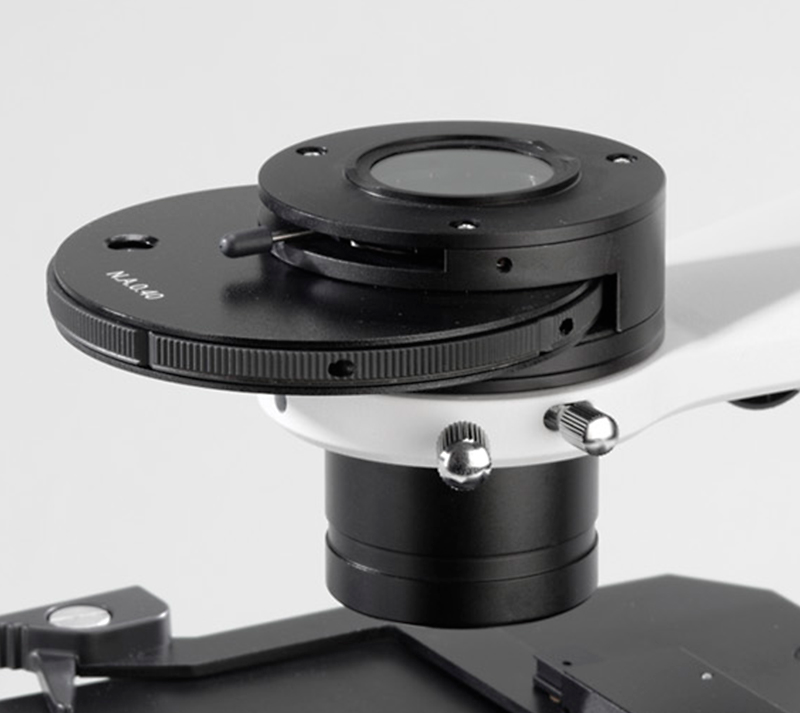

• 4 Holes Rotating Disc Phase Contrast Condenser
• Long Working Distance: 72mm (With Condenser), 195mm (Without Condenser)
• LWD Infinity Plan Fluorescent Objectives
• Mechanical Stage Size 210x241mm
• ECO, Auto Power Off System
• Photo Adapter Compatible with Canon SLR Cameras

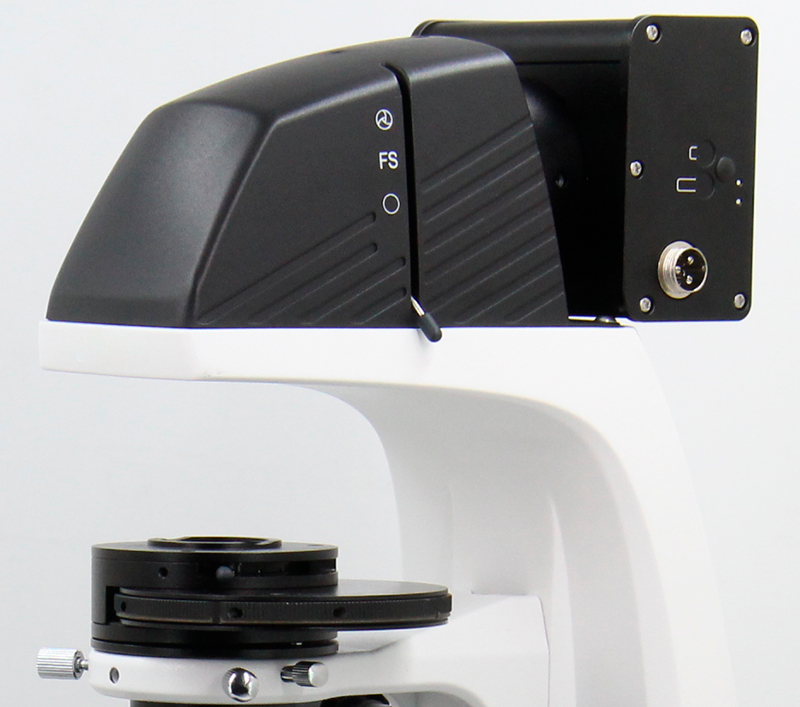

• Epi Fluorescence Illumination with 5W LED Lamps

Technical Specifications
