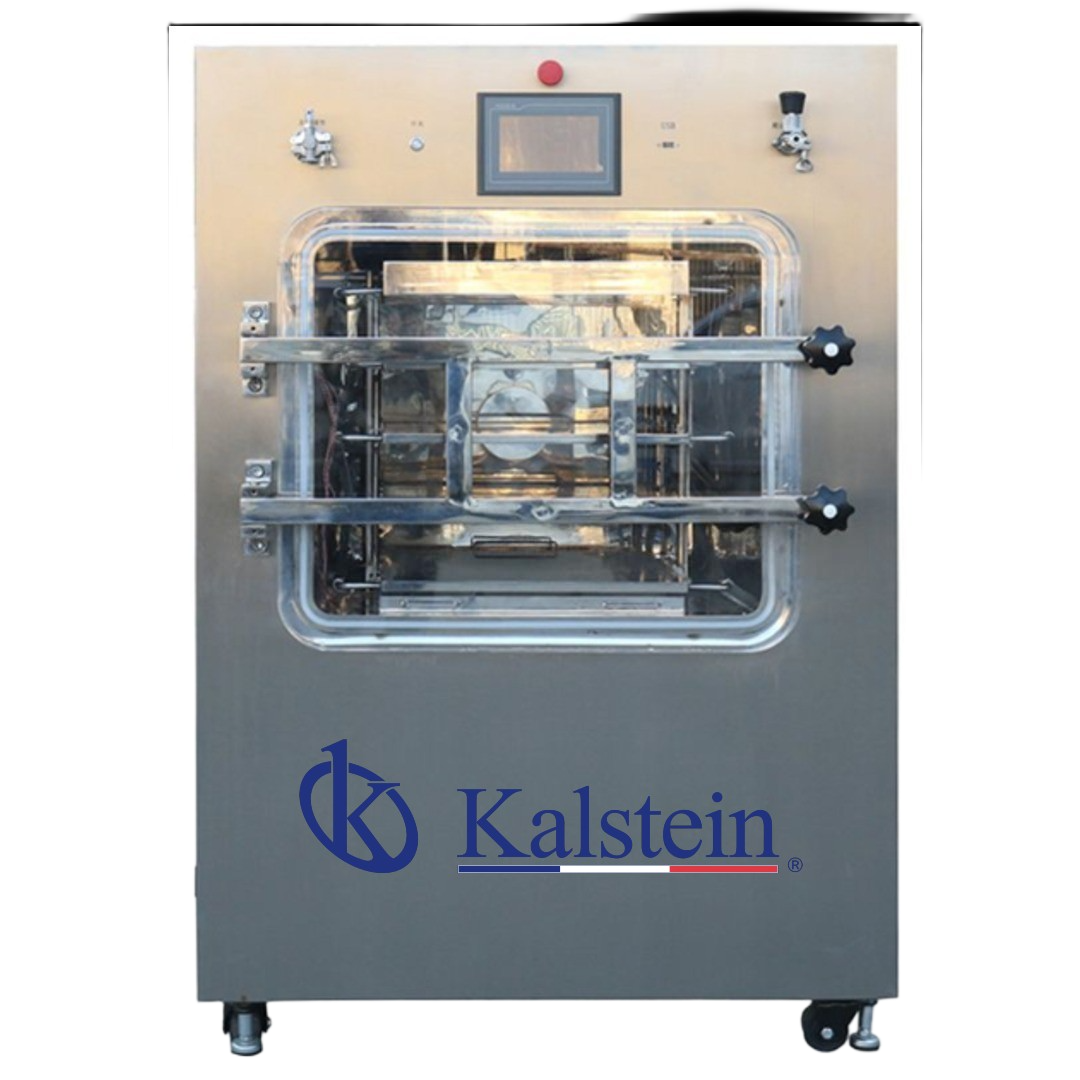

Understanding Environmental Conditions for the YR06692 Freeze Dryer: Installation Requirements
The YR06692 freeze dryer is a sophisticated industrial-grade vacuum lyophilizer engineered for precision in situ processes. To harness its full potential, it is crucial to acknowledge the environmental conditions and site requirements dictated by this model. This article delves into the optimal operating environment for the YR06692 and provides actionable insights for installation and maintenance.
Optimal Environmental Conditions for the YR06692
Creating the right environment for the YR06692 is essential for achieving consistent results. The primary factors to consider include temperature, humidity, power supply stability, and ventilation.
Temperature Requirements
The YR06692 operates effectively within a temperature range of -50 °C to +70 °C. Maintaining the surrounding environment within these limits ensures that the internal components function correctly and reduces the risk of overheating or underperformance. A stable temperature is vital for both the freeze-drying process and the preservation of sensitive materials.
Humidity Control
Humidity levels in the installation area should be monitored and controlled. High humidity can affect the freeze-drying process by introducing unwanted moisture, which may lead to compromised sample integrity. It is recommended to maintain relative humidity below 60% for optimal operation.
Power Supply Requirements
The YR06692 requires a stable power supply of 380V / 50Hz (three-phase). Fluctuations in voltage can lead to errors, impacting the equipment's performance and longevity. A dedicated circuit with surge protection is advisable.
Ventilation Needs
Proper ventilation is crucial for the YR06692 to prevent overheating. Ensure that the installation site allows for adequate airflow around the unit. This consideration aids in maintaining the temperature control of the system and prevents the cooling system from overworking.
Installation Requirements for the YR06692 Freeze Dryer
A successful installation of the YR06692 freeze dryer hinges on several critical steps. Below is a comprehensive checklist that outlines the installation process from unboxing to operational readiness.
Unboxing and Initial Setup
Upon receiving the YR06692, inspect the packaging for any visible damage. Carefully unbox the unit and verify that all components are present according to the packing list.
- Inspect the unit for any physical damage.
- Ensure that all accessories and manuals are included.
Anchoring and Leveling
Position the YR06692 on a sturdy, level surface that can support its weight (approximately 480 kg). Use leveling tools to ensure that the unit is perfectly horizontal to promote efficient operation and prevent mechanical strain.
Power-Up Sequence
Connect the YR06692 to the power supply, ensuring the power source is equipped with the necessary voltage and phase. Follow these steps for powering up:
- Ensure the power switch is off before connecting to the outlet.
- Connect the power supply securely, checking for tight connections.
- Turn on the power switch to initiate the startup sequence.
First-Run Calibration
After powering up, perform the first-run calibration. Access the calibration menu through the touchscreen interface, and follow the prompts to calibrate sensors for temperature and pressure. This step is crucial to ensure accurate readings and effective operation.
Technical Data Table for the YR06692
Parameter | Specifications |
Model | YR06692 |
Freeze Drying Area | 1.0 m2 |
Heating Type | Silicone Oil (Uniform) |
Press Function | Top Press for Vials (Stoppering) |
Load Capacity (L) | 10 to 15 Liters (depending on material) |
Cold Trap Temperature | -70 °C or -80 °C (optional) |
Shelf Temperature | -50 °C to +70 °C |
Temperature Accuracy | ± 1 °C |
Final Vacuum | < 5 Pa |
Shelf Material | Stainless Steel SUS304/316L |
Control System | FD-PILOT (7" Touch Screen) |
Memory Capacity | 100 recipe groups / 50 segments |
Data Interface | USB port for curve export |
Voltage | 380V / 50Hz (Three-Phase) |
Total Power | 4.5 kW to 6.0 kW (depending on configuration) |
Dimensions | 120 x 95 x 175 cm |
Net Weight (kg) | 480 kg |
Shipping Weight (kg) | 550 kg (Wooden Case) |
Common Installation Mistakes to Avoid
Installing the YR06692 requires careful attention to detail. To ensure a successful setup, here are common mistakes to avoid:
- Neglecting to check power supply specifications.
- Failing to level the unit properly, which can lead to operational issues.
- Overlooking necessary ventilation, risking overheating.
- Insufficient calibration, which can compromise measurement accuracy.
Frequently Asked Questions
What are the ideal environmental conditions for the YR06692 freeze dryer?
The ideal environmental conditions for the YR06692 include a stable temperature range of -50 °C to +70 °C, relative humidity below 60%, and a reliable power supply of 380V / 50Hz (three-phase).
How do I ensure proper ventilation for the YR06692?
Proper ventilation requires an unobstructed airflow around the YR06692. Ensure that the installation site has adequate space allowing air circulation to prevent overheating and maintain optimal performance.
What is the recommended procedure for the first-run calibration of the YR06692?
To calibrate the YR06692 for the first time, follow the instructions on the touch screen interface, ensuring that all sensors for temperature and pressure are accurately calibrated for precise operation.
Can I install the YR06692 in a high-humidity environment?
It is not advisable to install the YR06692 in a high-humidity environment. Relative humidity should be maintained below 60% to prevent moisture contamination during the freeze-drying process.
What power supply is required for the YR06692 freeze dryer?
The YR06692 requires a three-phase power supply at 380V / 50Hz. Ensure that the installation site is equipped with the proper electrical infrastructure to meet this requirement.
What common mistakes should I avoid when installing the YR06692?
Common mistakes to avoid include not verifying power supply specifications, failing to level the unit correctly, neglecting ventilation requirements, and not performing a thorough calibration process.
How can I optimize the lifespan of the YR06692 freeze dryer?
To optimize the lifespan of the YR06692, ensure proper installation and environmental conditions, perform regular maintenance, calibrate sensors periodically, and keep the unit clean and free from debris.
