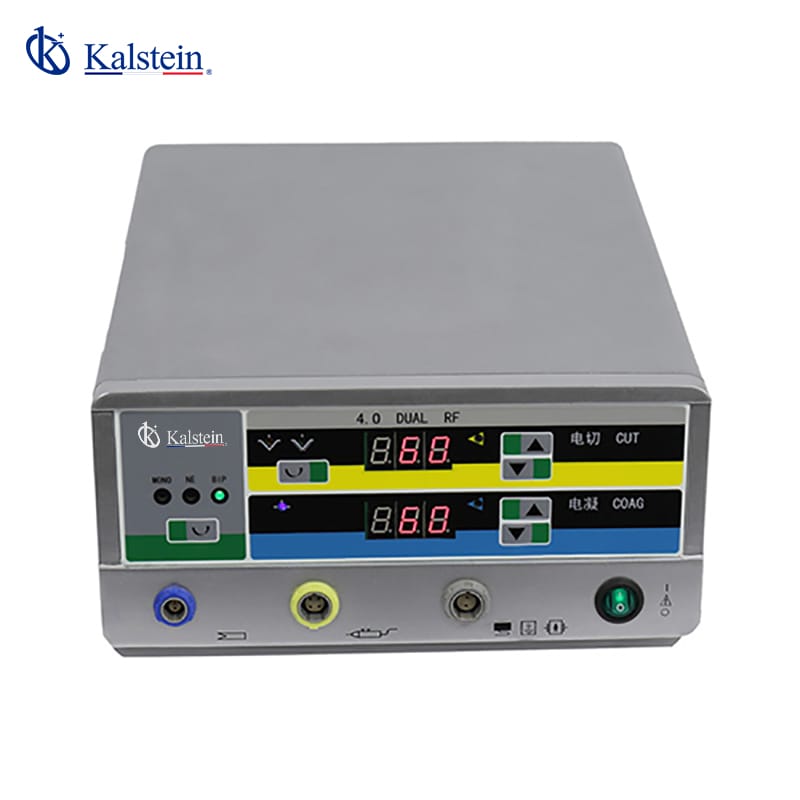

Understanding Results Interpretation and Measurement Reading with the YR02147 Electrosurgical Generator
The YR02147 electrosurgical generator is designed to facilitate precision in medical procedures, particularly in gynecology. Mastering the interpretation of results and measurements from this device is crucial for healthcare professionals aiming to optimize patient outcomes. This article delves into the technical capabilities of the YR02147, ensuring that operators can effectively interpret readings and results.
Technical Specifications of YR02147
| Model | YR02147 |
|---|---|
| Main Unit | Electrosurgical Unit |
| Base Output Frequency | 512 KHz |
| Cut Power Pure/Mixed | 0 ~ 150 W |
| Pure Waveform | Continuous sine wave, max open voltage at 1700 V |
| Coagulation Power | 0 ~ 100 W |
| Power Supply | 220 V / 50 Hz, nominal current at 3.15 A |
| Safety Standard | EN 60601-1 and 60601-2-2 |
Results Interpretation: Understanding the Display Readings
The YR02147 provides various readings on its display that are critical for successful electrosurgical procedures. Understanding these readings can help prevent misinterpretations that may lead to adverse outcomes. The primary metrics displayed include:
- Power Settings: Operators can observe and adjust the output power settings, which range from 0 to 150W for cutting and 0 to 100W for coagulation.
- Error Codes: The generator features a digital diagnostic system that displays error codes. Familiarity with these codes is essential to troubleshoot issues effectively.
- Electrode Recognition: It automatically recognizes the return electrode, which is crucial for safety and effectiveness during procedures.
Common Misinterpretations and How to Avoid Them
Misreading the output from the YR02147 can lead to either insufficient treatment or excess thermal damage to tissues. Here are common pitfalls:
- Ignoring Error Codes: Failing to address displayed error codes can result in equipment malfunction. Always consult the user manual for troubleshooting steps.
- Improper Power Adjustments: Adjusting power without understanding tissue response can lead to complications. Familiarize yourself with the types of tissue and their response to different power settings.
Practical Examples of Measurement Reading
When operating the YR02147, practical examples can help illustrate the correct interpretation of readings:
- Example 1: If a power setting of 80W is displayed during cutting and the tissue begins to char, lower the power setting gradually until optimal results are observed.
- Example 2: During coagulation, if the output voltage peaks at 3000V, ensure that the surrounding tissue is adequately monitored to prevent unintended damage.
Site Requirements for Optimal Performance
To ensure that the YR02147 operates effectively, specific site requirements should be met:
- Temperature Range: The unit should be kept in a climate-controlled environment between 15°C and 30°C for optimal performance.
- Electrical Specifications: Ensure that the power supply meets the specified voltage of 220V and frequency of 50Hz.
- Ventilation: Adequate ventilation must be provided to avoid overheating and to ensure safety during operation.
Frequently Asked Questions
What types of procedures is the YR02147 best suited for?
The YR02147 is particularly effective for gynecological surgeries, plastic surgeries, and ORL (otorhinolaryngology) procedures. Its precision allows for intricate work such as LEEP (Loop Electrosurgical Excision Procedure).
How can I interpret error codes displayed on the YR02147?
Error codes on the YR02147 provide diagnostic information. When an error code appears, refer to the user manual to identify the issue and take corrective action to ensure the device operates safely and effectively.
What safety standards does the YR02147 meet?
The YR02147 complies with safety standards EN 60601-1 and 60601-2-2, ensuring that it meets international safety requirements for medical devices.
How often should I calibrate the YR02147?
Calibration should be performed regularly based on usage and facility protocol. It is recommended to calibrate the YR02147 at least once a year or before critical procedures to ensure accuracy.
Can the YR02147 be used in combination with other surgical equipment?
Yes, the YR02147 can be integrated with various surgical tools and systems, enhancing its versatility in different surgical environments.
What maintenance is required for the YR02147?
Regular maintenance includes cleaning, checking the integrity of cables and electrodes, and ensuring all connections are secure. Consult your maintenance schedule for detailed procedures.
How can I request a quote for the YR02147?
For a detailed quote on the YR02147, please reach out to your supplier directly or request a quote through our online channels.
