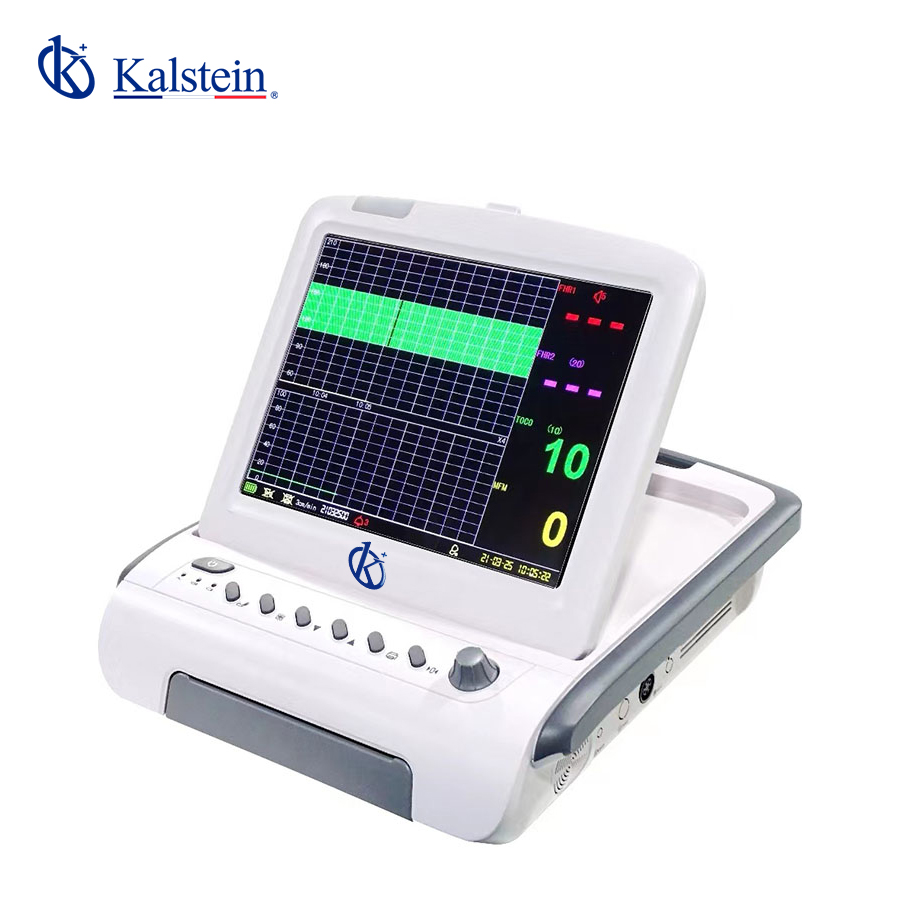

Understanding the Operating Principle and Scientific Foundations of the YR02190A Fetal Monitor
The YR02190A fetal monitor is an essential device in obstetric care, designed to monitor the fetal heart rate and other vital parameters effectively. Understanding its operating principles and scientific foundations is crucial for healthcare practitioners to utilize the device effectively and interpret its readings accurately.
Technical Overview of the YR02190A Fetal Monitor
| Model | YR02190A |
|---|---|
| FHR Measurement Range | 50-240 bpm |
| Working Frequency | 1.0 MHz |
| SpO2 Measurement Range | 70%-99% |
| Temperature Measurement Range | 0-50 ℃ |
| Power Supply | AC 100-240V |
Operating Principle of the YR02190A Fetal Monitor
The YR02190A operates based on the principles of ultrasound Doppler technology, which relies on the Doppler effect to detect and measure the movement of the fetal heart. This technology sends ultrasound waves towards the fetus, and as these waves bounce back, they are transformed into electrical signals. These signals are processed to provide real-time readings of fetal heart rates.
This method is not only non-invasive but also offers continuous monitoring, making it a preferred choice in clinical settings. The YR02190A integrates advanced digital signal processing (DSP) systems, ensuring accurate detection even in challenging conditions.
Key Components and Their Functions
The YR02190A consists of several critical components that play a vital role in its functionality:
- Transducer: The transducer emits ultrasound waves and receives the reflected signals from the fetal heart.
- Signal Processor: The DSP analyzes the signals and converts them into readable fetal heart rates and other vital parameters.
- Display Unit: The 12.1-inch color TFT screen provides a clear visual representation of the monitored data.
- Alarm System: The built-in alarm system alerts healthcare providers to any abnormal readings or conditions.
Scientific Foundations: Understanding Doppler Effect
The Doppler effect is a fundamental principle that describes how the frequency of sound waves changes based on the movement of the source or observer. In the context of fetal monitoring, when the fetal heart beats, it creates motion that alters the frequency of the sound waves transmitted by the ultrasound device.
The frequency shift is directly proportional to the speed of the fetal heart. By analyzing this frequency shift, the YR02190A can accurately calculate the heart rate, providing crucial data for monitoring the health of both the fetus and the mother during pregnancy and labor.
Comparison with Other Monitoring Technologies
While the YR02190A primarily uses ultrasound Doppler technology, other fetal monitoring methods include external fetal monitors and internal monitors, such as scalp electrodes.
External monitors are non-invasive but might be less effective in detecting fetal heart rates in certain conditions, whereas internal monitors provide more precise data at the cost of invasiveness. The choice of monitoring technology depends on the specific clinical scenario, with the YR02190A offering a balanced solution of safety and accuracy.
Calibration and Maintenance of the YR02190A
To ensure accurate measurements, regular calibration and maintenance of the YR02190A are essential. Calibration should be performed according to the manufacturer's recommendations, typically involving the following steps:
- Regularly check the device settings and parameters.
- Use calibration tools to verify the accuracy of readings.
- Perform routine cleaning and software updates to maintain optimal performance.
Practitioners must also be trained to troubleshoot common issues, such as inaccurate readings or equipment malfunctions, ensuring timely responses to any discrepancies during monitoring.
Frequently Asked Questions
What is the maximum measurement range for fetal heart rate on the YR02190A?
The YR02190A can measure fetal heart rates ranging from 50 to 240 beats per minute (bpm), providing essential data for monitoring fetal well-being.
How does the YR02190A alert users to abnormal readings?
The YR02190A features a built-in alarm system that activates when fetal heart rates fall outside preset limits, ensuring that healthcare providers are promptly alerted to potential issues.
What maintenance does the YR02190A require?
Regular maintenance for the YR02190A includes calibration, cleaning the device, and ensuring software updates are performed to maintain accuracy and reliability.
Can the YR02190A be used in different medical settings?
Yes, the YR02190A is versatile and can be utilized in various medical settings, including hospitals, clinics, and maternity wards, making it suitable for different obstetric scenarios.
How does the YR02190A compare with other fetal monitoring methods?
Compared to other monitoring methods, the YR02190A's ultrasound Doppler technology offers non-invasive continuous monitoring, while other methods may be invasive or less effective in certain conditions.
What training is needed for operators of the YR02190A?
Operators should receive training on the device's features, operating principles, and maintenance protocols to ensure effective and safe use in clinical settings.
