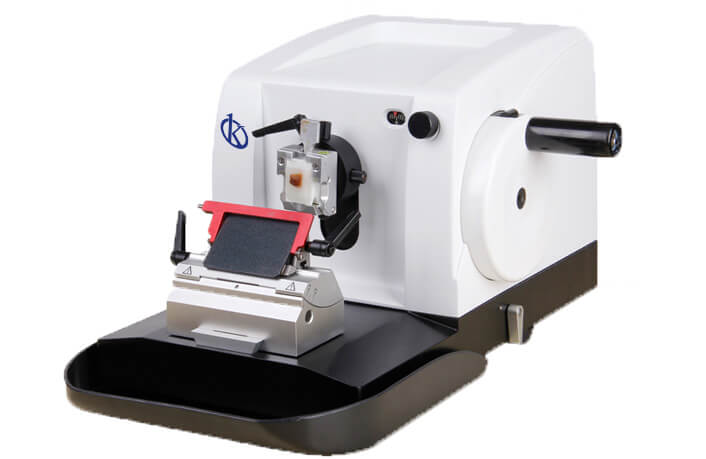

Understanding the Operating Principle and Scientific Foundation of the YR418 Microtome
The YR418 microtome is an essential tool in histology and pathology laboratories, designed to fulfill the diverse requirements of sample preparation. This article delves into the operating principles of the YR418, shedding light on the scientific foundations that underpin its design and functionality.
Principle of Operation
The YR418 microtome operates on the principle of slicing samples with high precision to obtain thin sections for microscopic examination. It employs a mechanical system that includes a blade and a sample holder. The core of its operation is the manual adjustment of the sample's position, allowing for meticulous control over the thickness of the cut. The device is engineered to achieve a minimum cutting thickness of 1 μm, making it ideal for various histological applications.
The precision of the YR418 is attributed to its finely tuned mechanical components. The blade, usually made from high-quality steel, is designed to maintain sharpness and durability. This ensures that the sections obtained are not only thin but also uniform, which is critical for accurate analysis under a microscope.
Scientific Foundation
The scientific principles governing the YR418 microtome are rooted in the understanding of material properties and mechanical design. The microtome utilizes the physical properties of the sample material to facilitate easier slicing. For instance, samples that are adequately fixed and embedded in a medium such as paraffin wax are more easily sectioned. This is due to the fact that the embedding medium provides support, allowing the microtome blade to make clean cuts without damaging the sample.
Additionally, the microtome's design considers the forces acting on the sample and blade. The cutting action can be analyzed through the principles of shear stress, where the force applied to the blade creates a shearing effect that enables the blade to slice through the sample material. The relationship between the cutting angle and the force applied is crucial for achieving optimal results.
Technical Specifications of the YR418
| Specification | Details |
|---|---|
| Model | YR418 |
| Minimum Cutting Thickness | 1 μm |
| Horizontal Sample Feed | 29 mm |
| Vertical Sample Stroke | 60 mm |
| Base Movement Range for Blade Holder | 0-60 mm (forwards and backwards) |
| Press Plate Movement Range | 0-23 mm |
| Sample Rotation | Any angle within 360 degrees |
| Maximum Sample Size | 60 × 70 mm |
| Sample Orientation | XY-8° |
| Precision Error | ±1% |
| Dimensions | 570×440×290 mm (Width×Depth×Height) |
| Net Weight | 28 kg |
Importance of Precision in Microtome Operation
The YR418 microtome stands out due to its high precision capabilities, which are essential in the preparation of histological samples. Precise cutting ensures that the resulting sections are suitable for microscopic examination, which is crucial in diagnosing diseases. The mechanical accuracy of the YR418 allows operators to achieve consistent results across multiple samples, minimizing variability that could lead to misinterpretations.
In addition, the adjustable settings of the YR418 enable operators to tailor the cutting process to specific sample types and sizes, further enhancing the versatility of the equipment. This flexibility is particularly important in research and clinical settings where different materials may be encountered.
Maintenance and Care for Optimal Performance
Regular maintenance of the YR418 microtome is vital to ensure its longevity and performance. Operators should regularly check the sharpness of the blade and replace it as needed to maintain cutting efficiency. Cleaning the waste tray and ensuring that no debris obstructs the mechanism will also contribute to the device's operational longevity.
Moreover, it is advisable to calibrate the microtome periodically, which involves verifying the thickness settings and ensuring that the sample feed mechanisms are functioning correctly. Proper care not only extends the lifespan of the equipment but also upholds the quality of the samples being processed.
Frequently Asked Questions
What types of samples can be processed using the YR418 microtome?
The YR418 microtome is designed for processing a wide range of biological samples, including tissues fixed in paraffin or resin. It is suitable for histological applications and can also be used in research settings for various sample types.
How does the YR418 ensure consistent slice thickness?
The YR418 microtome uses a manual adjustment system that allows operators to set the desired thickness accurately. The mechanical design also ensures stability during the cutting process, contributing to uniform slice thickness across multiple samples.
What are the common issues faced while operating the YR418 microtome?
Common issues may include blade dullness, improper sample positioning, and mechanical obstruction. Regular maintenance and proper training can help minimize these problems and ensure smooth operation.
Is the YR418 microtome suitable for industrial applications?
While primarily designed for histological applications, the YR418 can be adapted for certain industrial quality control processes where precise cutting of samples is required.
What is the expected lifespan of the YR418 microtome?
The YR418 microtome is built with durable materials and, with regular maintenance, can serve effectively for many years. The lifespan will also depend on the frequency of use and adherence to maintenance protocols.
Can the YR418 microtome accommodate different blade types?
Yes, the YR418 microtome is compatible with various blade types, allowing users to select blades based on their specific cutting needs and the material being sectioned.
How is the YR418 microtome calibrated?
Calibration of the YR418 microtome involves verifying the settings for slice thickness and sample feed. This may include checking for any mechanical play in the components and ensuring that the device functions according to manufacturer specifications.
