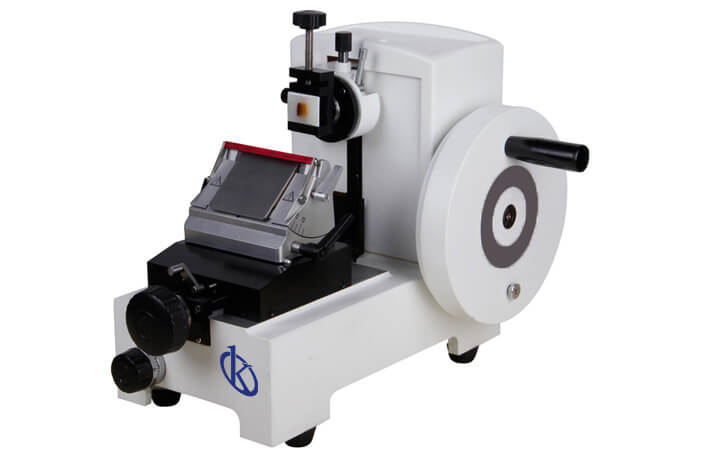

Understanding the Operating Principle and Scientific Basis of the YR420 Microtome
The YR420 Microtome represents a pinnacle of engineering in the realm of histological and pathological applications. This precision tool integrates advanced technology that facilitates the slicing of samples with unparalleled accuracy. In this article, we will delve into the operating principles and scientific foundations that underpin the functionality of the YR420, ensuring a comprehensive understanding for users and operators.
Technical Overview of the YR420 Microtome
| Model | YR420 (current) |
|---|---|
| Cutting Thickness Adjustment Range | 0–500 μm |
| Minimum Cutting Thickness Setting | 1 μm |
| Sample Holder Rotation | Any angle within 360 degrees |
| Sample Orientation | XY-8° |
| Total Horizontal Sample Feed | 28 mm |
| Vertical Sample Stroke | 60 mm |
| Cutter Base Movement Range | 0-60 mm (front to back) |
| Blade Press Plate Movement Range | 0-23 mm |
| Precision Error | ±1% |
| Maximum Sample Size | 50×60 mm |
| Dimensions | 420×330×330 mm (Width×Depth×Height) |
| Net Weight | 19 kg |
Principle of Operation of the YR420 Microtome
The fundamental operation of the YR420 Microtome revolves around the principle of precision cutting using a rotating blade mechanism. This mechanism is essential for producing thin sections of biological samples, which are critical for histological examination and analysis.
At its core, the YR420 employs a high-precision roller guide rail system, allowing for smooth and stable movement of the sample holder. This is crucial in ensuring that the samples are cut uniformly without introducing any artifacts, which can compromise the quality of the analysis. The cutting thickness can be finely adjusted from 1 μm to 500 μm, providing versatility for various applications.
Scientific Foundations of the YR420 Microtome
The scientific principles guiding the operation of the YR420 Microtome are grounded in material science and mechanics. The mechanical design choices, such as the use of high-precision materials and components, minimize friction and wear, ensuring a consistent operational lifespan.
The design employs a combination of geometry and material properties to optimize the cutting process. For instance, the angle of the blade and the type of material being cut can significantly affect the cutting efficiency and quality of the sections produced. Understanding these principles allows operators to adjust settings based on the specific requirements of their samples.
Key Features of the YR420 Microtome
The YR420 Microtome is equipped with several key features that enhance its usability and performance:
- Easy Adjustment System: The cutting thickness is adjustable via a simple dial mechanism, allowing operators to make quick modifications according to their needs.
- Robust Construction: Built with high-quality components, the YR420 is designed to withstand the rigors of constant use in laboratory settings.
- Versatile Orientation: The ability to rotate the sample holder in any direction enhances the precision of the cutting process, making it suitable for various sample types.
Applications of the YR420 Microtome in Histology and Pathology
The YR420 Microtome finds its primary applications in histology and pathology, where the accurate slicing of tissue samples is paramount. This device is ideal for creating thin sections that can be placed on slides for microscopic examination.
In histology, the microtome is essential for preparing samples of various biological tissues, enabling researchers and medical professionals to examine cellular structures and diagnose diseases. In pathology, it plays a critical role in preparing biopsy samples, allowing for detailed analysis and identification of abnormalities.
Maintaining the YR420 Microtome for Optimal Performance
Proper maintenance of the YR420 Microtome is crucial for ensuring its longevity and performance. Regular cleaning and calibration are necessary to maintain precision in cutting.
Operators should follow a routine maintenance schedule that includes checking the blade integrity, cleaning the sample chamber, and ensuring that all moving parts are lubricated. This not only prolongs the life of the equipment but also ensures the quality of the sections produced remains high.
Frequently Asked Questions
What is the cutting thickness range of the YR420 Microtome?
The YR420 Microtome offers a cutting thickness adjustment range from 1 μm to 500 μm, allowing for versatile sample preparation.
How do I maintain the YR420 Microtome?
To maintain the YR420 Microtome, follow a routine maintenance schedule that includes regular cleaning, checking blade integrity, and lubricating moving parts to ensure optimal performance.
What types of samples can be processed using the YR420?
The YR420 is designed to process various biological samples, making it suitable for histological and pathological applications.
Can the YR420 Microtome cut samples at any angle?
Yes, the sample holder of the YR420 Microtome can be rotated to any angle within 360 degrees, enhancing the precision of the cutting process.
What should I do if I experience inconsistent cutting with the YR420?
If you experience inconsistent cutting, check the blade for dullness, ensure proper sample alignment, and verify that the cutting thickness setting is appropriately adjusted.
Is there a warranty for the YR420 Microtome?
Yes, the YR420 Microtome comes with a warranty that covers manufacturing defects and ensures that the device operates as intended.
Where can I request a quote for the YR420 Microtome?
You can request a quote for the YR420 Microtome through our official channels, where we offer competitive pricing tailored to your needs.
