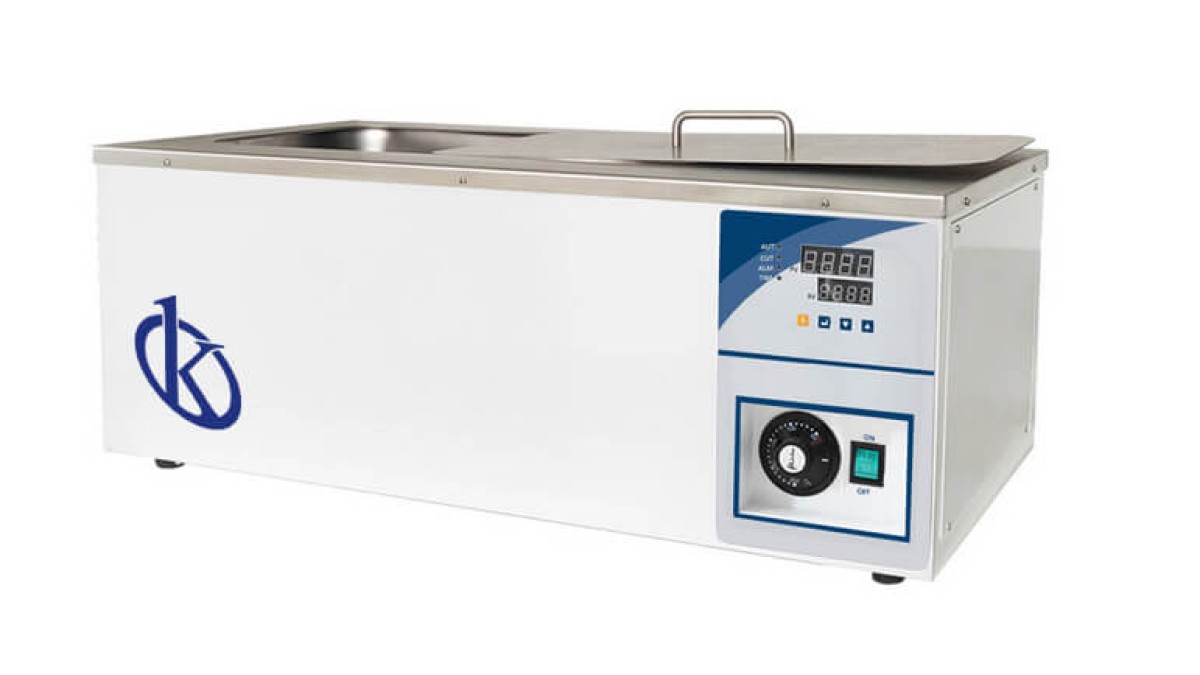

Technical Performance and Safety of the YR04975 Oil Bath
The YR04975 oil bath is a vital instrument utilized in a variety of fields such as bioengineering, medicine, food processing, chemical industry, gold treatment, and oil exploration. This equipment ensures a constant temperature that is uniform, controlled, and highly precise, making it indispensable in research institutes, colleges, universities, laboratories, and inspection departments.
Product Description
The YR04975 model is part of the YR series oil baths known for their sophisticated control systems and versatility. It features intelligent microcomputer control that allows for rapid temperature increase, stable temperature maintenance, and user-friendly operation. The dual-use design for both water and oil applications allows the unit to achieve a maximum temperature of 250°C, catering to various experimental needs.
Key Features
- Intelligent microcomputer control system for quick temperature rise and stability.
- Maximum temperature of 250 °C, suitable for high-temperature chemical reactions.
- Digital LED display for easy monitoring and adjustment of temperatures.
- Optional magnetic stirring device for enhanced reaction facilitation.
- Safety features including overcurrent protection and overheating alarm.
Technical Specifications
| Model (Integrated Chamber) | Controller | Voltage | Power (W) | Temperature Range (°C) | Temperature Resolution | Temperature Fluctuation | Division Accuracy | Timer | Recycling Design | Magnetic | Safety | Chamber Size (mm) | Product Size (mm) | Packing Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YR04975 (current) | PID | 220V / 50Hz, 110V/60Hz | 1600W | RT. +5~250°C | 0.1 °C | ≤±0.5°C | ≤±1°C | 999 minutes | Optional | Optional | Overcurrent Protection, Overtemperature Alarm | 500 x 290 x 150 | 600 x 350 x 240 | 650 x 400 x 290 |
Market Price
The current market price for the YR04975 oil bath is approximately $192.00 USD. This pricing makes it a competitive option for laboratories and industries seeking reliable temperature-controlled equipment.
Technical Comparison Table
| Feature | YR04973 | YR04974 | YR04975 (current) | YR04976 |
|---|---|---|---|---|
| Power (W) | 1000W | 1200W | 1600W | 2000W |
| Temperature Range (°C) | RT. +5~250°C | RT. +5~250°C | RT. +5~250°C | RT. +5~250°C |
| Chamber Size (mm) | 300 x 240 x 150 | 300 x 240 x 200 | 500 x 290 x 150 | 500 x 290 x 200 |
| Product Size (mm) | 390 x 280 x 240 | 390 x 280 x 290 | 600 x 350 x 240 | 600 x 350 x 290 |
Frequently Asked Questions
What is the maximum temperature the YR04975 oil bath can reach?
The YR04975 oil bath can reach a maximum temperature of 250 °C, making it suitable for various high-temperature applications.
How does the intelligent microcomputer control system work?
The intelligent microcomputer control system allows for quick adjustments to temperature settings and maintains consistency throughout the operation, ensuring accurate measurements.
What safety features are included in the YR04975 model?
The YR04975 includes overcurrent protection, an overheating alarm, and a mechanical temperature limiter to ensure safe operation.
Can the YR04975 be used for both water and oil applications?
Yes, the YR04975 is designed for dual-use, capable of functioning effectively with both water and oil as heating mediums.
Is there a timer feature available on the YR04975 oil bath?
Yes, the YR04975 includes a timer feature that can be set for up to 999 minutes for precise timing of experiments.
What additional options are available for the YR04975?
Optional features for the YR04975 include a magnetic stirring device that enhances chemical reactions at high temperatures.
Where can I find more information or request a quote for the YR04975?
You can request a quote for the YR04975 oil bath through our convenient online channels.
Pros and Cons
Pros
- High precision temperature control.
- Versatile dual-use with water and oil.
- Safety features enhance user security.
- Optional magnetic stirring improves reaction efficiency.
Cons
- Initial investment cost may be higher for some laboratories.
- Requires regular maintenance for optimal performance.
Field Usage
The YR04975 oil bath is utilized across various fields, including:
- Bioengineering: Used for experiments requiring stable temperatures.
- Medicine: Ideal for sterilization processes and chemical reactions.
- Food Processing: Employed in testing the stability of food products under controlled temperatures.
- Chemical Industry: Essential for conducting high-temperature reactions safely.
- Gold Treatment: Utilized in processes that require precise heating.
Recommendations
For optimal performance, it is recommended to:
- Regularly calibrate the temperature settings to ensure accuracy.
- Perform routine maintenance checks to keep the equipment in top condition.
- Educate users about the safety features and operational guidelines.
- Consider integrating the optional magnetic stirrer for enhanced functionality.
Should you require detailed information or wish to request a quote for the YR04975 oil bath, feel free to reach out. We are here to assist you in meeting your laboratory needs.
