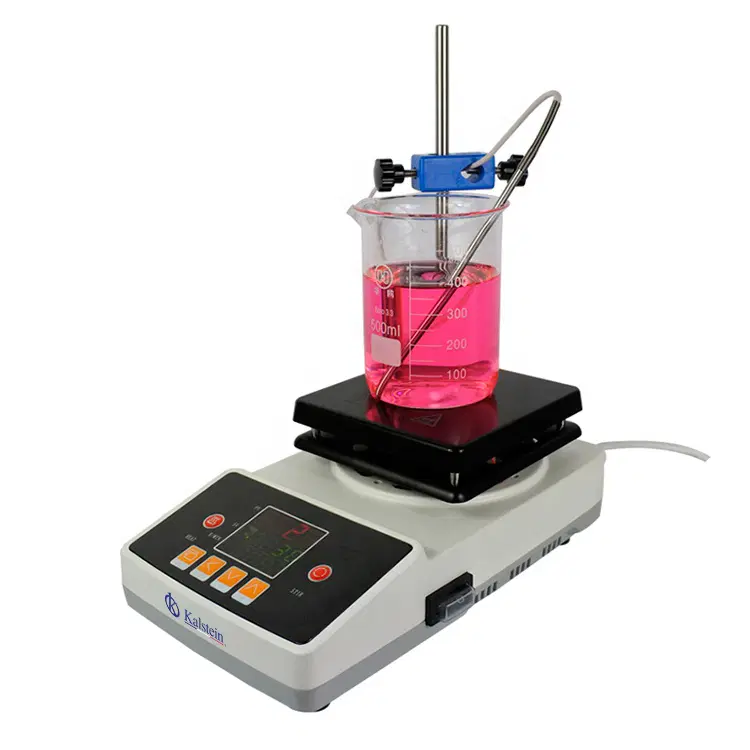

Understanding Site Requirements and Installation Conditions for the YR02943 Hotplate Stirrer
The YR02943 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a sophisticated laboratory device widely used for heating and mixing applications. To ensure its optimal performance, understanding the environmental conditions and installation requirements is crucial. This article outlines all relevant site requirements necessary for the effective usage of the YR02943.
Technical Specifications of the YR02943 Hotplate Stirrer
| Specification | Details |
|---|---|
| Model | YR02943 |
| Volume | 10L |
| Heating Plate Size (mm) | 230 x 230 |
| Heating Power (W) | 750 |
| Heating Plate Material | Ceramic-coated aluminum (white or black) |
| Temperature Range | Room temperature to 380 °C |
| Mixing Speed | 100-1800 RPM |
| Temperature Control | Automatic PID control |
| Temperature Display (°C) | Digital LCD display |
| Temperature Accuracy | +/- 1 °C |
| Thermocouple Probe (Sensor) | PT100, with internal and external thermocouple |
| Permissible Working Temperature | Room temperature up to 40 °C |
| Voltage | 220V / 110V optional |
| Dimensions (mm) | 500 x 400 x 350 |
| Weight (kg) | 7.5 |
Environmental Conditions for Optimal Performance
The YR02943 functions best under specific environmental conditions that ensure its reliability and accuracy. Here are the primary factors to consider:
- Temperature: Ambient temperatures should be maintained at room temperature to a maximum of 40 °C. Extreme temperatures may affect the performance of the device.
- Humidity: Ensure that the humidity levels are controlled to prevent condensation on the device, which could lead to electrical malfunctions.
- Vibration: The unit should be placed on a stable surface to minimize vibrations, which can interfere with mixing and heating efficiency.
- Electromagnetic Interference (EMI): Keep the hotplate stirrer away from electromagnetic sources to avoid disruptions in its operation.
Installation Requirements for the YR02943
Proper installation of the YR02943 is paramount for its performance. Follow these guidelines to set up the device correctly:
- Unboxing the Unit: Check for any visible damage and ensure all components are included as per the manual.
- Anchoring and Leveling: Place the unit on a stable, level surface to ensure optimal heating and mixing.
- Power Supply: Ensure that the electrical outlet matches the device’s voltage requirement (220V or 110V). Use a surge protector to safeguard against electrical spikes.
- Ventilation: Ensure adequate ventilation around the device to prevent overheating, especially during prolonged use.
Common Installation Mistakes to Avoid
Even with detailed guidelines, operators may encounter common issues during installation. Here’s a list of pitfalls to avoid:
- Inadequate Power Supply: Neglecting to check voltage specifications can lead to malfunction.
- Poor Surface Leveling: Uneven surfaces can affect the precision of mixing.
- Ignoring Manufacturer’s Manual: Always refer to the installation manual for specific instructions regarding your model.
Site-Prep Checklist for the YR02943
| Site Requirement | Status |
|---|---|
| Stable and Level Surface | ✔️ |
| Correct Electrical Outlets | ✔️ |
| Ventilation | ✔️ |
| Sufficient Space Around Unit | ✔️ |
| Humidity Control | ✔️ |
Frequently Asked Questions
What is the optimal temperature range for the YR02943?
The optimal temperature range for the YR02943 is from room temperature up to 380 °C. It is crucial not to exceed the maximum temperature to prevent damage to the unit.
How do I ensure proper installation of the YR02943?
Ensure that the device is placed on a stable, level surface, verify that the power supply matches the unit’s voltage, and provide adequate ventilation for heat dissipation.
What common mistakes should be avoided during the setup of the YR02943?
Avoid inadequate power supply, poor surface leveling, and ignoring the manufacturer's installation manual. These mistakes can compromise the unit’s performance.
How does humidity affect the operation of the YR02943?
High humidity levels may lead to condensation, which can cause electrical malfunctions. It is essential to keep humidity levels within the recommended range.
Can the YR02943 be used in a fume hood?
Yes, the YR02943 can be used in a fume hood, which not only provides adequate ventilation but also enhances safety during heated mixing processes.
What actions should be taken if the YR02943 shows an error code?
Refer to the user manual to identify the specific error code. Common resolutions include checking power supply connections, ensuring the unit is within the safe operating temperature range, and verifying that the stirring mechanism is not jammed.
How can I request a quote for the YR02943?
You can easily request a quote by contacting our sales team, who will assist you in providing the best pricing options for the YR02943.
