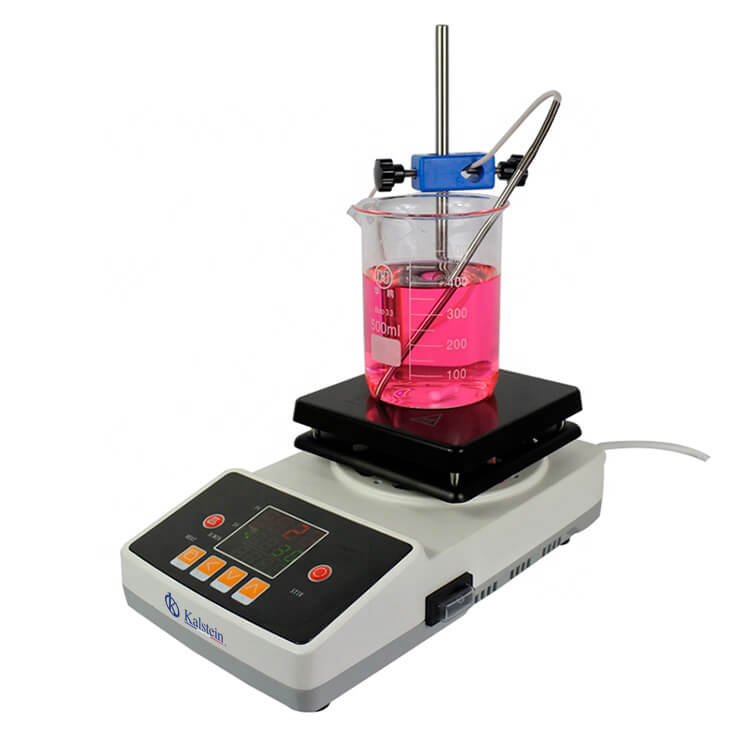

Site Requirements and Installation Conditions for the YR02941 Intelligent Digital Display Ceramic Top Hotplate Stirrer
The YR02941 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a sophisticated piece of laboratory equipment, designed for efficiency and ease of use. To ensure that this advanced device performs optimally, it is crucial to adhere to specific site requirements and installation conditions. This article will provide a comprehensive guide to the necessary environmental conditions, electrical configurations, and spatial arrangements needed for the YR02941.
Understanding the YR02941 Hotplate Stirrer
The YR02941 model is designed with a ceramic top that not only provides excellent heat distribution but also ensures durability against chemical corrosion. Its compact design makes it an ideal choice for various laboratory settings, from clinical research to educational institutions.
Technical Data Table
| Specification | Details |
|---|---|
| Model | YR02941 |
| Temperature Control | Automatic PID Control |
| Speed Range | 100-1800 RPM |
| Temperature Range | Ambient to 400 degrees Celsius |
| Max Plate Temperature | 325 degrees Celsius |
| Dimensions (mm) | 295 x 190 x 104 |
| Weight (kg) | 3.5 |
Site Preparation Checklist
When setting up the YR02941, it is essential to prepare the site properly. This includes ensuring the right environmental conditions and adequate electrical supply. Below is a checklist to guide you:
- Ensure the ambient temperature does not exceed 40 degrees Celsius.
- Verify that the laboratory space is well-ventilated to prevent overheating.
- Confirm the electrical supply falls within 160 - 240V or 110-130V.
- Establish a stable, level surface to prevent vibration.
- Ensure sufficient clearance around the device for safe operation and maintenance.
- Check that the area is free from excessive dust and moisture.
Environmental Conditions Required for Optimal Performance
The YR02941 is engineered to function within precise environmental parameters. The following conditions must be maintained to ensure safe operation and accurate results:
Temperature
The operational temperature range for the YR02941 is ambient to 400 degrees Celsius, with the maximum plate temperature reaching 325 degrees Celsius. It is vital to avoid exceeding these limits to prevent damage and ensure safety.
Humidity
Humidity levels should be controlled as excessive moisture can affect electronic components and lead to inaccurate readings. A relative humidity level below 70% is recommended.
Vibration
To maintain consistent stirring and heating, the YR02941 should be placed on a stable surface, free from vibrations. External vibrations can disrupt the stirring process and lead to measurement errors.
Electrical Requirements for Installation
Proper electrical installation is critical for the safe operation of the YR02941. Below are the electrical requirements:
- Voltage: The unit operates on either 160 - 240V or 110-130V, depending on the model configuration.
- Power Supply: Ensure that the heating power supply is adequate at 450 watts.
- Grounding: Proper grounding must be implemented to protect against electrical faults.
Common Installation Mistakes to Avoid
Installation of the YR02941 should be approached with care to avoid common pitfalls:
- Connecting to an inadequate power source can result in equipment failure.
- Ignoring the need for a stable surface can affect the stirrer’s performance.
- Overlooking ventilation requirements can lead to overheating.
- Failing to maintain adequate clearance around the device may restrict access for maintenance.
Frequently Asked Questions
What are the temperature limits for the YR02941?
The YR02941 can operate in ambient temperatures up to 40 degrees Celsius, with a maximum plate temperature of 325 degrees Celsius.
How do I ensure proper ventilation for the YR02941?
Ensure that there is sufficient airflow around the device and avoid placing it in enclosed spaces without airflow to prevent overheating.
What should I do if the YR02941 does not power on?
Check the power supply connections and ensure that the voltage is within the specified range. If the problem persists, consult the troubleshooting section of the manual.
Is there a specific way to clean the YR02941?
Use a damp cloth to clean the ceramic surface and ensure that no moisture enters the electrical components.
Can I use the YR02941 in a fume hood?
Yes, using the YR02941 in a fume hood is recommended to avoid exposure to hazardous vapors and maintain optimal safety standards.
What is the maximum capacity of the stirring flask compatible with YR02941?
The YR02941 can accommodate stirring flasks ranging from 50ML to 2L.
Are there any specific materials that should be used with the YR02941?
It is advisable to use materials compatible with ceramic and aluminum to prevent chemical reactions that may damage the unit.
