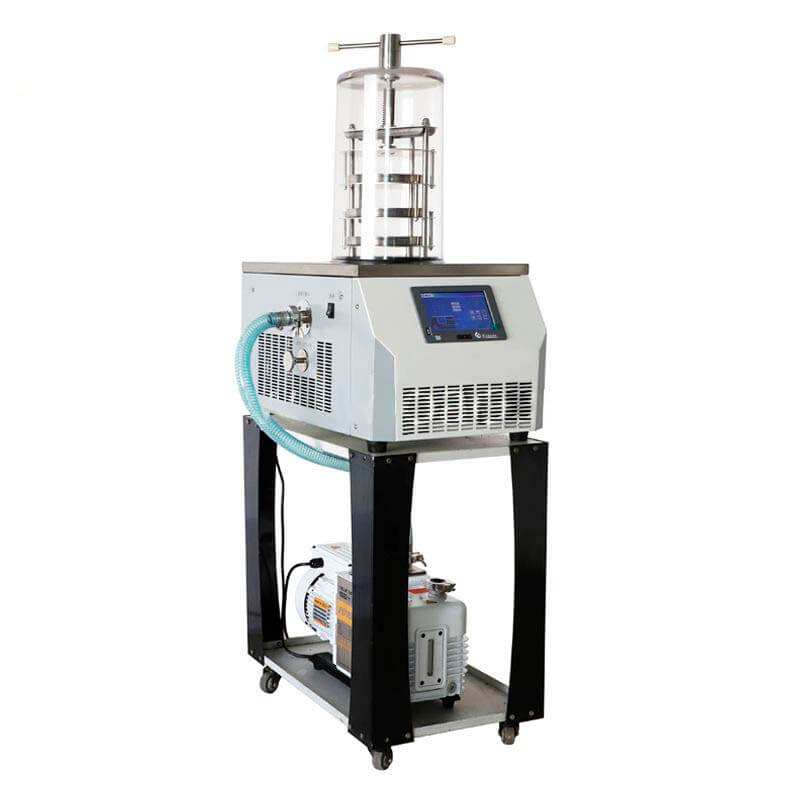

Lyophilizer YR05187
The Regular desktop laboratory lyophilizer YR05187 combines technical features for laboratory routines, operational continuity and a coherent equipment selection process.
This page provides an overview of the Regular desktop laboratory lyophilizer YR05187, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Pakistan, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Regular desktop laboratory lyophilizer YR05187, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Pakistan, evaluation should consider local context such as public health, textile/agro labs, DRAP regulation and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Pakistan, budget comparison should include DRAP references, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
Model YR05187 (current) Lyophilization area 0.08㎡ Condenser capacity 3-4 L/24h Condenser temperature -55 ℃ (-80 ℃ optional) Vacuum degree < 10 Pa Material tray ¢180mm, 3 layers Bulk capacity 0.8 L, 10 mm thickness Capacity of vial Φ12mm 560 pieces Capacity of vial Φ16mm 285 pieces Capacity of vial Φ22mm 165 pieces Press style Manually Cooling Air, with air currents, ambient temperature ≤25 ℃ Voltage 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz Power 700W Host dimension 460*625*(370+465) millimeter Host weight 41 kg
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Pakistan helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Lyophilizer YR05187
Lyophilizer YR05187
El liofilizador es ampliamente utilizado en medicina, farmacia, investigación biológica, industria química y producción de alimentos, etc. Después del proceso de liofilización, la conservación a largo plazo de los productos es mucho más fácil. Se pueden restaurar a su estado original y mantener sus características químicas y biológicas después de ser regadas.
La tecnología de secado por congelación al vacío, también llamada secado por sublimación, es un método técnico que congela las muestras por adelantado y luego sublima su humedad en el estado de vacío.
Características
- Refrigeración sin CFC
- Curvas de secado de pantalla LCD, interfaz en inglés
- Gran apertura de condensador, condensador con función de precongelación
- compresor de bajo ruido, buena eficiencia, larga vida útil
- El condensador y el panel de operación son todos de acero inoxidable
- La cámara de secado con vidrio orgánico es segura y visible
- El estante y la bandeja son de acero inoxidable, el espacio entre bandejas se puede personalizar
- Pequeño volumen, operación fácil y conveniente
- La válvula de nitrógeno es opcional
- El dispositivo de prueba de punto eutéctico es opcional
- La interfaz de comunicación es opcional
- La refrigeración en cascada es opcional, aplicada para dispositivos de -80 ℃
Descripción técnica
| Model | YR05187 (current) |
| Lyophilization area | 0.08㎡ |
| Condenser capacity | 3-4 L/24h |
| Condenser temperature | -55 ℃ (-80 ℃ optional) |
| Vacuum degree | < 10 Pa |
| Material tray | ¢180mm, 3 layers |
| Bulk capacity | 0.8 L, 10 mm thickness |
| Capacity of vial Φ12mm | 560 pieces |
| Capacity of vial Φ16mm | 285 pieces |
| Capacity of vial Φ22mm | 165 pieces |
| Press style | Manually |
| Cooling | Air, with air currents, ambient temperature ≤25 ℃ |
| Voltage | 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz |
| Power | 700W |
| Host dimension | 460*625*(370+465) millimeter |
| Host weight | 41 kg |
Frequently Asked Questions about the Lyophilizer YR05187
How do I choose the right Lyophilizer YR05187 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
