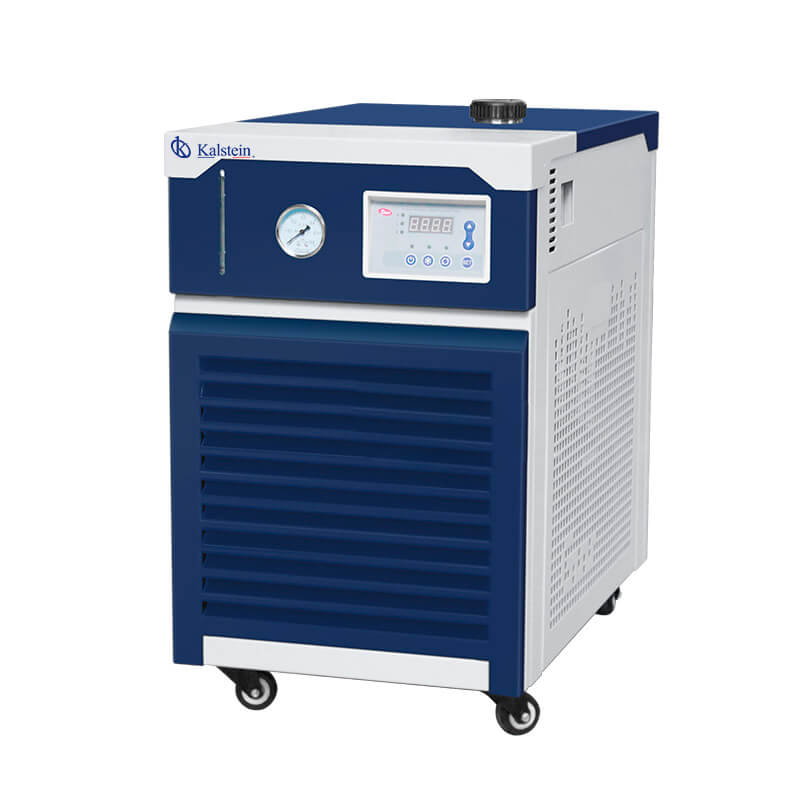

Recirculation Chiller YR02300: Principles of Operation and Scientific Fundamentals 2026
The YR02300 Recirculation Chiller is a sophisticated piece of laboratory equipment designed to provide stable low-temperature conditions necessary for a variety of scientific applications. This article delves into the principles of operation and the scientific fundamentals behind this model, elucidating how it operates effectively across various settings.
Understanding the YR02300: Key Scientific Principles
The YR02300 utilizes fundamental principles of thermodynamics and fluid mechanics to achieve its efficient cooling capabilities. Primarily, it operates based on the refrigeration cycle, which consists of four main processes: evaporation, compression, condensation, and expansion.
In the evaporation phase, the refrigerant absorbs heat from the fluid it is cooling, transitioning from a liquid to a gas. This phase is critical as it lowers the temperature of the circulating fluid. The gas is then compressed, increasing both its pressure and temperature. Following this, the gas is passed through a condenser where it releases heat to the environment and returns to a liquid state. Finally, the refrigerant undergoes an expansion phase, dropping in pressure and temperature, ready to absorb heat once again. This continuous cycle helps maintain the desired low-temperature conditions.
Technical Specifications of YR02300
| Specification | Details |
|---|---|
| Model | YR02300 |
| Operating Temperature Range | -30 to 5°C |
| Temperature Stability | ± 2°C |
| Power Supply | 220-240V~, 50/60Hz |
| Nominal Power | 1475 W |
| Cooling Capacity at 0°C | 6000 W |
| Refrigerant | R410A |
| Fluid Bath Volume | 40 L |
| Circulation Pump Flow Rate | 30 L/min |
| Dimensions | 650W x 1055D x 1070H mm |
| Net Weight | 195 kg |
Applications of the YR02300 in Various Fields
The versatility of the YR02300 makes it suitable for a wide range of applications across different sectors:
- Chemistry and Biology: Used for atomic absorption, ICP-MS, NMR, and biological fermenters, facilitating experiments that require precise temperature controls.
- Medical and Healthcare: Essential for maintaining low temperatures for biological samples, vaccines, and other critical medical supplies.
- Food Industry: Plays a crucial role in processes that require temperature regulation for food preservation and safety.
- Research and Education: Widely used in universities and research institutes to support various scientific experiments and educational purposes.
Design Choices and Their Scientific Justification
The design of the YR02300 is rooted in optimizing performance and reliability. Key design choices include:
- High-Performance Compressor: The unit is equipped with a globally recognized compressor that operates quietly and ensures stable performance.
- Closed Circulation System: This design minimizes evaporation and contamination of the bath fluid, thereby maintaining the integrity of the experiments conducted.
- Adjustable Pump Pressure: The capability to adjust pump pressure allows for flexibility in various applications, accommodating different experimental requirements.
Maintenance and Efficiency of the YR02300
Regular maintenance is critical to ensure the optimal functioning of the YR02300. Here are some essential tips:
- Check and replace filters regularly to avoid blockages that could hinder circulation.
- Inspect the refrigerant levels and refill as necessary to maintain efficiency.
- Monitor the temperature stability and make adjustments based on environmental changes.
- Clean the condenser coils periodically to prevent overheating and ensure optimal heat exchange.
Frequently Asked Questions
What is the cooling capacity of the YR02300 at different temperatures?
The YR02300 provides a cooling capacity of 6000 W at 0°C, 4000 W at -10°C, 2500 W at -20°C, and 7100 W at -25°C, making it versatile for various cooling needs.
How does the closed circulation system of the YR02300 work?
The closed circulation system of the YR02300 prevents evaporation and contamination by ensuring that the fluid remains within the system, circulating efficiently without exposure to environmental factors.
What type of refrigerant does the YR02300 use?
The YR02300 uses the environmentally friendly refrigerant R410A, compliant with international standards, ensuring efficient cooling without contributing to ozone depletion.
What should I do if the temperature stability is not within ±2°C?
If the temperature stability is outside the specified range, check for possible blockages in the circulation system, inspect the refrigerant levels, and consider recalibrating the system to ensure optimal performance.
How can I adjust the pump pressure on the YR02300?
The pump pressure can be adjusted via the control panel of the YR02300, allowing operators to tailor the pressure according to specific application requirements.
What maintenance is necessary to keep the YR02300 functioning optimally?
Regular maintenance includes replacing filters, checking refrigerant levels, inspecting for leaks, and cleaning condenser coils to maintain the efficiency and longevity of the equipment.
How does the YR02300 compare to alternative cooling methods?
Compared to alternative cooling methods, the YR02300 offers more precise temperature control, reduced evaporation loss, and increased reliability due to its closed circulation system and high-quality components.
