Description

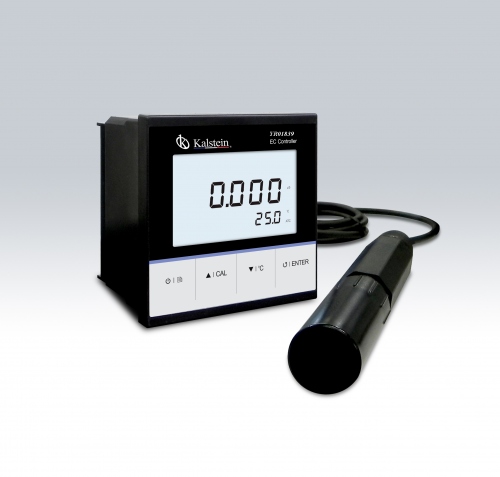

The YR01839 Online Conductivity Controller is a versatile and cost-effective solution designed for the industrial monitoring of water quality. This advanced device offers precise 1 to 3 point calibration and supports 4 to 20 mA outputs, making it ideal for measuring both conductivity and total dissolved solids (TDS) in various settings. Equipped with a platinum conductivity electrode, the controller ensures accurate measurement across its broad range of services. With its automatic temperature compensation and configurable settings, the YR01839 model stands out as a reliable choice for maintaining optimal water quality in industrial applications.
Market Price
The market price for conductivity controllers like the YR01839 varies based on features and capabilities, generally ranging from $300 to $600. Prices can fluctuate depending on the supplier and potential additional equipment or calibrations included in the purchase.
Frequently Asked Questions
Q: What is the range of conductivity measurement for this controller?
A: The YR01839 measures a conductivity range from 0.01 µS/cm to 200.0 mS/cm.
Q: Does the controller support automatic temperature compensation?
A: Yes, it offers automatic temperature compensation from 0 to 100°C (32 to 212°F).
Advantages and Disadvantages
Advantages: The YR01839 provides accurate and reliable readings with automatic temperature compensation, easy configuration options, and a broad range of measurement. It’s an economical choice for reliable conductivity monitoring.
Disadvantages: The setup may require some technical expertise, especially when configuring the calibration and output settings initially.
Field Application
This product is utilized effectively in various industrial and water treatment facilities. The YR01839 is perfect for continuous monitoring, helping ensure that water quality standards are maintained at all times, which is vital for processes requiring pure or specific water parameters.
Recommendations
For optimal use, regularly calibrate the device according to the manufacturer’s instructions, using the recommended calibration solutions. It’s also advisable to check connections and settings periodically to ensure they remain optimal for your specific application. For more information or to receive a quote, take advantage of our platform, Kalstein Plus, to generate a detailed cost breakdown tailored to your requirements.
Features
- Inexpensive inline solution with a platinum conductivity electrode.
- 1 to 3 point calibration with automatic recognition of standards.
- Selectable settings for cell constant and temperature coefficient.
- Automatic temperature compensation.
- Customizable configuration menu.
- Reset function to restore default settings.
Technical Specifications
| Model | YR01839 |
| Conductivity Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 84uS, 1413uS, 12.88mS, 111.8mS |
| TDS Range | 0 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| TDS Factor | 0.1 to 1.0 (default 0.5) |
| Temperature Range | 0 to 100°C/32 to 212°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±1°C/±1.8°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| Signal Output | 4 to 20mA |
| Load | Max. 500Ω |
| Low or High Alarm | 0.02uS/cm to 20.0mS/cm, selectable |
| Communication Interface | RS485 |
| Connection Terminals | Detachable screw terminals |
| Temperature Compensation | 0 to 100°C/32 to 212°F, automatic |
| Temperature Coefficient | Linear (0.0 to 10.0%/°C) |
| Reference Temperature | 25°C |
| Cell Constant | K=0.1, 1, 10 |
| Environmental Conditions | Ambient temperature <60°C, relative humidity <80% |
| Power | DC24V |
| Dimensions | 96(L)×96(W)×75(H)mm |
| Weight | 350g |
