Description

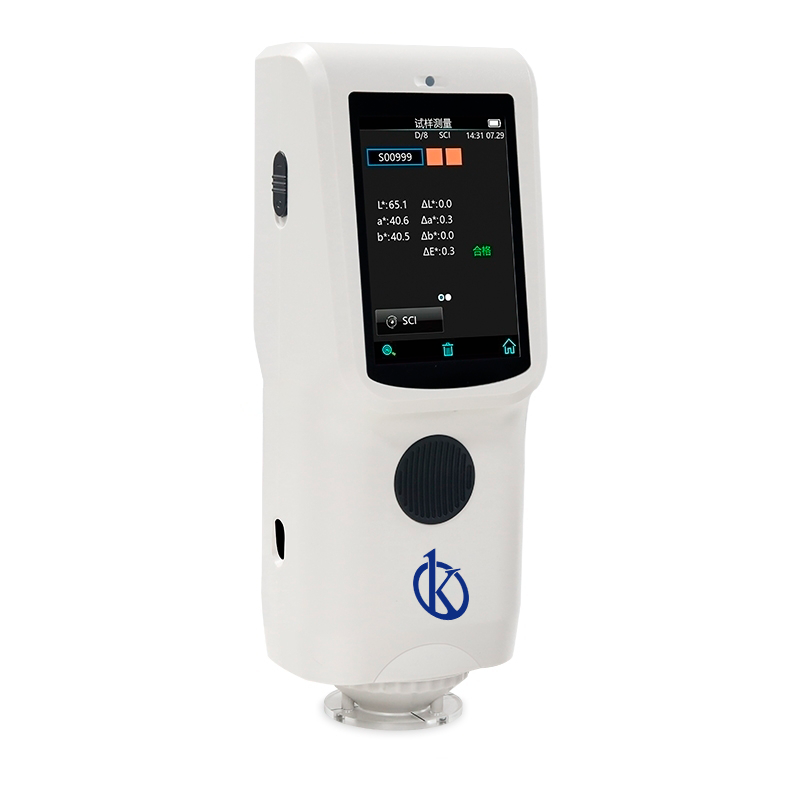

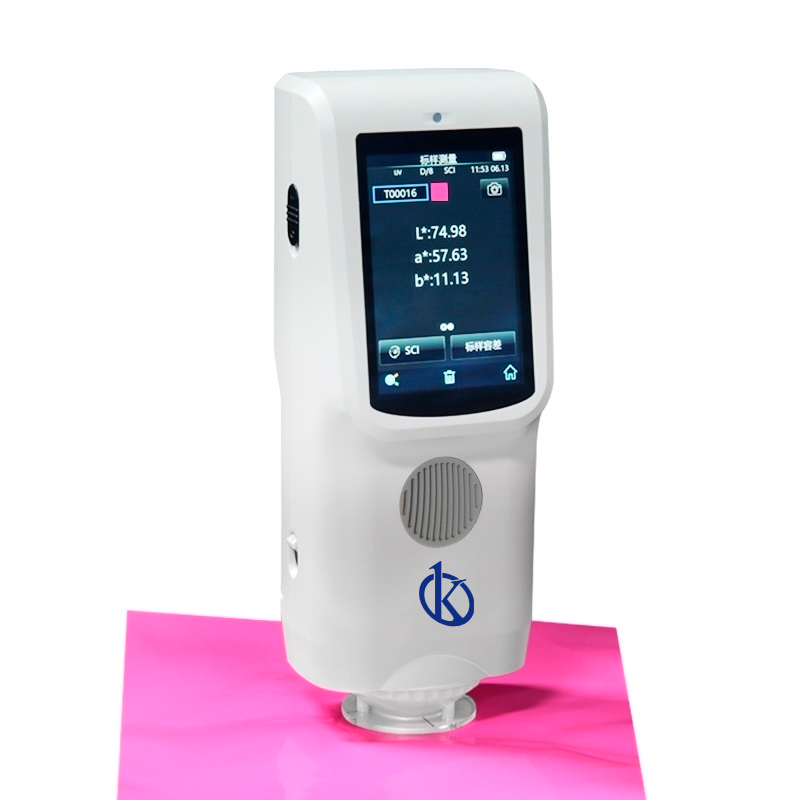

The Spectrocolorimeter YR05516 – YR05517 is an advanced portable device designed for precise color difference measurements across various industries. With its cutting-edge spectral architecture and autonomous core technology, this device ensures the accuracy of both relative ΔE and absolute values of L, A, and B over extended periods. It features a built-in silicon photodiode array sensor, enabling high precision and repeatability with a measurement diameter of 8mm, suited for sectors like plastics, electronics, textiles, and ceramics. Its ease of use, without needing a computer or additional software, makes it a versatile tool for on-the-go assessments and quality control measures.
Market Price
Understanding the market value of a spectrocolorimeter is crucial for making informed purchasing decisions. Typically, these devices range between $3600 USD to $4400 USD. This estimation helps set expectations and prepares potential buyers for investment in such high-precision instruments. For a more competitive quotation, you are encouraged to explore the Kalstein Plus platform to receive a personalized quote tailored to your needs.
Frequently Asked Questions
- What industries can benefit from the Spectrocolorimeter YR05516 – YR05517? This device is perfect for industries such as plastics, electronics, paint and ink, textile printing and dyeing, ceramics, and more.
- How long does the battery last? The lithium battery supports up to 6000 measurements within 8 hours, and it is rechargeable, ensuring long-term usability.
- Does the device require a computer connection? No, it operates independently, allowing quick and easy color difference measurements on site.
Advantages and Disadvantages
The Spectrocolorimeter YR05516 – YR05517 offers several advantages, including high measurement accuracy, ease of use, and long-lasting battery life. Its large data storage capacity and quick data analysis enhance user efficiency. However, like any advanced equipment, potential buyers should consider the investment cost and the need for regular calibration and maintenance to ensure optimal performance.
Field Use

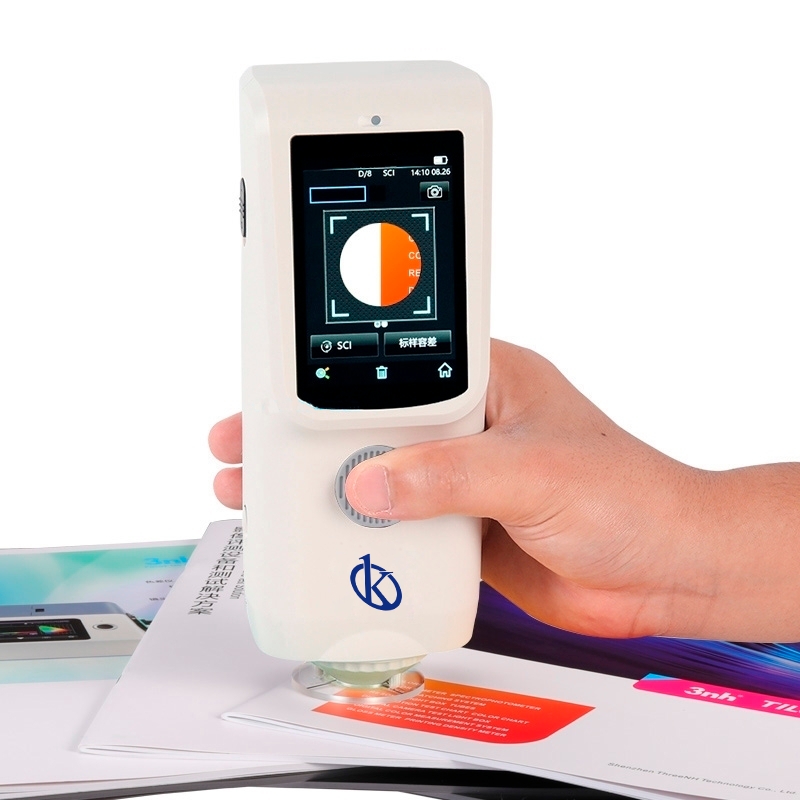

In practical scenarios, the Spectrocolorimeter YR05516 – YR05517 proves invaluable for ensuring color accuracy and consistency, whether on a production floor or in quality control laboratories. Its portable design allows for seamless integration into various settings, enabling industries to maintain strict color standards and prevent production errors due to color discrepancies.
Recommendations
To maximize the performance of the Spectrocolorimeter YR05516 – YR05517, regular calibration is recommended. Ensure that the calibration plates are stored properly to maintain accuracy. Utilizing the device’s storage capabilities for sample data can save time and enhance workflow efficiency. Furthermore, leveraging Kalstein Plus for automatic quotations can simplify the procurement process, providing tailored solutions for your specific requirements.
Features
- 8 mm diameter measurement for versatile industry applications
- High precision with silicon photodiode array sensors
- Durable LED light source supporting over 3 million measurements
- Extensive data storage with quick search and comparison features
- Intuitive interface with a true color capacitive touch screen
Technical Specifications
| Model | YR05516 | YR05517 |
| Optical Geometry | D/8(diffused illumination, | D/8(diffused illumination, |
| 8-degree viewing angle) | 8-degree viewing angle) | |
| SCI/SCE Mode | SCI/SCE Mode | |
| Comply to CIE No.15，GB/T | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| 3978,GB 2893,GB/T | ||
| 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
| Characteristic | double apertures, more adaptability; Used for accurate | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| color measurement and quality control in plastic electronics, | ||
| paint and ink, textile and garment printing and dyeing, printing, | ||
| ceramics and other industries | ||
| Integrating Sphere Size | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm | 400～700nm |
| Wavelength Interval | 10nm | 10nm |
| Semiband Width | 10nm | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm | Single Apertures：Φ8mm/Φ10mm |
| Specular Component | SCI/SCE | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) |
| Lab99 Munsell(C/2) | ||
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00, DINΔE99 |
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, | Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | |
| Opacity,Color Card Search | ||
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),
F3,F4,F5,F6,F7(DLF), |
D65,A,C,D50,F2(CWF),
F7(DLF),F10 |
| F8,F9,F10(TPL5),F11(TL84),
F12(TL83/U30) |
(TPL5),F11(TL84),F12
(TL83/U30) |
|
| Displayed Data | Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.01 | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 | MAV/SCI, Within ΔE*ab 0.3 |
| (Average for 12 BCRA Series II color tiles) | (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average
Measurement(2-99times) |
Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements
within 8 |
Li-ion battery, 6000 measurements within 8 hours |
| hours | ||
| Illuminant Life Span | 5 years, more than 3 million times | 5 years, more than 3 million times measurements |
| measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch S | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| creen | ||

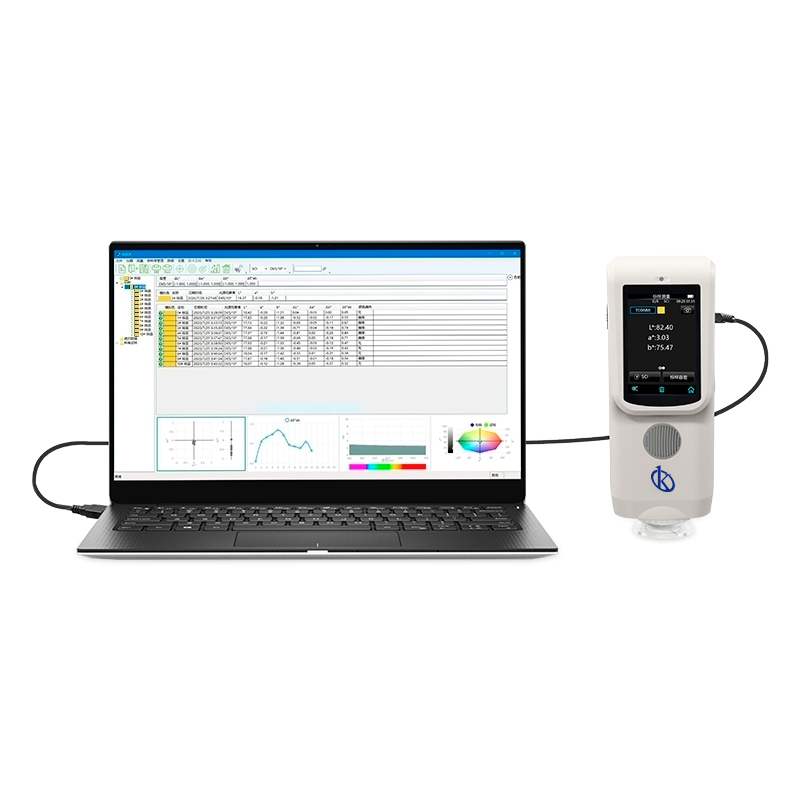

| Data Port | USB,Bluetooth 5.0 | USB |
| Data Storage | Standard 1000 Pcs, Sample 30000
Pcs(One |
Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) |
| data is able to include SCI/SCE) | ||
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |

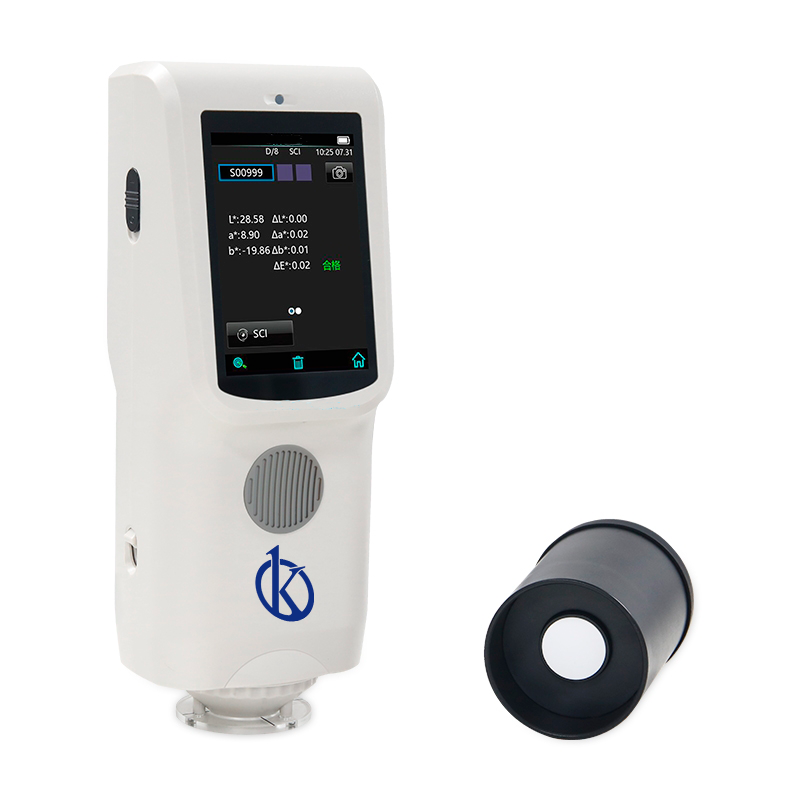

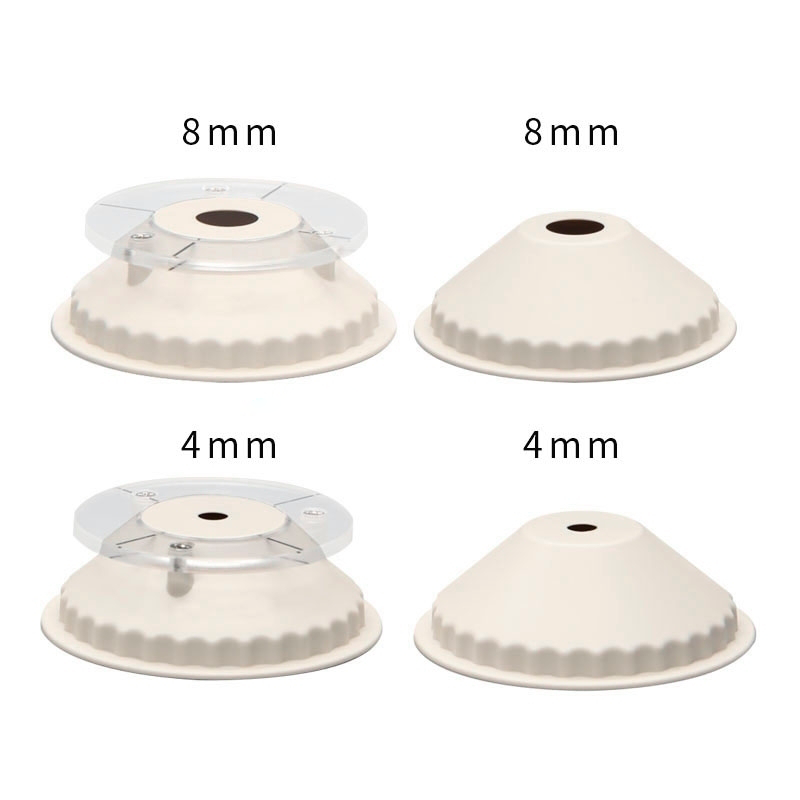

| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test
Box,Bluetooth Micro Printer |
USB Micro Printer, Powder Test Box, |
| Notes | Technical parameters are only for
reference, subject to the actual sale of the product |
Technical parameters are
only for reference, subject to the actual sale of the product |
