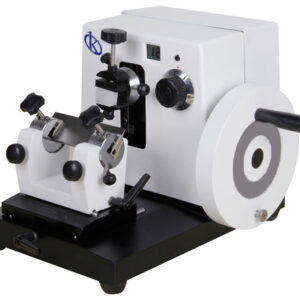

Semi-automatic detection microtome YR416-1

Manufacturer: Kalstein



Description

The Semi-Automatic Detection Microtome YR416-1 offers maximum reliability and operator comfort, standing out as a universal instrument for paraffin sectioning and hard sectioning techniques in biology, medicine, and industry. Its cutting motor ensures precise and reproducible sections. Additionally, the adjustable cutting window allows the preselected speed to apply only within the cutting window, facilitating the sectioning of delicate specimens in a short period. The microtome also allows easy switching between fine and coarse sectioning, with an adjustable section thickness range of 0.25 μm to 100 μm.

Market Price

The Semi-Automatic Detection Microtome YR416-1 is available in the market with prices ranging from $9,000 to $12,000 USD, depending on additional specifications and shipping costs. To obtain a detailed and personalized quote, we recommend using our Kalstein Plus platform. Modernize your laboratory with this advanced technology that enhances the precision and efficiency of sample sectioning.

Frequently Asked Questions

  • What is the minimum section thickness setting for the YR416-1?
    The minimum section thickness setting is 0.25 μm.
  • What sample size can the YR416-1 handle?
    The YR416-1 can handle samples up to 70 × 70 mm.
  • Is it easy to switch between fine and coarse sectioning on the YR416-1?
    Yes, you can easily switch between fine and coarse sectioning even while sectioning.

Advantages and Disadvantages

Advantages:

  • High precision in sample sectioning.
  • Semi-automatic operation for greater user comfort.
  • Ergonomic design for comfortable and safe use.
  • Adjustable cutting window for precise sectioning of delicate specimens.

Disadvantages:

  • May require initial time to familiarize with all functions.
  • Regular maintenance needed to ensure optimal performance.

Product Usage in the Field

The Semi-Automatic Detection Microtome YR416-1 is essential in histology and pathology laboratories for precise and efficient tissue sample processing. Its ability to maintain precise control of section thickness and advance speed facilitates the handling of various samples simultaneously. Additionally, its robust and compact design allows for use in different areas of the laboratory, enhancing work flexibility and efficiency.

Recommendations

To maximize the performance of the YR416-1, it is recommended to perform regular calibrations and adjustments according to the specifications of your experiments. Follow the detailed maintenance instructions in the user manual to ensure precise and consistent results with each use. Use the semi-automatic control system to adjust the operating times according to the specific needs of your laboratory.

Discover how the Semi-Automatic Detection Microtome YR416-1 can improve precision and efficiency in your laboratory. Request a personalized quote now through Kalstein Plus and move towards greater efficiency in your sample sectioning processes. Get your automatic quote today and experience innovation in your daily laboratory work.

Technical Specifications

Model YR416-1
Minimum Setting of Sectioning Thickness 0.25μm
Horizontal Feed 28mm
Vertical Specimen Stroke 70mm
Specimen Holder Rotation at any angle within 360 degrees
Movement Range of the Base of BladeHolder Base 0-60mm (front to back)
Movement Range of the Blade Press plate 0-23mm
Specimen Clamp Rotation at any angle within 360 degrees
Specimen Orientation XY – 8°
Maximum Specimen Size 70×70mm
Feed speed adjust 1500μm/s ~ 3500μm/s
Precision Error ±1%
Working Voltage AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power 100W
Dimensions 575×420×330 mm (W×D×H)
Net Weight 37kg

Additional information

Weight 50 kg
