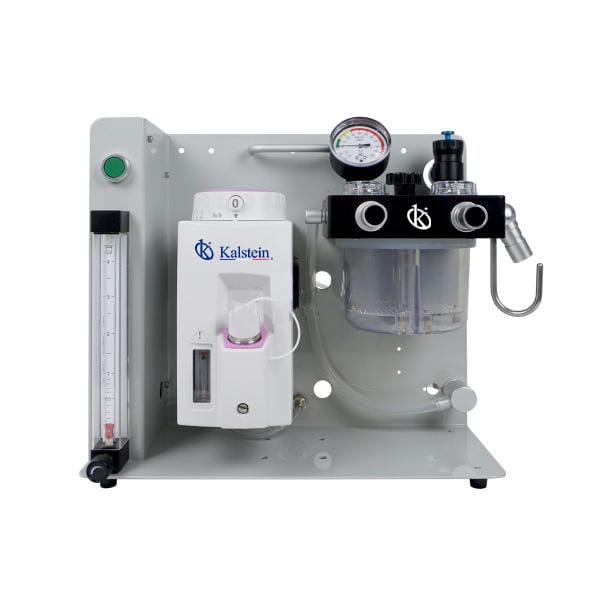

Portable Veterinary Anesthesia Machine YR06097

ManufacturerKalstein

Description

The Portable Veterinary Anesthesia Machine YR06097 is a compact veterinary anesthesia machine that is very stable and reliable. It is widely used for pet hospital, veterinary clinic, animal zoo, farm department and so on.

Standard configuration

Anesthesia machine, one vaporizer, one disposable breath circuit, one reservior bag, one O2 gas source pipeline.

Optional configuration

Enflurane, Isoflurane, Halothane or Sevoflurane vaporizer, Trolley, wall-mounted arm,  shelf for animal monitor.

Technical Specifications
Model YR06097
Respiration mode Manual mode, open mode, closed mode, semi-open and semi-closed mode
Gas source O2, quick inlet port
O2 FLUSH 20L/min~75L /min
Flow meter O2, 0L/min ~10L/min, adjustable easily
Airway pressure gauge -20cmH2O-100cmH20
APL valve (Pop Off valve) Adjustable easily, range: 0-60cmH20
Inspiration valve and expiration valve Visible dome- type, ISO standard port, diameter 22mm
Soda lime chamber 2 Liter, easy to change soda lime within one minute
Bains connector Open breath system, like Bains circuit and Jackson circuit
Anesthesia vaporizer Enflurane, Isoflurane, Halothane or Sevoflurane vaporizer. Supply selectatec compatible mounting bar, ISO 23mm mounting bar is also compatible
Auxiliary gas source output Supply the gas source to anesthesia ventilator
Three methods Tabletop, trolley or wall-mounted type (trolley and wall-amounted type is optional)

Additional information

Weight 21 kg
