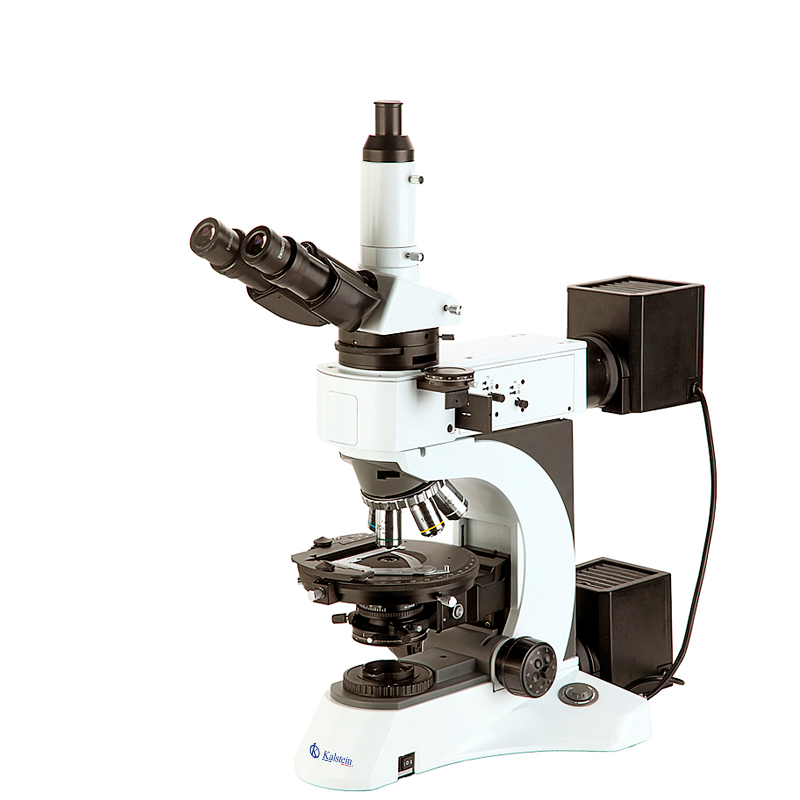

| Model |
YR0262 |
YR0263 |
| Optical System |
Infinity Optical System |
| Head |

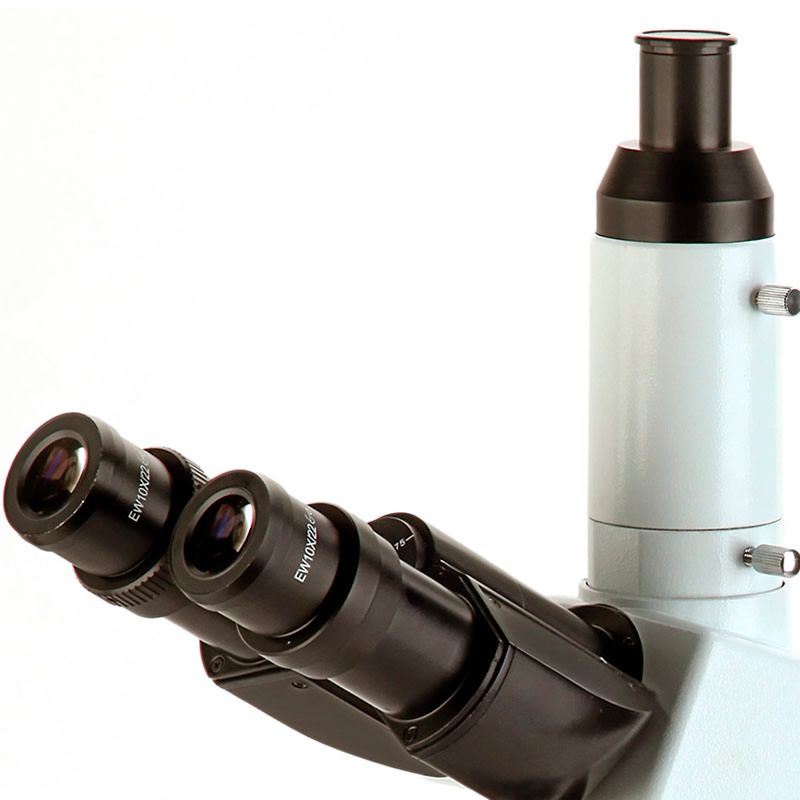

Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable |
| Eyepiece |
Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm |
| Plan Eyepiece With Scale of Crosshair |
| Plan Eyepiece With Cross |
| Plan Eyepiece With Gridding |

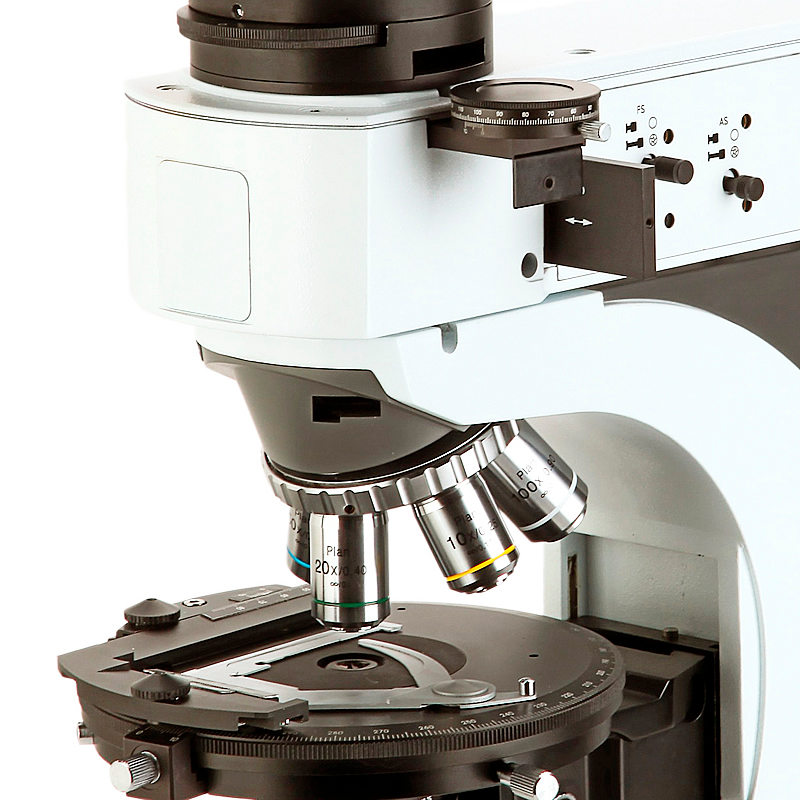

| Nosepiece |
Backward Quintuple Nosepiece |
| Objective |
Strainfree LWD Infinity Plan Achromatic Objective |
5x/0.12/∞/- W.D.15.5mm |
| 10x/0.25/∞/- W.D.10mm |
| 20x/0.4/∞/0 W.D.4.3mm |
| 50x/0.75/∞/0 W.D.0.32mm |
| 100x/0.8/∞/0 W.D.2mm |
| Strainfree Infinity Plan Achromatic Objective |
40x/0.65/∞/0.17 W.D.0.54mm |
– |
o |
| 100x/1.25/∞/0.17 W.D.0.13mm |
– |
o |
| Nosepiece |
Backward Quintuple Nosepiece, Center Adjustable |
| Analyzer |
360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) |
| –Switch Between Orthoscopic And Conoscopic Observation |
| –Bertrand Lens Postion Adjustable |
| –Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge |
| Working Stage |
Polarizing Rotatable Stage, Dia.170mm, Center Adjustable |
| 360° Scale, Minimum Division 1° |
| Minimum Reading 6′ By Means of Vernial Scale |
| 45° Click Stop Knob |
| Condenser |
Strainfree Swing Condenser N.A.0.95/0.25 |

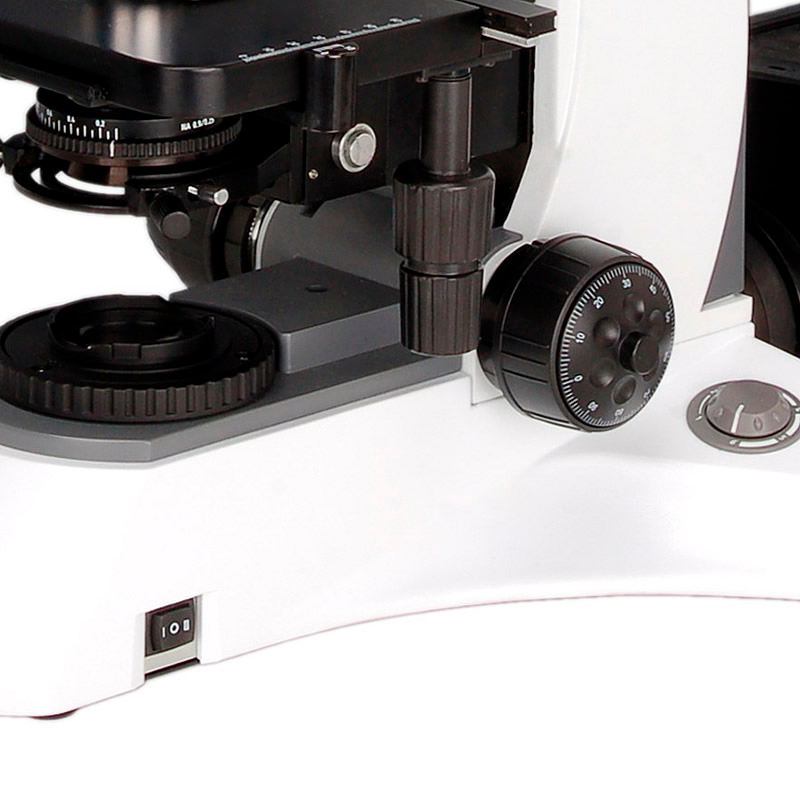

| Focusing |
Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation |
| Polarizer |
For Reflect: Fixed Polarizer |
| For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable |
– |
o |
| Illumination |
Reflect Light Halogen Lamp 24V100W, Brightness Adjustable |
| Transmit Light Halogen Lamp 24V100W,Brightness Adjustable |
– |
o |
| Blue Filter, Dia.45mm |
| Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories |
| Stage |
Attachable Stage, Moving Range 30*40mm |
YR0263-op1 |
| Filter |
For |
Netural Filter ND25, Dia.45mm |
YR0263-op2 |
| Transmit Light: |
Netural Filter ND6, Dia.45mm |
YR0263-op3 |
| For |
Blue Filter, Dia.25mm |
YR0263-op4 |
| Reflect Light: |
Netural Filter ND25, Dia.25mm |
YR0263-op5 |
|
Netural Filter ND6, Dia.25mm |
YR0263-op6 |
| Adapter |
Photo Adapter |
YR0263-op7 |
| C-Mount 1.0x |
YR0263-op8 |
| C-Mount 0.5x |
YR0263-op9 |
