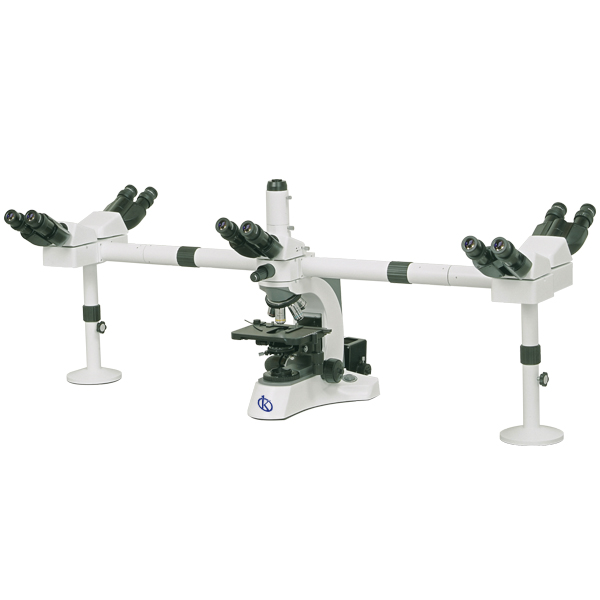

Multivision binocular microscope YR0232 // YR0235

The Multivision Binocular Microscope YR0232 // YR0235 is a revolutionary instrument designed to enhance collaborative studies in various fields, including clinical settings, scientific research, and educational demonstrations. Equipped with a modular multi-viewing system, it delivers outstanding image quality for every observer owing to its advanced precision-coated glass optics. The device allows multiple users to examine a specimen simultaneously, catering to diverse needs and enhancing collaborative learning and diagnostics. The microscopes are available in standard configurations for 2 to 10 users, with custom systems for up to 20 viewing stations available upon request.

Market Price

The price of multi-viewing microscopes varies significantly based on features and specifications. Generally, the cost for such high-end instruments ranges from approximately 4,000 USD to 4,700 USD. Investing in a premium quality microscope like the Multivision Binocular Microscope YR0232 // YR0235 ensures users receive exceptional clarity and functionality, elevating both research and learning experiences. For exact pricing, consider generating a quotation using the Kalstein Plus platform.

Frequently Asked Questions

• How many users can view simultaneously? The system supports configurations for 2, 3, 4, 5, up to 10 users, with custom options for 20 viewing stations.
• What makes this microscope different from others? It offers a modular multi-view system with superior image quality and an infinity optical system, enhancing collaborative viewing.
• Can this system be customized? Yes, custom configurations are available to accommodate specific user requirements.
• What is the delivery time for customized systems? Delivery times vary based on specifications; contacting Kalstein for exact details is recommended.

Advantages and Disadvantages

Advantages:

• Exceptional image quality through precision-coated optics.
• Accommodates multiple simultaneous viewers, ideal for collaborative environments.
• Highly customizable to meet specific user requirements.
• Includes modern features such as LED pointers for enhanced instruction.

Disadvantages:

• Potential higher initial investment compared to single-view microscopes.
• Requires more space due to additional viewing stations.

Product Use in Field

In clinical settings, the Multivision Binocular Microscope YR0232 // YR0235 facilitates detailed analysis by multiple practitioners, enhancing diagnostic accuracy and collaborative research. In educational environments, it allows multiple students to observe specimens simultaneously, improving learning outcomes through direct observation and interactive teaching.

Recommendations

To ensure optimal performance, regular maintenance checks on optics and illumination systems are recommended. For institutions with evolving needs, consider opting for customizable systems. Always follow user manuals for precise calibration and maintenance guidelines. To experience uninterrupted performance, keeping a record of regular servicing and cleaning is essential.

Features

• Modular multi-viewing system for enhanced collaboration.
• Infinity optical system ensures superb clarity and resolution.
• LED pointer with adjustable brightness for precise instruction.
• Available with various configurations to suit different user groups.
• Customizable for up to 20 viewing stations.

Technical Specifications

Model		YR0232	YR0233	YR0234	YR0235
Optical system	Infinity Optical System
Visualization Head	Uncompensated trinocular head, 30° inclined, 360° rotatable, interpapillary distance 48-75mm, rotatable 360°, interpapillary distance 48-75mm	1 piece	1 piece	1 piece	1 piece
	Uncompensated binocular head, 30° inclined, 360° rotatable, interpapillary distance 48-75mm, rotatable 360°, interpapillary distance 48-75mm	4 pieces	2 pieces	1 pieces	1 pieces
Ocular	EW10x/20 Extra Wide Field Eyepiece	10 pieces	6 pieces	4 pieces	4 pieces
Muserola	Quintuple Reverse Revolver
Target	Infinity plan achromatic objective 4x, 10x, 40x, 100x
Capacitor	Swing capacitor NA0.9/0.25
Approach	Coaxial coaxial fine and coarse focus adjustment, fine division 0.001mm
Stage	Double-layer mechanical stage 185x142mm, moving range 75x55mm
Kohler Lighting	External lighting, halogen lamp 24V/100W
Cursor	Green LED pointer, adjustable brightness
	Dual color pointer, adjustable brightness
Photo Attachment
Video Adapter	Mounting on C1x
	C-mount 0.5x
