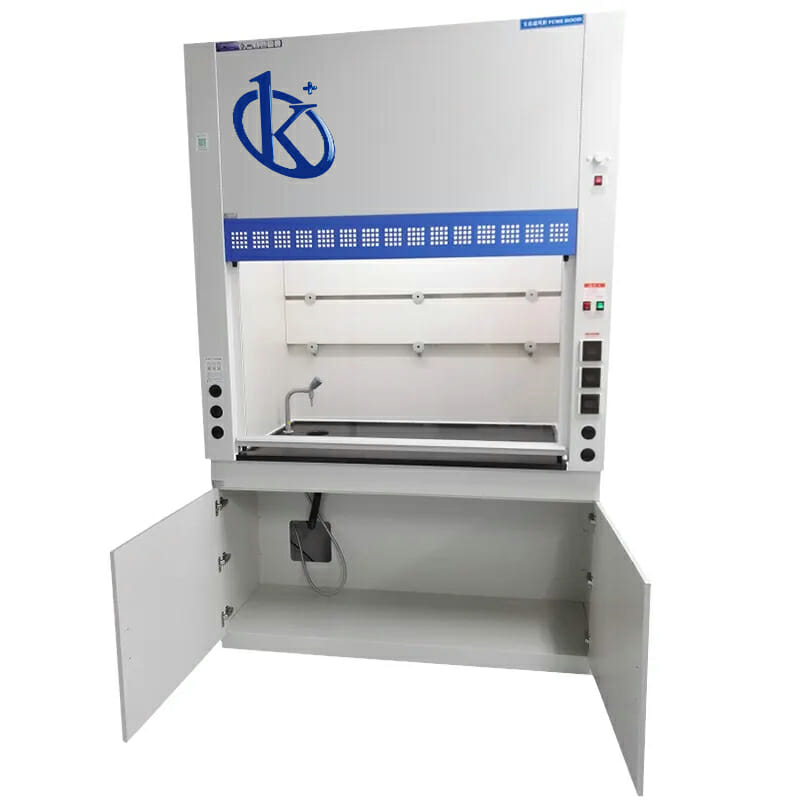

Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05817 // YR05819

ManufacturerKalstein

Description

The YR05817 // YR05819 laboratory fume hood ensures safety when handling aggressive chemicals in labs and hospitals. Its 1.2 mm cold-rolled steel body, coated with epoxy resin powder, offers strong resistance to acids and alkalis. The 12.7 mm thick phenolic resin work surface is highly chemical-resistant, making it durable in corrosive environments. With a 5 mm tempered glass window and an adjustable axial flow blower, this fume hood efficiently extracts toxic gases, keeping noise levels below 60 dB.

Market Price

The YR05817 // YR05819 fume hood typically costs between $1500 and $1800, depending on the model and specifications. This price reflects the quality materials, including steel and phenolic resin, as well as the advanced safety technology. It’s a solid investment for labs and hospitals that prioritize durable and reliable safety equipment.

Frequently Asked Questions

  • Is the YR05817 // YR05819 fume hood easy to use?
    Yes, the fume hood is simple to operate. The control panel allows manual adjustments to the blower speed and window height, ensuring comfortable use.
  • What protection does it offer?
    It protects operators from toxic fumes and gases, thanks to its adjustable ventilation system and corrosion-resistant construction.
  • What is the noise level?
    The hood operates quietly, keeping noise levels under 60 dB, which makes for a peaceful work environment.

Advantages and Disadvantages

The YR05817 // YR05819 offers robust construction, chemical-resistant work surfaces, and adjustable airflow for operator safety. Additionally, its low noise level makes it ideal for busy labs. However, its higher price might be a drawback for labs with tighter budgets.

Field Use

This fume hood works well in labs and hospitals that handle hazardous chemicals. Its resistance to acids and alkalis ensures long-term use under tough conditions. The effective ventilation system clears fumes quickly, protecting users and maintaining a safe workspace.

Recommendations

To maintain the YR05817 // YR05819 fume hood, clean the ventilation ducts regularly and check the blower and window controls. Operating it within the recommended airflow speed will maximize its durability and efficiency.

Improve your lab’s safety and efficiency today! Request a quote from Kalstein Plus and see how the YR05817 // YR05819 fume hood meets your needs. It will provide a safe and controlled work environment at all times.

Technical Specifications

Model YR05817 YR05818 YR05819
External Size (W*D*H) (mm)  1200*800*2350 1500*800*2350 1800*800*2350
Internal Size (W*D*H) (mm)  950*700*1150 1250*700*1150 1550*700*1150
Work Surface  Height  800mm
Max Opening of window   750mm
Air Velocity/Exhaust air volume  0.4-0.6m/s,800-1000m³/h
Noise  ≤60dB
LED Lamp  10W*1
Blower  Built-in axial flow blower;Speed adjustable.
Front Window  Manual,5mm toughened glass,height adjustable.
Power Supply  AC220V±10%,50/60Hz;
Consumption  100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard  Accessory   LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*3
3 meter PP duct,Diameter:250mm
Optional  Accessory epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink
Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight   235

265

300

Additional information

Weight N/A
Model

YR05817, YR05818, YR05819
