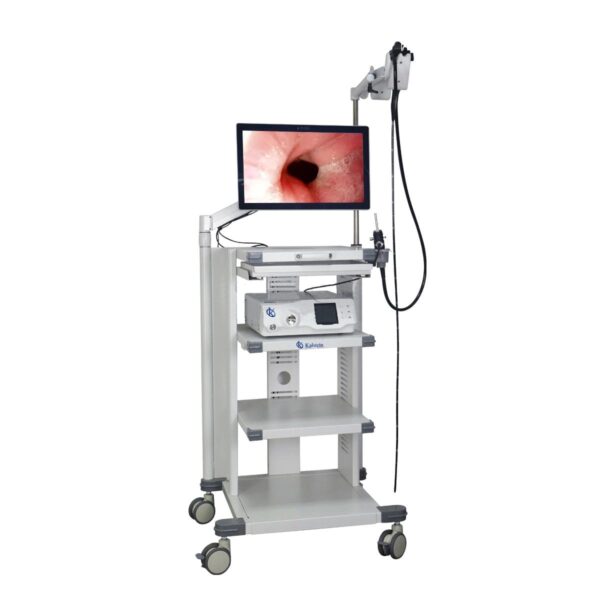

High-Definition Veterinary Video Endoscope YR06145//YR06150

ManufacturerKalstein

Description

Wider clinical applications for gastroscopy, colonoscopy and bronchoscopy in companionanimals like dogs and cats, and for gastroscopy, colonoscopy, bronchoscopy, esophagos-copy, hysteroscopy, rhinoscopy, pharynogoscopy and laryngoscopy in large animals likehorses and cattle.

Features
  • Professional endoscope image workstation to recall medical data truly and accurately
  • Medical record management system to support report printing
  • lmage processor with 21.5-inch touch screen medical grade monitor
  • High-definition CMOS technology with 720P or 1080P resolution for better viewing
  • Ergonomic endoscope handle with multi-function buttons and 4-way angulation
  • High brightness, high contrast and wide viewing angle
  • High brightness LED light source with good color restoration and long operation life
  • 9-level brightness adjustment for a variety of scenes
Technical Specifications
Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Resolution
YR06145 6.8 mm 2.2 mm 1500 mm 120° 3~100 mm 210° (U), 130° (D)
100° (R), 100° (L)
HD 720P
(1M pixels)
YR06146 7.8 mm 2.8mm 1500 mm 120° 3~100 mm 180° (U), 130° (D)
100° (R), 100° (L)
HD 720P
(1M pixels)
YR06147 7.8mm 2.2mm 1500 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06148 9.2mm 2.8mm 1500 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06149 9.2mm 2.8mm 3000 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06150 11.5mm 3.2mm 3500 mm 140° 3~100mm 180°(U), 130°(D)
160°(R),160°(L)
FHD 1080P
(2M pixels)

Additional information

Weight 8 kg
Model

YR06145, YR06146, YR06147, YR06148, YR06149, YR06150
