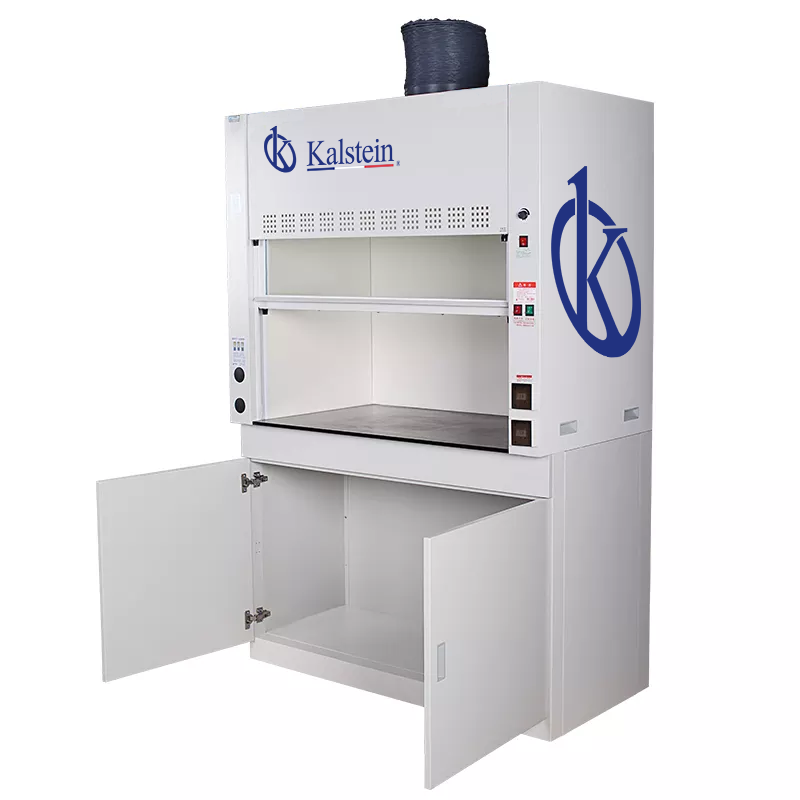

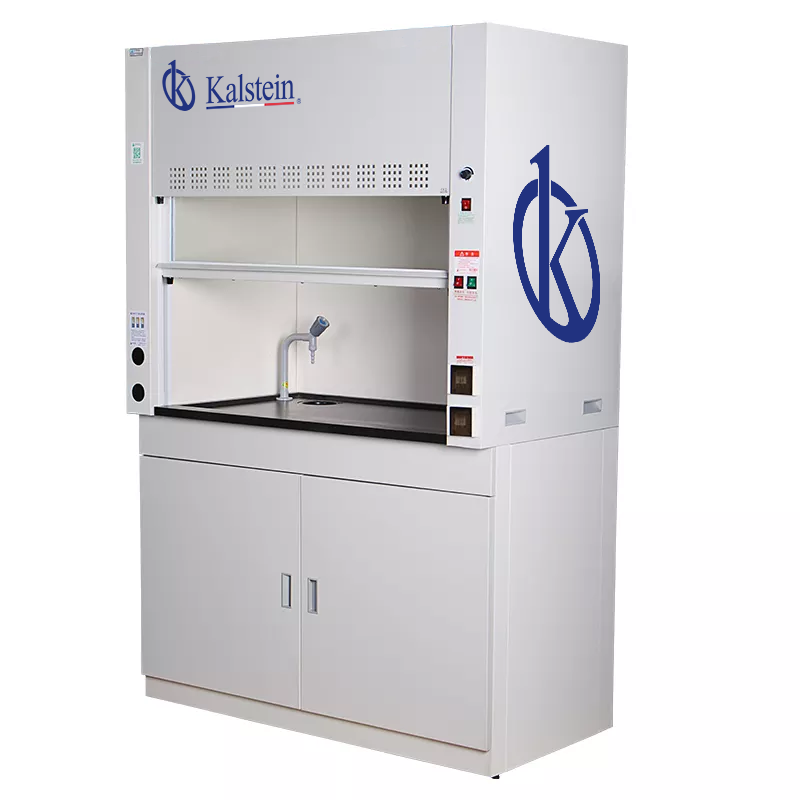

Epoxy-Coated Steel Basic Chemical Laboratory Fume Hood YR05813 // YR05816

Description

The YR05813 // YR05816 basic chemical laboratory fume hood is an essential tool for ensuring safety in labs handling chemical substances. Built with a 1.2 mm cold-rolled steel main body and epoxy resin coating, this fume hood offers exceptional resistance to corrosion from strong acids and alkalis. The 12.7 mm thick phenolic resin work surface is highly chemical-resistant, providing durability in demanding environments. With an adjustable 5 mm tempered glass front window and an integrated axial flow blower, this equipment ensures efficient ventilation with a low noise level, under 60 dB, to maintain a safe working environment.

Market Price

The price of the YR05813 // YR05816 basic chemical laboratory fume hood ranges from $1200 to $1700, depending on the size and additional specifications selected. This cost reflects the quality of the materials used and advanced features like its adjustable ventilation system and sturdy structure. For labs seeking to meet high safety and efficiency standards, this fume hood is a strategic investment.

Frequently Asked Questions

Is the YR05813 // YR05816 fume hood easy to operate?
Yes, it is easy to use. The front window is manually adjustable, and the axial flow fan has speed control to adapt to different ventilation needs.
What type of protection does this fume hood offer?
It provides full protection against toxic vapors and gases, thanks to its efficient ventilation system and corrosion-resistant materials.
What is the noise level during operation?
The noise level is below 60 dB, ensuring a quiet and efficient working environment.

Advantages and Disadvantages

The main advantages of the YR05813 // YR05816 fume hood include its robust construction, materials resistant to aggressive chemicals, and quiet operation. Additionally, its adjustable fan allows it to adapt to various extraction needs. A possible disadvantage is its price, which may be higher compared to other fume hoods on the market, presenting a challenge for labs with tighter budgets.

Field Use

This fume hood is ideal for basic chemistry labs that require protection against toxic vapors. Its resistance to strong acids and alkalis makes it an excellent choice for research, educational, or industrial laboratories working with corrosive substances. Moreover, its easy handling and compact design make it highly efficient for use in limited spaces, always ensuring a clean and safe working environment.

Recommendations

To prolong the lifespan of the YR05813 // YR05816 fume hood, regular maintenance is recommended, including cleaning the ventilation ducts and periodically checking the speed controls for the fan and window. Additionally, follow the recommended airflow speed guidelines to optimize its performance and efficiency.

Don’t miss the opportunity to enhance your lab’s safety. Request a quote today through Kalstein Plus and discover how the YR05813 // YR05816 basic chemical laboratory fume hood can be the perfect solution for your needs, ensuring a safe and controlled working environment.

Technical Specifications

Model		YR05813	YR05814	YR05815	YR05816
*External Size (WDH) (mm)*		8006501900	10006501900	12006501900	15006501900
*Internal Size (WDH) (mm)*		600600750	800600750	1000600750	1300600750
Work Surface Height		800mm
Max Opening of window		750mm
Air Velocity/Exhaust air volume		0.4-0.6m/s,800-1000m³/h
Noise		≤60dB
LED Lamp		10W*1
Blower		Built-in axial flow blower;Speed adjustable.
Front Window		Manual,5mm toughened glass,height adjustable.
Power Supply		AC220V±10%,50/60Hz;
Consumption		100W
Material	Main Body	1.2mm thickness cold-rolled steel
		with epoxy resin powder coating.
	Inner Side	5mm thickness compact,resistant
		to strong acid and alkali.
	Work Table	Chemical resistant phenolic resin,
		thickness 12.7mm.
Standard Accessory		LED lamp,Built-in axial flow blower with speed adjustable.
		Waterproof socket*2
		3 meter PP duct,Diameter:250mm
Optional Accessory		epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink
		Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight		110	110	115	120

Additional information

Weight	N/A
Model	YR05813, YR05814, YR05815, YR05816
