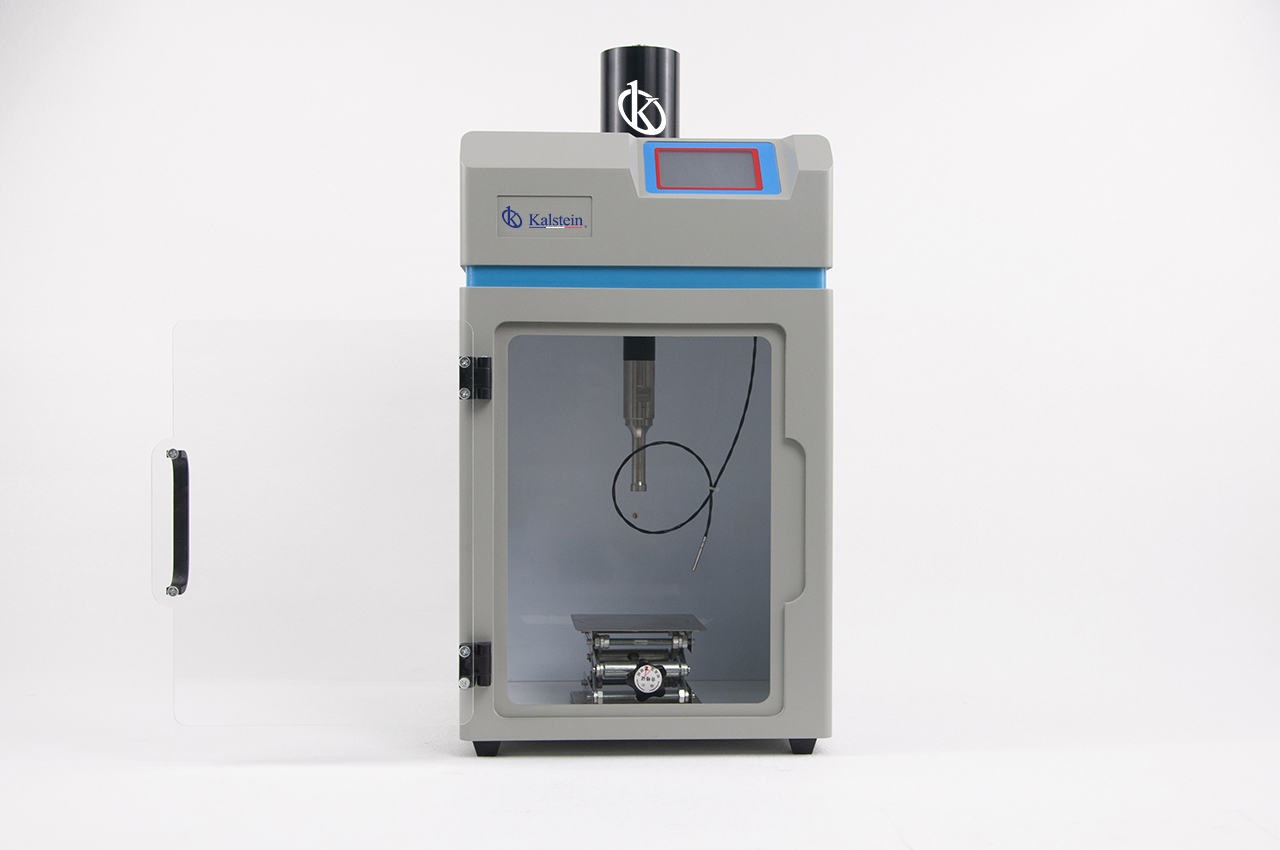

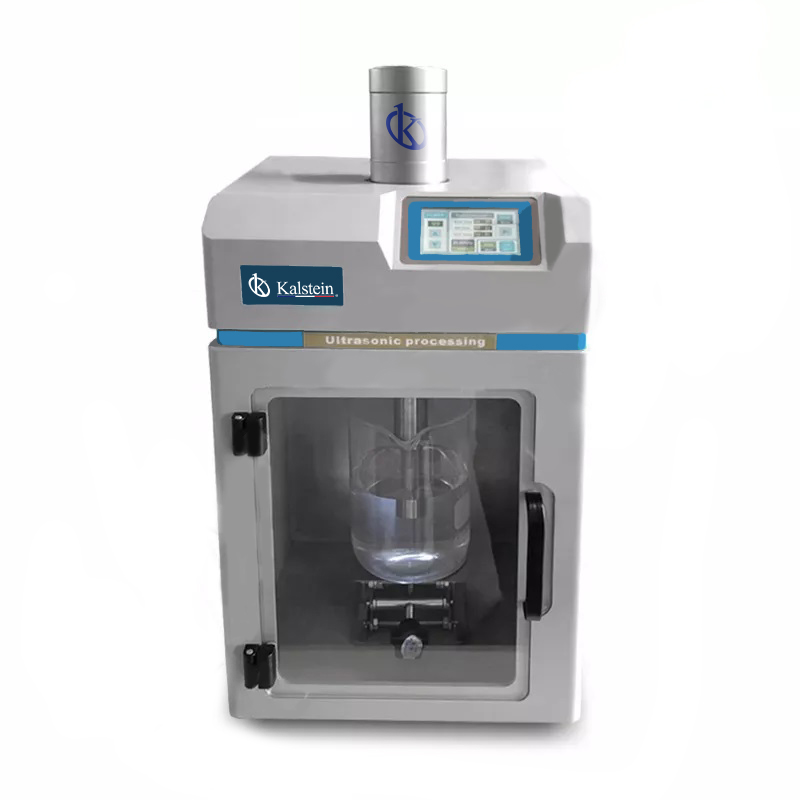

Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839

Manufacturer: Kalstein

Description

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 is an advanced laboratory tool designed to deliver precision and efficiency in processing solid-liquid samples. This ultrasonic equipment is renowned for its capabilities in cell lysis, emulsification, nanoparticle dispersion, and accelerating chemical reactions. Featuring an advanced digital interface and fully automated control, it allows users to adjust ultrasonic power from 0 to 100%, tailoring each process to the specific needs of the samples. The 3.2-inch LCD touch screen, coupled with the ability to store up to 8 data sets, ensures user-friendly operation and meticulous tracking.

Market Price

The market price for the Intelligent Digital Sonicator YR05837 // YR05839 ranges between $2300 and $3800 USD, based on configurations like optional probes, cooling systems, and the RS422 to USB software package. This reflects the advanced technology and high performance these models offer compared to other ultrasonic homogenizers.

Frequently Asked Questions

  • What types of samples can this device process?

It is ideal for a broad spectrum of samples, including animal and plant cells, nanoparticles, emulsions, and soil samples.

  • Is it safe for sensitive samples?

Yes, its precise power and temperature control prevent thermal or mechanical damage to delicate samples.

Advantages and Disadvantages

The YR05837 // YR05839 offers versatility, high precision, and automated safety features. It operates in continuous or pulse modes, with automatic frequency compensation ensuring consistent performance. However, its size might not suit laboratories with limited space, though the soundproof box significantly reduces noise during operation.

Field Use

This homogenizer is applied in various fields, including biotechnology, materials chemistry, and medicine. In molecular biology, it aids in DNA and protein extraction; in chemistry, it’s perfect for dispersing carbon nanotubes and advanced compounds. Its capacity to process volumes from 50 ml to 3000 ml makes it indispensable in research and industrial labs.

Recommendations

To ensure optimal performance and extend the equipment’s lifespan, regular maintenance is essential, such as cleaning the probes and checking the cooling system. For more information or to purchase, you are encouraged to request a quote or generate one automatically through our Kalstein Plus platform. Enhance the quality and accuracy of your experimental processes with state-of-the-art ultrasonic technology.

Features

  • Advanced digital interface with automated control.
  • Adjustable ultrasonic power (0-100%).
  • 3.2-inch LCD touch screen.
  • Capacity to store up to 8 data sets.
  • Continuous and pulse operation modes.

Technical Specifications

Model No. YR05837 YR05837-1
Working Frequency 19~25KHz Automatic compensation
Ultrasonic Power 950W 650W
Processing Capacity 100~1200ml 50~800ml
Power adjustable 0~100%
Timer LCD Touch screen, adjustable from 1s to 99h
Pulser Digital, closed loop, open loop, 1s to 99min to choose and set
Ultrasonic mode Pulse mode / Continuous mode
Standard Probe Φ13mm Φ6mm
Optional Probe Φ3/6/8/10/16/18mm Φ3/6/8/13/16mm
Energy Converter CV33, PZT lead zirconate titanate piezoelectric ceramics
Probe Material Titanium Alloy TI-6AL-4V
Cabinet lighting yes
Lifting table yes
Machine size 245*365*245mm
Sound Proof box size 240*250*390mm
Power Supply AC220/50Hz,110V/60Hz
Optional Configuration Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack

Additional information

Weight 9,9 kg
Modelo

YR05837, YR05837-1, YR05838, YR05839
