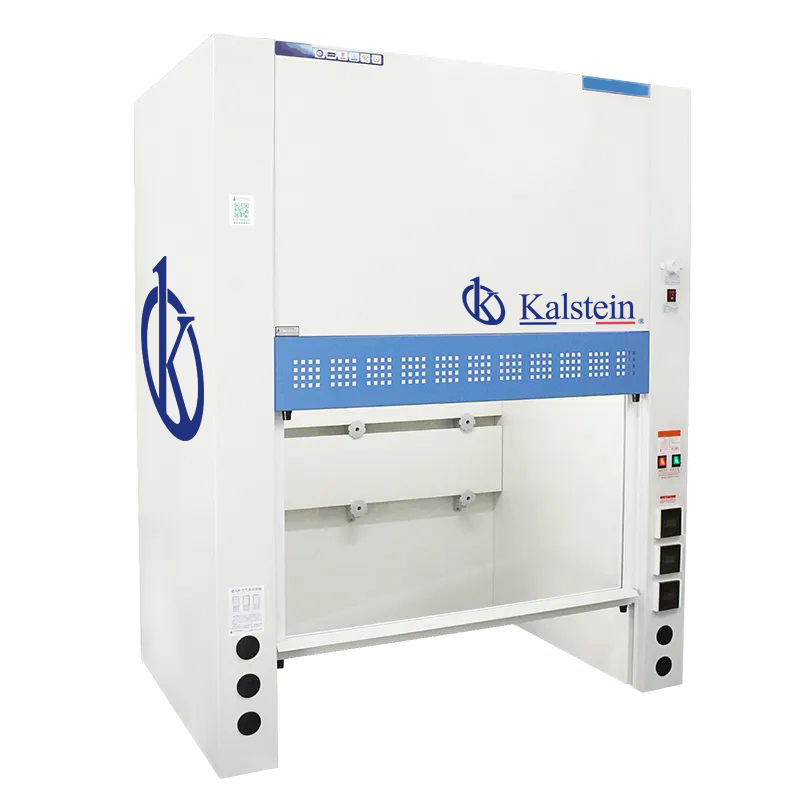

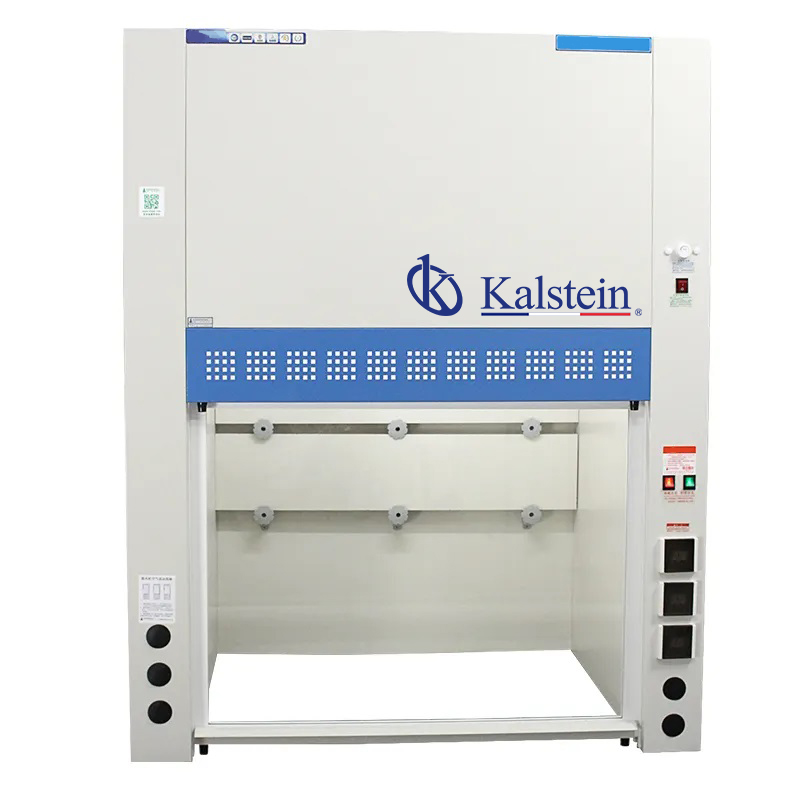

Desktop Fume Hood YR05866 // YR05868

Manufacturer: Kalstein

Description

The Desktop Fume Hood YR05866 // YR05868 is an essential piece of equipment designed to protect both the operator and the laboratory environment during general chemical applications. Designed with an adjustable axial flow blower and a tempered glass front window, this fume hood ensures a safe and efficient working environment by preventing the inhalation of toxic fumes and minimizing the risk of fires or explosions. Its use is ideal in laboratories, pharmaceutical industries, medical establishments, and educational settings where personnel safety is a priority. With a sturdy structure and reliable extraction system, this unit is the perfect choice for various professional applications.

Market Price

The price of the Desktop Fume Hood YR05866 // YR05868 may vary depending on the size and technical specifications, ranging between $1000 and $1300. This cost includes its adjustable extraction capacity, a low noise level (≤60dB), and its 5 mm tempered glass window, which provides enhanced safety during use. Investing in this fume hood is a strategic choice for laboratories seeking to ensure operational safety without compromising performance.

Frequently Asked Questions

  • Is the YR05866 // YR05868 Fume Hood difficult to operate?
    No, the fume hood is designed for ease of use, with manual controls to adjust the front window height and an integrated axial flow blower that allows for adjustable airflow speed.
  • What kind of protection does this fume hood provide?
    It offers active protection against toxic fumes, reducing the operator’s exposure to chemicals and minimizing the risk of fires or explosions.
  • What is the size of the fume hood?
    The size varies depending on the model, with external dimensions ranging from 1200x800x1500 mm to 1800x800x1500 mm, allowing it to fit different spaces and needs.

Advantages and Disadvantages

Key advantages of the Desktop Fume Hood YR05866 // YR05868 include its robust construction, low noise level (≤60dB), and the tempered glass front window, which enhances safety during operation. Additionally, its adjustable extraction speed allows it to adapt to different chemical substances. However, a potential downside is its slightly higher price compared to other fume hoods, which may be a factor for laboratories with tighter budgets.

Field Use

This fume hood is ideal for use in research laboratories, educational centers, and industrial environments where controlled and efficient ventilation is required. It is primarily used to protect operators from hazardous chemicals, providing effective and safe ventilation. Its compact design and adjustable height make it a versatile option for various applications, allowing a constant airflow that ensures safety and contaminant control.

Recommendations

To maximize the performance of the Desktop Fume Hood YR05866 // YR05868, regular maintenance is recommended, including cleaning the extraction system and checking the proper operation of the blower and window controls. Additionally, it is important to use the fume hood within the established airflow speed parameters (0.4~0.6m/s) to ensure optimal performance and prolonged lifespan.

Technical Specification

Model YR05866 YR05867 YR05868
External Size (W*D*H) (mm) 1200*800*1500 1500*800*1500 1800*800*1500
Internal Size (W*D*H) (mm) 950*700*1150 1250*700*1150 1550*700*1150
Work Surface Height 800mm
Max Opening of window 750mm
Air Velocity/Exhaust air volume 0.4~0.6m/s, 800-1000m3/h
Noise ≤60dB
LED Lamp 10W*1
Blower Built-in axial flow blower; Speed adjustable
Front Window Manual, 5mm toughened glass, height adjustable
Power Supply AC220V±10%, 50/60Hz
Power Consumption 85W

Additional information

Weight N/A
Modelo

YR05866, YR05867, YR05868
