Principle of Operation and Scientific Basis of the YR54-3 Water Purification System
The YR54-3 Water Purification System stands out as a compact and efficient solution for producing both pure and ultrapure water. Understanding its operational principles and scientific foundations not only enhances user experience but also ensures optimal performance in various applications.

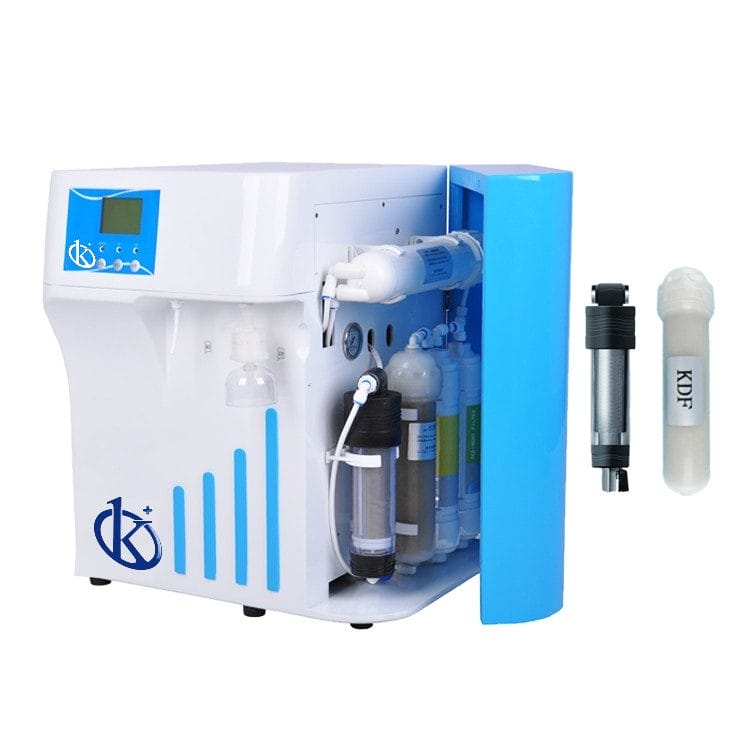

Overview of the YR54-3 Water Purification System
The YR54-3 integrates advanced technologies to eliminate the need for pretreatment of incoming water, providing a streamlined approach to water purification. This system employs multiple purification stages, which work together to achieve high levels of water purity. The efficiency of the YR54-3 relies on a combination of mechanical, thermal, and chemical processes.
Key Scientific Principles Behind the YR54-3
At the heart of the YR54-3 system are essential scientific principles that govern its operation:
- Reverse Osmosis (RO): This process utilizes a semipermeable membrane to remove ions, molecules, and larger particles from water. The high desalinization rate of 95-99% achieved by the YR54-3 ensures that the output water meets stringent laboratory standards.
- Conductivity Measurement: The system continuously monitors the conductivity of the feed water, which is a crucial indicator of water quality. The integrated high-precision conductivity sensors allow for real-time adjustments to maintain optimal purification processes.
- Temperature Compensation: Accurate temperature readings are vital for ensuring correct conductivity measurements. The YR54-3 employs platinum chip sensors that provide reliable data, enhancing the overall effectiveness of the purification process.
Design Choices and Their Implications
The YR54-3's design incorporates user-friendly features that simplify operation and maintenance:
- Simplicity of Operation: The system features only four control keys, streamlining user interaction. Automation through an integrated microprocessor control system greatly enhances usability.
- Quick Cartridge Replacement: The rapid connection design allows for easy replacement of purification cartridges, thus reducing downtime and maintenance efforts.
- Space-Saving Design: The compact structure allows for installation under a laboratory bench or directly on a wall, making it a versatile option for various laboratory settings.
Technical Data of the YR54-3
| Feature | Specification |
|---|---|
| Model | YR54-3 |
| Input Water Source | Urban tap water, input water pressure: 0.15-0.5MPa, water temperature 5-40°C |
| Water Flow Rate | 1.5-2L/min (with pressure barrel) |
| Machine Capacity | 30 L/H |
| Output Water Quality | RO water: desalinization rate as high as 95-99%, UP water resistivity 18.25MΩ.cm@25°C |
| Dimensions | 55 x 63 x 68 cm |
Frequently Asked Questions
What is the principal operation method of the YR54-3 Water Purification System?
The YR54-3 utilizes reverse osmosis as its primary method of purification. This technique effectively removes contaminants from water by forcing it through a semipermeable membrane, ensuring high purity levels.
How does the conductivity measurement work in the YR54-3?
The YR54-3 employs high-precision conductivity sensors that monitor the feed water continuously. This feature allows for real-time quality assessment and automatic adjustments to the purification process, optimizing the output quality.
What are the maintenance requirements for the YR54-3?
Maintenance for the YR54-3 is minimal due to its automated features. However, users should regularly check the feed water quality, replace cartridges as needed, and ensure that the conductivity sensors are functioning correctly.
Can the YR54-3 be installed in a small laboratory space?
Yes, the YR54-3 is designed with a compact structure that allows for installation under benches or on walls. Its space-saving design makes it suitable for labs with limited space.
What is the expected lifespan of the YR54-3 system?
The YR54-3 is built for durability and efficiency, with a typical lifespan of several years under normal operating conditions. Regular maintenance and timely replacement of consumables can extend its operational life.
Is there a specific way to calibrate the YR54-3 upon installation?
Calibration of the YR54-3 is typically straightforward due to its automated systems. Initial setup includes power-up sequence and validation of the first measurement, with detailed instructions provided in the user manual.
How does the YR54-3 ensure user safety during operation?
The YR54-3 incorporates several safety features, including leak sensors that detect water leaks and automatically shut off the water supply while activating an alarm. These features help prevent accidents and ensure safe operation.
