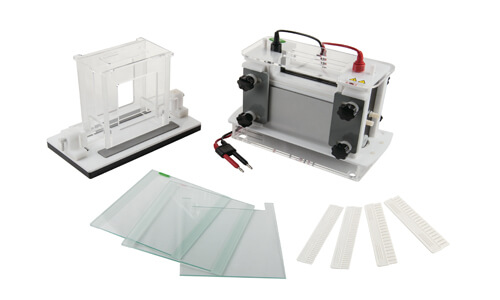

Understanding the Principle of Operation and Scientific Basis of the YR03432 Vertical Electrophoresis Tank
The YR03432 Vertical Electrophoresis Tank is a sophisticated laboratory equipment designed for the separation and analysis of proteins. This article delves into the fundamental principles that govern its operation, highlighting the scientific foundations that make it an essential tool in research and clinical laboratories.
How the YR03432 Functions
Electrophoresis functions on the principle of charged particles moving through a medium under the influence of an electric field. In the case of the YR03432, proteins are the primary focus. The tank utilizes gel electrophoresis to separate proteins based on their size and charge. When an electric current is applied, proteins move towards the anode or cathode, depending on their net charge. This movement allows researchers to analyze different proteins efficiently.
Before proteins can be separated, they must undergo denaturation to disrupt their quaternary structure, converting them into linear strands. This process is crucial for accurate separation since the native structure of proteins can hinder their migration through the gel matrix. The YR03432 is designed to facilitate this process, ensuring optimal conditions for protein analysis.
Key Design Features of the YR03432
The YR03432 features several design elements that enhance its performance during electrophoresis:
- Aluminum Plates: The tank is equipped with specialized aluminum plates that effectively dissipate heat during operation. This uniform heat distribution helps maintain a stable pH level, essential for consistent protein behavior during electrophoresis.
- Electric Field Influence: The design minimizes the risk of electroendosmosis, ensuring clear and straight electrophoresis bands.
- Modular Cassettes: The dual-core modular cassettes allow for easier sample handling and data collection, promoting a more convenient operational process.
- Retractable Connectors: Compatible with various power supplies, the retractable connectors enhance user flexibility.
- Temperature Control: The YR03432 can be paired with an external constant temperature circulator to control thermal conditions, further improving separation quality.
- Safety Design: A built-in safety feature automatically cuts power when the lid is removed, ensuring user safety during operation.
Technical Specifications of the YR03432
| Specification | Detail |
|---|---|
| Model | YR03432 |
| Gel Size (WxL) | 173x195 mm |
| Gel Thickness | 1, 1.5 mm |
| Well Comb Size | 21, 35 |
| Gel Capacity | 2 |
| Buffer Requirement | 2 x 200 ml |
Applications of the YR03432 in Protein Analysis
The YR03432 is primarily used in various applications related to protein analysis:
- Dimensional Electrophoresis: This function allows for the separation of complex protein mixtures based on both isoelectric point and molecular weight.
- Denaturing Gradient Gel Electrophoresis (DGGE): This technique is beneficial for analyzing genetic variations within complex samples.
- Preparative Gel Electrophoresis: The YR03432 is ideal for purifying proteins in preparation for further analysis or applications.
Understanding the Scientific Basis Behind Electrophoresis
Electrophoresis relies on the movement of charged particles within a gel matrix. The fundamental scientific principles include:
- Charge-to-Mass Ratio: The separation of proteins is influenced by their charge-to-mass ratio, which is crucial for determining their migration through the gel.
- Electric Field Strength: The strength of the electric field affects the speed of protein migration, with higher voltage typically resulting in faster migration.
- Buffer Composition: The ionic composition of the buffer used influences the conductivity and pH, directly affecting protein behavior during electrophoresis.
Comparative Analysis with Horizontal Electrophoresis Systems
Vertical electrophoresis setups, like the YR03432, have distinct advantages over horizontal systems:
- Higher Resolution: Vertical systems often provide better resolution due to the thinner gel and greater sample loading capabilities.
- More Versatile Applications: They are more suitable for separating a wide range of proteins and nucleic acids.
- Enhanced Heat Dissipation: Vertical designs typically have better heat dissipation, which is crucial for maintaining stable running conditions.
Frequently Asked Questions
What is the typical lifespan of the YR03432 Vertical Electrophoresis Tank?
The lifespan of the YR03432 typically ranges from 5 to 10 years, depending on the frequency of use and maintenance practices. Regular calibration and careful handling can extend its operational lifetime significantly.
How do I maintain the YR03432 for optimal performance?
To maintain the YR03432, ensure regular cleaning after each use, check for any wear on the gel plates, and calibrate the system periodically. Additionally, storing the tank in a controlled environment can prevent damage and ensure longevity.
Can the YR03432 be used for both protein and nucleic acid separation?
While the YR03432 is optimized for protein separation, it can also be used for nucleic acid separation. However, users should be aware that different conditions may be required for optimal results, such as adjustments in the gel composition and buffer used.
What safety features are included in the YR03432?
The YR03432 includes several safety features, such as automatic power cutoff when the lid is removed, ensuring that users are protected from electric shock during operation. Additionally, its design minimizes overheating risks.
What types of buffers are recommended for use with the YR03432?
Recommended buffers include Tris-Glycine and Tris-Acetate, as they provide optimal conditions for protein migration and separation. The choice of buffer will depend on the specific applications and types of proteins being analyzed.
How does the YR03432 compare to other electrophoresis systems?
The YR03432 is known for its superior resolution and heat management compared to horizontal systems. While horizontal systems are easier for beginners, the YR03432 offers greater versatility and is preferred for more advanced applications.
Where can I request a quote for the YR03432?
You can request a quote for the YR03432 directly from our sales team. We are here to assist you in finding the best options for your laboratory needs.
