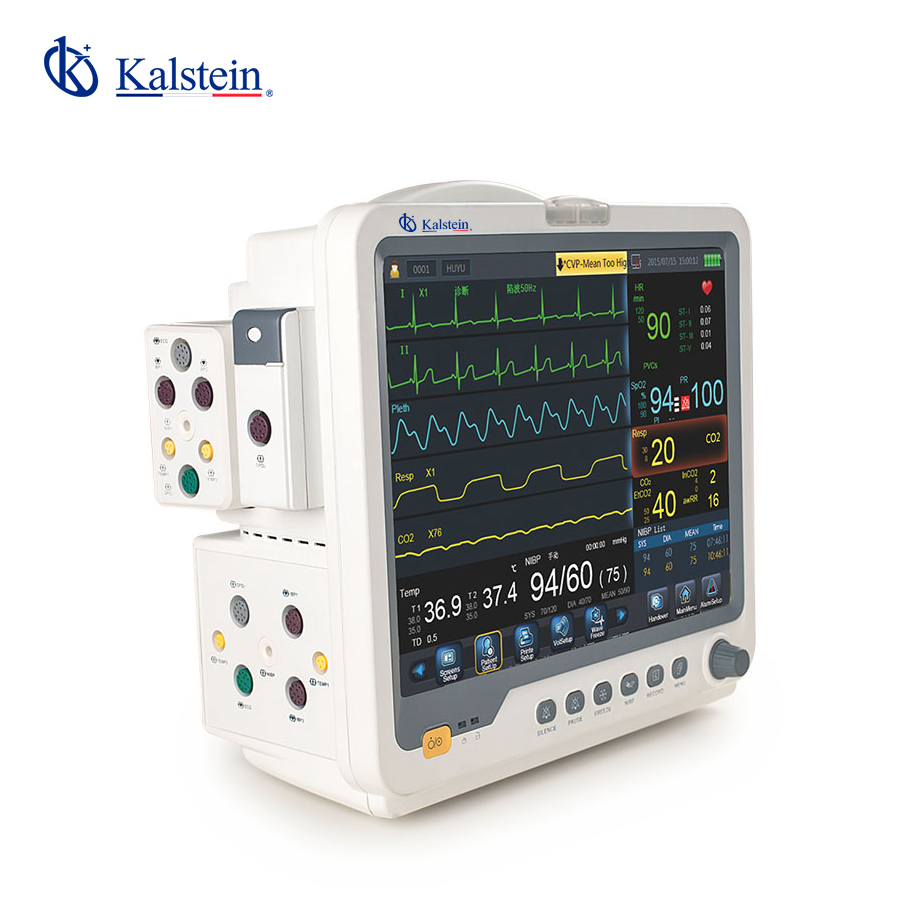

Understanding the Operating Principle and Scientific Foundation of the YR02179 Patient Multi-Parameter Monitor
The YR02179 Patient Multi-Parameter Monitor is an advanced medical device designed for monitoring multiple critical parameters of a patient's health. This article delves into the operating principles and scientific foundations of the YR02179, providing a comprehensive overview of how it functions and its importance in clinical settings.
Core Operating Principles of the YR02179
The YR02179 operates on several fundamental principles related to the measurement of physiological parameters. It employs various technologies to monitor parameters such as ECG, SpO2, temperature, NIBP (Non-Invasive Blood Pressure), respiration, and heart rate. The integration of these technologies allows for continuous patient monitoring, essential for timely interventions during critical care.
Electrocardiography (ECG)
One of the primary functions of the YR02179 is its ECG monitoring capability. It utilizes electrocardiographic principles by detecting the electrical activity of the heart through electrodes placed on the patient's body. The electrical signals are amplified and processed to provide real-time heart rhythm monitoring. The design of the ECG system includes:
- Lead Configuration: The YR02179 supports 5 leads (RA, LA, LL, RL, V) for comprehensive heart monitoring.
- Waveform Display: The device offers a clear display of the heart's electrical activity, allowing healthcare professionals to detect arrhythmias or other cardiac conditions.
Pulse Oximetry (SpO2)
The YR02179 incorporates pulse oximetry technology to measure blood oxygen saturation non-invasively. This is achieved through:
- Light Absorption: The device emits light at specific wavelengths that are absorbed differently by oxygenated and deoxygenated hemoglobin.
- Ratio Calculation: It calculates the ratio of absorbed light to determine the SpO2 level, providing crucial information about a patient's respiratory status.
Scientific Foundation Behind Temperature Measurement
The YR02179 utilizes thermistor-based technology for temperature measurement, which operates based on the principle that the resistance of certain materials changes with temperature. Key aspects include:
- Measurement Range: The device measures temperature from 0 to 50 degrees Celsius with a resolution of 0.1 degrees Celsius.
- Accuracy: The temperature measurement has an accuracy of ±0.1°C, ensuring reliable readings that are critical in monitoring a patient’s condition.
Understanding NIBP Monitoring Technology
The Non-Invasive Blood Pressure (NIBP) monitoring in the YR02179 employs oscillometric measurement techniques. Here’s how it works:
- Oscillometric Method: The device detects fluctuations in cuff pressure and calculates systolic, diastolic, and mean arterial pressure based on these oscillations.
- Measurement Modes: The YR02179 can operate in manual, automated, and STAT modes, allowing flexibility according to clinical needs.
Respiration Rate Monitoring
The respiration rate measurement is achieved using impedance pneumography, which analyzes the changes in electrical impedance caused by the movement of air in the lungs. This section covers:
- Impedance Measurement: The device evaluates the difference in impedance between electrodes placed on the patient's body during the respiratory cycle.
- Range and Accuracy: The YR02179 can measure respiratory rates between 7 to 120 breaths per minute for adults and 7 to 150 for pediatric patients, with an accuracy of ±2 breaths per minute.
Technical Data of the YR02179
| Model | YR02179 |
|---|---|
| Brand | Kalstein |
| Category | Patient Monitor |
| Price (USD) | 1375.00 |
| Gross Weight | 7 kg |
| Dimensions | 42.5 x 32 x 41 cm |
Frequently Asked Questions
What is the significance of ECG monitoring in the YR02179?
ECG monitoring in the YR02179 allows clinicians to assess the heart’s rhythm and electrical activity, which is vital for diagnosing cardiac conditions and determining appropriate treatments.
How accurate is the SpO2 measurement in the YR02179?
The SpO2 measurement in the YR02179 has an accuracy of ±2% for saturation levels between 70% and 99%, ensuring reliable data for respiratory assessments.
What are the different modes of NIBP monitoring available in the YR02179?
The YR02179 features multiple NIBP monitoring modes, including Manual, Auto, and STAT modes, catering to the varying needs of clinical situations for blood pressure assessment.
How does the YR02179 ensure accurate temperature measurements?
The YR02179 employs thermistor technology, which is designed to provide accurate temperature readings with a resolution of 0.1°C and an accuracy of ±0.1°C.
What range of respiratory rates can the YR02179 monitor?
The YR02179 can monitor respiratory rates from 7 to 120 breaths per minute for adults and from 7 to 150 for pediatric patients, making it suitable for diverse clinical applications.
How does the YR02179 display measured parameters?
The device features a user-friendly LCD display that shows various parameters such as ECG, SpO2, temperature, NIBP, respiration, and heart rate, allowing for quick assessments by healthcare professionals.
If you are interested in acquiring the YR02179, please request a quote for detailed pricing and options.
