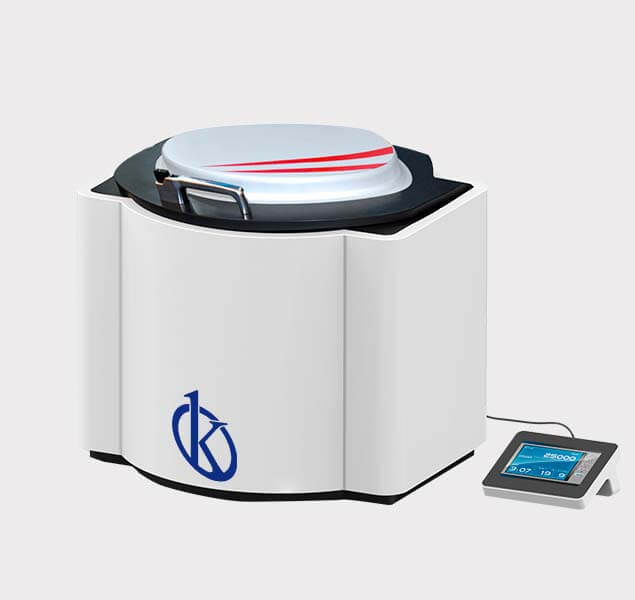

Microwave Digestion System YR04958: Integrating Field Processes
The Microwave Digestion System YR04958 is a state-of-the-art device designed to enhance laboratory operations through efficient sample digestion, particularly beneficial for various field processes. This advanced system incorporates several innovative features aimed at ensuring the integrity and accuracy of the analytical results while minimizing risks associated with sample handling and digestion.
Product Description
The YR04958 model offers a special design for sample digestion vessels, equipped with patented automatic ventilation and self-sealing structures. This ensures that the digestion vessels can automatically release pressure and reseal instantly during sudden overpressure situations, thereby preventing sample loss and vessel damage.
Temperature and Pressure Monitoring System
The advanced non-contact IR sensor measures the real-time temperature of the sample solutions in each digestion vessel, while the non-contact pressure sensor continuously monitors the pressure in real-time. This separation between the temperature and pressure control systems mitigates cross-contamination risks, displaying all temperature and pressure values throughout the digestion process for clear verification of digestion conditions.
Large Storage Capacity
The system can edit and store up to 255 program types according to user requirements, allowing for individual parameter settings (temperature, pressure, time, microwave power) tailored to specific needs, thus facilitating user operations.
Safety Protection System
Featuring a high-strength double-lock safety door, real-time monitoring of temperature and pressure, automatic adjustments for overpressure and over-temperature, along with abnormal sound monitoring, this device operates within a highly secure environment.
Power Adjustment
The continuous rotation mode with variable frequency or pulse-less options guarantees uniform and efficient microwave performance, configurable between 0-3000W as per user specifications.
Quality Components
- *Continuous 360° rotor ensures consistent and complete digestion, significantly reducing motor wear and extending its lifespan.
- The 7-inch color LCD touchscreen displays real-time temperature, pressure, work time, and trend curves.
- The sample digestion vessel material is imported TFM, while the outer protective vessel is made from PEEK and fiberglass, resistant to high temperatures, pressures, and acids.
Technical Specifications
| Model | YR04957 | YR04958 (current) |
|---|---|---|
| Number of Vessels | 12 | 18 |
| Air Exhaust | High-power corrosion-proof air blower | |
| Protective Vessel Material | PEEK + fiberglass | |
| Rotation | Continuous 360° rotation in one direction | |
| Microwave Tank | 316L stainless steel tank with corrosion-resistant coating | |
| Volume per Vessel | 100ml | |
| Sample Vessel Material | Imported TFM | |
| Microwave Leakage | <5 mw/cm2 | |
| Power Supply | AC 220V±10%, 10A, 50/60Hz | |
| Display | 7-inch color touchscreen | |
| Pressure Monitoring System | Non-contact pressure sensor monitoring | |
| Pressure control for each vessel | ||
| Pressure control range: 0-10MPa | ||
| Pressure accuracy: ±0.01MPa | ||
| Display accuracy: ±0.01MPa | ||
| Temperature Monitoring System | Non-contact IR temperature sensor monitoring | |
| Temperature control for each vessel | ||
| Temperature control range: 50-400°C | ||
| Temperature accuracy: ±0.3°C | ||
| Display accuracy: ±0.1°C | ||
| Microwave Power | 0-2000W (adjustable) | |
| Dimensions (L×W×H) | 640×630×590mm | |
| Weight | 70KG/75KG | |
Market Price
The current market price for the Microwave Digestion System YR04958 is approximately $13,500. This pricing reflects the high-quality materials used, innovative features, and advanced technology integrated into the system, making it a worthy investment for laboratories focused on efficiency and precision in sample digestion processes.
Frequently Asked Questions
What is the maximum temperature the Microwave Digestion System YR04958 can reach?
The system can achieve a maximum temperature of 400°C.
How many sample vessels does the YR04958 accommodate?
The YR04958 can accommodate up to 18 sample vessels for digestion.
Is the system safe to operate?
Yes, it includes a high-strength double-lock safety door, real-time monitoring of temperature and pressure, and other safety measures to prevent hazards.
What type of power supply is required for the YR04958?
The Microwave Digestion System requires an AC power supply of 220V±10%, 10A, and operates at 50/60Hz.
Can I adjust the microwave power settings?
Yes, the microwave power is adjustable between 0 to 2000W to meet specific user requirements.
What materials are used in the construction of the digestion vessels?
The digestion vessels are made from imported TFM, while the protective outer vessel uses PEEK and fiberglass.
How can I request a quote for the YR04958?
To request a quote, you can contact our sales team for personalized assistance and further information.
Pros and Cons
Understanding the advantages and disadvantages of the Microwave Digestion System YR04958 can help potential buyers make informed decisions.
- Pros:
- High capacity for sample vessels (up to 18).
- Real-time monitoring of temperature and pressure.
- Automatic pressure release and reseal features enhance safety.
- Customizable settings for various digestion methods.
- Durable construction using high-quality materials.
- Cons:
- Higher initial investment compared to simpler systems.
- Requires trained personnel for optimal usage and maintenance.
Field Usage
The Microwave Digestion System YR04958 is designed for a variety of applications in fields such as environmental testing, food safety analysis, and material science. Its ability to efficiently digest samples minimizes the risk of contamination and ensures that analytical results are accurate and reliable. The system's integration into field processes allows it to be used in remote locations where traditional digestion methods may not be feasible.
Recommendations
For laboratories looking to enhance their sample digestion processes, the Microwave Digestion System YR04958 is highly recommended due to its innovative features and high safety standards. It is crucial to ensure that all users are adequately trained and that the system is regularly maintained for optimal performance. Furthermore, consider integrating this system into a laboratory management protocol to maximize its capabilities and streamline workflow.
