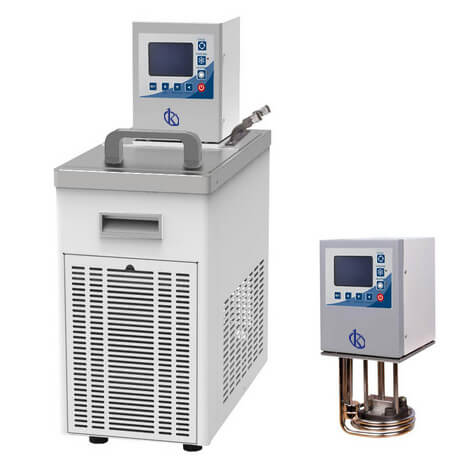

Interpreting Results and Reading Measurements of the YR04988 Circulating Bathroom Cooling and Heating Unit
The YR04988 Circulating Bathroom Cooling and Heating unit is an essential tool for maintaining a stable liquid temperature in various laboratory settings, including electronic component testing, chemical synthesis, and life sciences experiments. This article provides a comprehensive guide on how to interpret the results and read the measurements accurately for optimal performance and reliability.
Understanding the Functionality of the YR04988
The YR04988 model provides a temperature control range of -20 °C to 100 °C with a stability of ±0.05 °C, making it suitable for sensitive experiments where precise temperature control is critical. The unit utilizes a PID (Proportional-Integral-Derivative) control system, which continuously calculates an error value as the difference between a desired setpoint and a measured process variable. The PID controller attempts to minimize the error by adjusting the process control inputs.
Technical Specifications of the YR04988
| Model | Temperature (°C) | Stability (°C) | Flow (L/min) | Lift (m) | Capacity (L) | Opening (mm) | Depth (mm) | Product Size (WxDxH) |
|---|---|---|---|---|---|---|---|---|
| YR04988 | -20~100 | ±0.05 | 14 L/min | 12 | 10 | 160x140 | 180 | 450 x 360 x 820 |
Measurement Units and Normal Ranges
Understanding the measurement units used in the YR04988 is critical for accurate interpretation of results. The primary unit of measurement is degrees Celsius (°C) for temperature, with the unit designed to maintain precision within a narrow range. The YR04988 operates efficiently in scenarios demanding high accuracy, such as biochemical assays, where even a minor deviation can lead to erroneous results.
Additionally, the pressure and flow rates, measured in liters per minute (L/min), are essential parameters that affect the overall performance of the cooling and heating system. The stability of ±0.05 °C ensures that the temperature remains consistent, which is crucial for experiments requiring fixed conditions.
Common Misinterpretations of Measurements
When operating the YR04988, users may encounter misinterpretations of the readings displayed on the unit. One common error involves confusing the set temperature with the actual liquid temperature. It is important to understand that the displayed temperature may take a short while to stabilize after adjustments are made.
Another frequent misinterpretation is related to the flow rate readings. Users may assume that a higher flow rate equates to better performance; however, it is essential to match the flow rate with the specific requirements of the experiment to avoid turbulence or unwanted reactions in the liquid medium.
Best Practices for Accurate Measurements
To ensure accurate readings and reliable results with the YR04988, consider the following best practices:
- Calibration: Regularly calibrate the unit to maintain accuracy. A proper calibration ensures that displayed values align with actual temperatures.
- Temperature Stabilization: Allow sufficient time for the temperature to stabilize before taking measurements. This period allows for equilibrium within the system.
- Monitor Alarms: Pay attention to the low water level and overheating alarms. These alerts are vital for preventing equipment damage and ensuring valid readings.
- Use Proper Connectors: Ensure that all connections are secure to avoid leaks or flow disruptions, which can lead to inaccurate results.
Troubleshooting Common Issues
Identifying and resolving issues with the YR04988 is crucial for maintaining its functionality. Here is a troubleshooting guide that categorizes symptoms, probable causes, and solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply issue | Check power source and connections. |
| Inconsistent temperature readings | Calibration drift | Recalibrate the unit. |
| Flow rate is lower than expected | Clogged pump or tubing | Inspect and clean tubing and pump. |
| Overheating alarm triggered | Insufficient water level | Add water to the appropriate level. |
Frequently Asked Questions
What is the optimal temperature range for the YR04988?
The optimal temperature range for the YR04988 is between -20 °C to 100 °C, which allows it to be used in various laboratory experiments where precise temperature control is required.
How can I ensure accurate calibration of the YR04988?
Regular calibration should be performed using a certified thermometer to compare readings against the set temperature. Adjustments may be necessary to align the readings accurately.
What maintenance is required for the YR04988 unit?
Routine maintenance includes checking for leaks, ensuring proper water levels, and cleaning any clogged connectors or tubing. Regular inspections help to prolong the lifespan of the unit.
How do I handle error codes on the YR04988?
Refer to the user manual for a list of error codes and their meanings. Identifying the specific error can aid in diagnosing the problem and implementing the appropriate solution.
Can the YR04988 be used in food testing laboratories?
Yes, the YR04988 can be effectively used in food testing laboratories for maintaining controlled temperatures during testing and analysis.
What are the dimensions of the YR04988 model?
The dimensions of the YR04988 are 450 x 360 x 820 mm, making it a compact unit suitable for various laboratory spaces.
Is there a warranty for the YR04988? What does it cover?
Yes, the YR04988 comes with a standard warranty that covers manufacturing defects. The warranty terms can be found in the user manual or warranty document provided with the unit.
