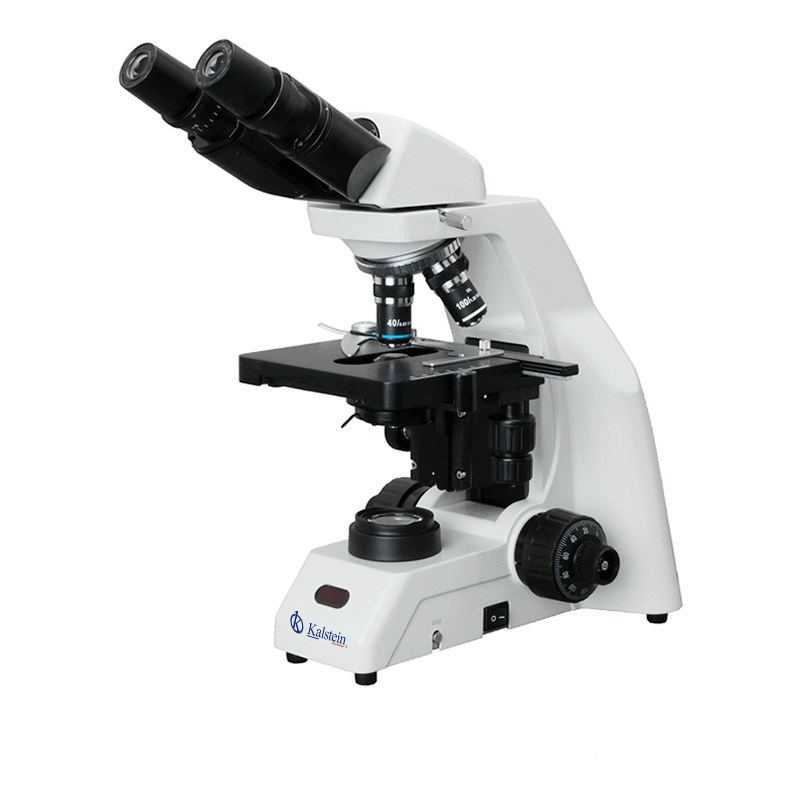

Interpreting Results and Measurement Readings with the YR0239-1 Microscope
The YR0239-1 microscope is an advanced instrument designed for precise observation and analysis in various laboratory settings. Understanding how to effectively interpret results and measurement readings is crucial for obtaining reliable data. This guide aims to provide in-depth insights into the operational features of the YR0239-1, enabling users to maximize its capabilities.
Overview of the YR0239-1 Microscope
The YR0239-1 microscope features a sophisticated optical system that enhances clarity and detail in observed specimens. Its trinocular viewing head allows for comfortable observation, while the adjustable interpupillary distance ensures optimal alignment for different users. The microscope is equipped with a dark field condenser, which improves the visibility of transparent specimens by enhancing contrast.
Technical Specifications of the YR0239-1
| Specification | Details |
|---|---|
| Model | YR0239-1 |
| Optical System | Finite optical system |
| Eyepiece | WF10X/18 |
| Viewing Head | Seidentopf binocular head, inclined at 30°, interpupillary distance 47-78 mm |
| Focusing System | Coaxial coarse and fine adjustment, fine division of 0.002 mm, mobile range of 25 mm |
| Condenser | Dark field condenser (dry, oil) |
Understanding Measurement Readings
When using the YR0239-1, interpreting measurement readings accurately is critical to obtaining valid results. Measurements can vary based on multiple factors, including specimen preparation and the type of illumination used. Users should familiarize themselves with the microscope's settings and understand how these affect the observed data.
Measurement scales on the eyepieces provide a means of quantifying observations. It's essential to calibrate the microscope properly to ensure that measurements are accurate. Regular calibration checks should be performed to maintain precision, especially when the instrument is used frequently in varying conditions.
Common Misinterpretations of Results
Interpreting microscope results can sometimes lead to misinterpretations. For example, a lack of visibility in certain specimens may be incorrectly attributed to the microscope's capabilities rather than the specimen's properties. Users should be aware of common pitfalls, such as:
- Assuming low visibility indicates poor microscope performance when it may instead reflect an issue with specimen preparation.
- Misreading scales due to incorrect eyepiece settings or calibration errors.
- Overlooking the impact of environmental factors, such as lighting and temperature, on measurement accuracy.
Best Practices for Accurate Measurements
To ensure accurate readings from the YR0239-1 microscope, users should adhere to best practices:
- Regularly calibrate the microscope using known standards to validate measurements.
- Prepare specimens adequately, ensuring they are clean and free of artifacts.
- Utilize proper lighting techniques, adjusting the illumination based on the type of specimen being observed.
- Record measurements systematically, noting any adjustments or observations that may impact results.
Sector Adaptations for the YR0239-1 Microscope
The YR0239-1 microscope can be tailored for various sectors, enhancing its versatility. In clinical laboratories, it is employed for detailed cellular analysis, while in educational settings, it serves as a teaching tool to demonstrate microscopy principles. Each sector may require specific configurations and use cases:
| Sector | Applications | Recommended Protocols |
|---|---|---|
| Clinical | Cell analysis, pathology | Staining techniques, calibration |
| Educational | Demonstration, student labs | Hands-on exercises, guided observations |
| Industrial | Quality control, material analysis | Standard operating procedures for inspections |
| Veterinary | Sample evaluation, diagnostics | Sample preparation, reporting results |
Frequently Asked Questions
How do I calibrate the YR0239-1 microscope for accurate measurements?
To calibrate the YR0239-1 microscope, use a calibration slide with known measurements. Align the scale in the eyepiece with the calibration slide and adjust until readings match. This process should be done before each significant use.
What types of specimens are best suited for the YR0239-1 microscope?
The YR0239-1 is versatile and can handle a range of specimens including biological samples, industrial materials, and educational slides. Transparent specimens benefit greatly from the dark field condenser, enhancing visibility and contrast.
Can the YR0239-1 microscope be used for fluorescence microscopy?
While the YR0239-1 is primarily designed for standard and dark field microscopy, it can be adapted for fluorescence microscopy with the appropriate accessories. This allows for the observation of fluorescently labeled specimens.
What maintenance is required for the YR0239-1 microscope?
Regular maintenance includes cleaning the optical components, checking the alignment, and ensuring the adjustment mechanisms function smoothly. Periodic professional servicing is recommended to uphold performance standards.
What is the expected lifespan of the YR0239-1 microscope?
The YR0239-1 microscope is designed for durability, with a typical lifespan of 10 years or more, depending on usage and maintenance. Regular care can prolong its operational life significantly.
What are the common error codes associated with the YR0239-1 microscope?
Error codes may indicate issues such as misalignment, calibration errors, or mechanical failures. Refer to the user manual for a comprehensive list of error codes and their meanings.
How can I request a quote for the YR0239-1 microscope?
To request a quote for the YR0239-1 microscope, please contact our sales team directly for personalized assistance and pricing information.
