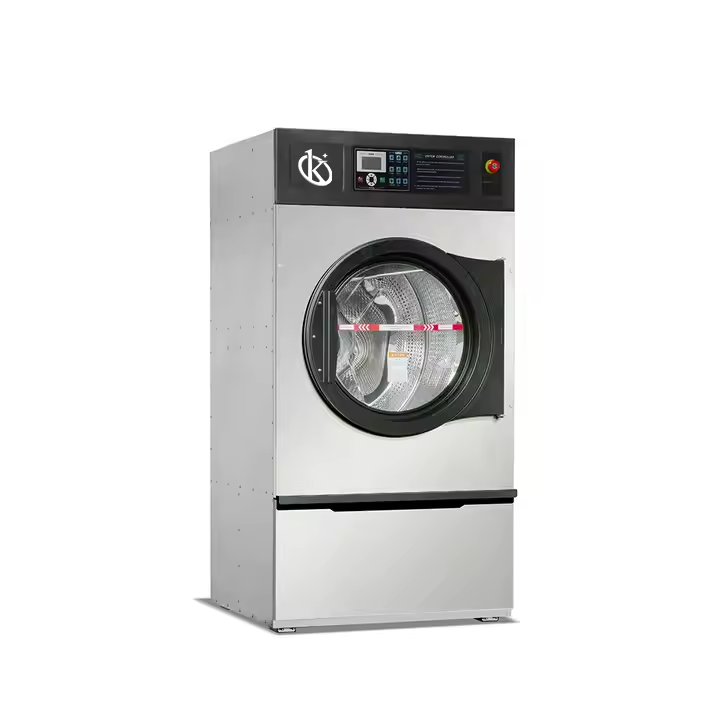

Installation and Startup Guide for the YR06304 Tumble Dryer
The YR06304 Tumble Dryer is designed for efficiency and safety, featuring advanced technology and a robust design. This guide aims to assist users in the successful installation and initial setup of the YR06304, ensuring optimal performance in various applications.
Unboxing and Initial Inspection
Upon receiving the YR06304 Tumble Dryer, it is essential to conduct an initial inspection. Ensure the packaging is intact and free from damage. Open the box and carefully remove the unit along with its accessories. Check for the following components:
- Tumble Dryer Unit
- User Manual
- Power Cord
- Installation Hardware
Verify that all parts are included as per the provided checklist in the user manual. If any components are missing or damaged, contact the supplier immediately.
Site Requirements and Preparation
Before installation, it is crucial to assess the site where the YR06304 will be placed. The following site requirements should be met:
- Ensure adequate ventilation to prevent overheating.
- Verify that the power supply matches the unit specifications (220/380 V).
- Prepare for drainage if using steam functionality.
Make sure the area is stable and level to avoid operational problems and ensure safety.
Installation Steps
Follow these steps for a proper installation:
- Position the Dryer: Move the YR06304 Tumble Dryer into the prepared area, ensuring it is level.
- Connect Power Supply: Plug the power cord into the suitable electrical outlet.
- Connect Drainage (if applicable): Ensure proper connections to the drainage system if steam is used.
- Check for Stability: Make sure the unit is stable and all legs are firmly in place to prevent movement during operation.
First-Time Calibration and Startup
After installation, it is essential to calibrate the tumble dryer before the first use. Follow these procedures:
- Power Up: Turn on the power switch. Observe the startup sequence to ensure all systems are functioning correctly.
- Set Temperature: Use the control panel to set the desired drying temperature.
- Run a Test Cycle: Initiate a short drying cycle with a few test items to ensure all functions are operating correctly.
Monitor the dryer during the test cycle for any unusual noises or error codes.
Technical Specifications of the YR06304
| Specification | Detail |
|---|---|
| Model | YR06304 |
| Capacity | 15 kg |
| Drum Dimension | 750 x 670 mm |
| Drum Volume | 296 L |
| Motor Power | 55 kW |
| Fan Power | 55 kW |
| Electric Heating Power | 15 kW |
| Steam Pressure | 0.4-0.5 Mpa |
| Voltage | 220/380 V |
| Dimensions | 340 x 1200 x 1560 mm |
| Weight | 330 kg |
| Powered | Electrical / Gas |
| Material | Stainless Steel / Coated |
Common Installation Issues and Troubleshooting
During the installation of the YR06304, users may encounter various issues. Here are common problems and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply issues | Check connections, verify voltage. |
| Error code on display | Operational malfunction | Refer to the user manual for error code definitions and solutions. |
| Inconsistent drying results | Improper calibration | Re-calibrate settings and test again. |
| Excessive noise during operation | Unbalanced load | Ensure the load is evenly distributed in the drum. |
Frequently Asked Questions
What is the maximum load capacity of the YR06304 tumble dryer?
The YR06304 has a maximum load capacity of 15 kg, making it suitable for large loads and efficient drying.
How do I perform maintenance on the YR06304?
Regular maintenance involves cleaning the lint filter, checking for blockages in the ventilation system, and ensuring that the drum is free of debris.
Can the YR06304 be used for both electric and gas heating?
Yes, the YR06304 is designed to support both electric and gas heating methods, allowing flexibility in operation based on available resources.
What safety features are included in the YR06304?
The YR06304 includes temperature control devices and a mechanism to prevent overheating, ensuring safe operation during use.
Is there a warranty for the YR06304 tumble dryer?
Yes, the YR06304 comes with a manufacturer’s warranty. Details can be found in the user manual or by contacting customer service.
What should I do if I encounter an error code?
Refer to the user manual for troubleshooting specific error codes, which provides guidance on identifying and resolving issues.
How can I request a quote for the YR06304?
You can request a quote by contacting our sales team directly for pricing and availability of the YR06304 tumble dryer.
